Doughty Modular Drop Arm Tee ⌀48mm for Stage Lighting Rigging
£71.34
Doughty Modular Drop Arm Tee ⌀48mm for Stage Lighting Rigging
£85.61incl. VAT
Incl. VAT. Shipping calculated at checkout.
In stock
Shipping 3–7 days
Minimum order value of £45
Minimum order value of £45 is required to place an order for all Doughty products.
1 Year Warranty
Colour:
Silver
Size:
250mm
- Flexible Rigging. Supports safe and adaptable lighting setups - part of the award-winning Doughty Modular Rigging System.
- Size Options. Available in two lengths for tailored adjustments - choose between 250mm and 500mm configurations.
- Enhanced Stability. Provides a rigid connection between drop arm and truss/barrel - engineered for high-demand environments like TV and live events.
- Safety-First Design. Features a slot for added safety bonding - ensuring secure lighting installations in all professional applications.
- Compatible Construction. 450mm width fits most major brand moving lights - perfect for photographers, theatres, and film productions.
klarna.
Add an item to see installment options
Modular Drop Arm - Small Tee
Award-winning Stage Lighting System
These Modular Drop Arms are parts of the Doughty award-winning Modular Rigging System, offering a safe and flexible rigging method for suspension.
The Modular drop arm tee comes in two sizes -250mm and 500mm. They can be used at the lower end of a drop arm assembly to attach lights. Also, they can be used at the top of a drop arm assembly enabling two pipe-to-pipe couplers for a suspension to create a much more rigid connection between drop arm and truss/barrel.

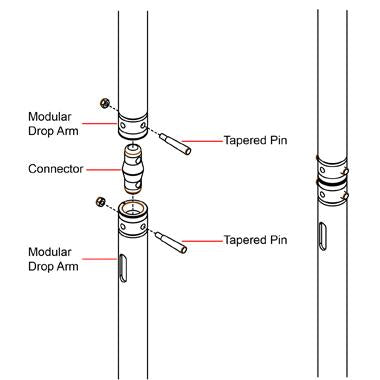

Modular tees are manufactured from aluminium with a female tapered connector. A Slot is provided for a safety bond. Connections are made with Doughty T45755 connector. These Tees are 450mm wide to suit most major brand moving lights.
Widely used in the TV, film, photographic and other industries. For any inquiries, please contact us via chat.

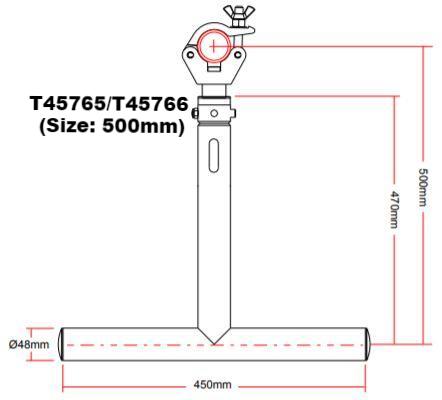

Specifications:
- Size: 250mm and 500mm
- SWL: 100kg
- Diameter: 48mm
- Width: 450mm
- Material: Aluminum
- Finish: Powder-painted in silver or satin black
Products you need to create lighting trees/ladders:
- Coupler with Half Connector(48mm): To connect drop arms to a piece of truss with a diameter of 48mm
- Drop Arm Tee with Through Connector: To allow lanterns to be mounted on and connect drop arms to form a large frame
- Connector
- Drop Arm Extension (Adjustable or Standard): To link one tee with through connector to another one to form a large lighting tree
- Safety Bond (Secondary suspension device)
- Drop Arm Tee Extension: To allow lanterns to be mounted on
