Ceep Connectors- 7-Pin Hoist (Plug & Extender)
Product No. 920137Y000SG20
- Free shipping over £200
- No customs charges
- Estimate shipping: £8.8 - £13
- BREXIT-proof shipping: 6-12 days as standard
- If your order isn't right ➜Get a return label
Shipping calculator
Payment methods
Shipping information
- Free shipping over £200
- No customs charges
- Estimate shipping: £8.8 - £13
- BREXIT-proof shipping: 6-12 days as standard
- If your order isn't right ➜Get a return label
Product details

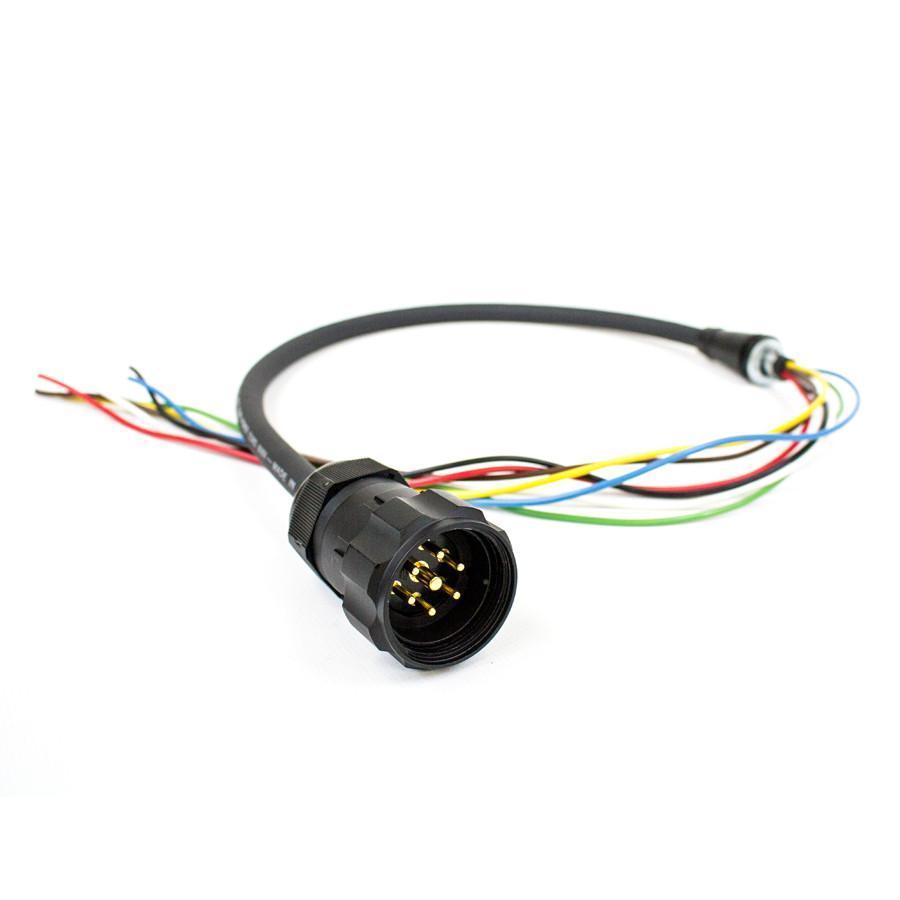

Ceep Connectors - 7Pin Hoist (Male & Female)
Our 7 pin hoist connectors are used to on motor (fly) cables and provide both power and control to hoist. Renowned within the entertainment industry for their high quality and reliability. They feature a robust aluminium alloy shell, a hard non-conductive, non-corrosive coating, IP67 waterproof protection, a mono piece backshell, a tough PPS Plastic insulator, spring retained gold plated contacts and are compatible with all other leading brands.
They are the ideal choice for applications where a secure, robust and watertight connection is required.
At MTN SHOP, we supply Ceep's 7-pin male straight plugs and female extenders. They are both available in 2 different sizes of the cable gland.
Technical Data: Male Connector & Female Connector
Male Straight Plugs:
- Size of adjustable cable gland: 11-21mm, 18-25mm
- Length: min.84mm, max. 88mm
- Working current: 25 A (Ø3) / 50 A (Ø5)
- Wire Section: up to 5.1 mm (Ø 3) / 13 mm (Ø 5)
Female Extenders:
- Size of adjustable cable gland: 11-21mm, 18-25mm
- Length: min.81mm, max. 85mm
- Working current: 25 A (Ø3) / 50 A (Ø5)
- Wire Section: up to 5.1 mm (Ø 3) / 13 mm (Ø 5)
