Floor Plates & Wall Brackets

Doughty Floor Plates and Wall Brackets for Stage and Studio Rigging

Doughty floor plates and wall brackets are used to anchor lighting bars, boom poles, truss sections and rigging structures to floors, walls and ceilings in theatres, TV studios, film sets and permanent venue installations. They provide a stable, fixed mounting point for structures that cannot be hung from overhead bars, including ground-supported booms, wall-mounted lighting bars and permanent studio grid systems. All products are manufactured by Doughty Engineering to professional entertainment industry specification.

Wall Brackets and Wall Hangers

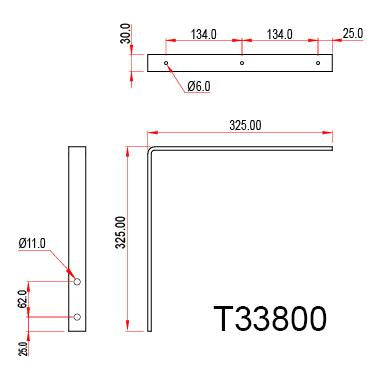

• Doughty Wall Brackets for Concerts and Stages: light duty and heavy duty versions for mounting horizontal lighting bars to walls in theatres, concert venues and studios.

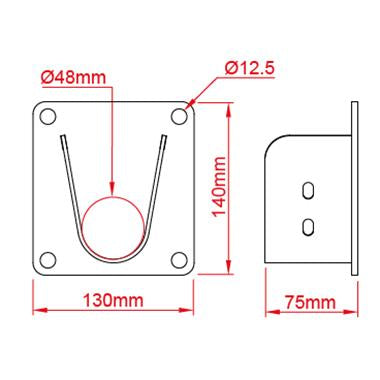

• Doughty 48mm Wall Hanger: for hanging a 48mm lighting bar from a wall. Available in silver and black.

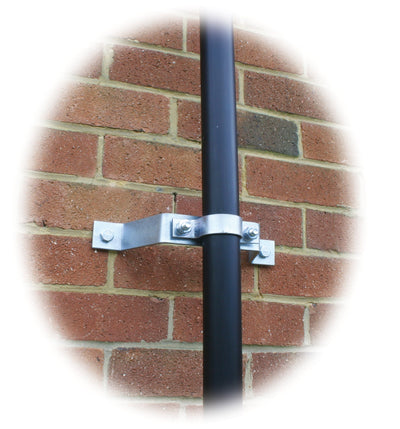

• Doughty Pipe to Wall Brackets (Steel): steel brackets for mounting a 48mm tube to a wall with 100mm or 300mm standoff.

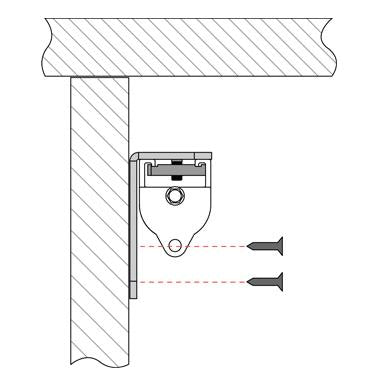

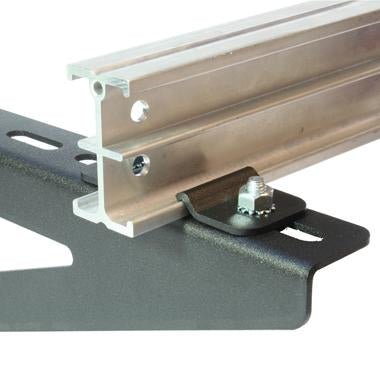

• Doughty Rail Wall Bracket (Steel): for mounting Doughty Rail curtain track to a wall.

Ceiling and Grid Mounting

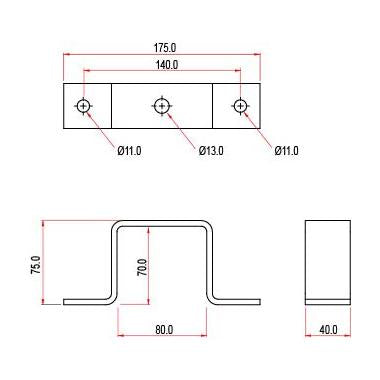

• Doughty Ceiling Saddle: for mounting a 48mm tube to a ceiling joist or beam for low-level and permanent ceiling installations.

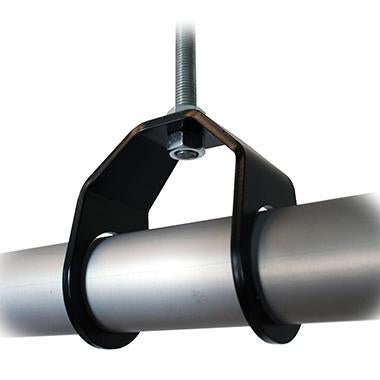

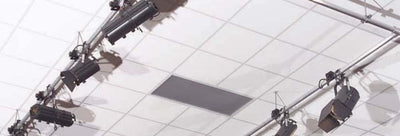

• Doughty Grid Hanger: for suspending lighting bars and grid systems from overhead structures using threaded studding. Available in steel and black.

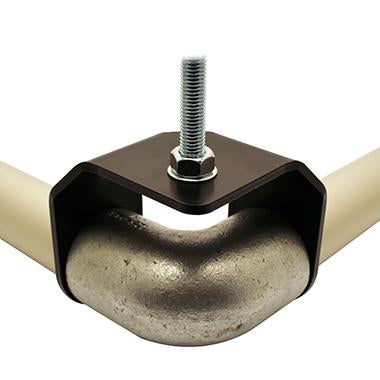

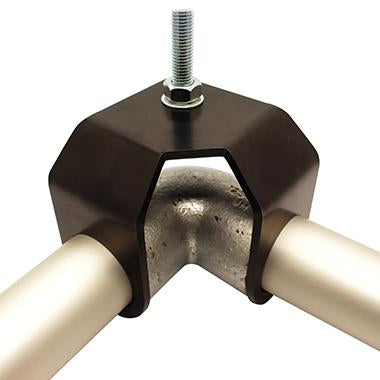

• Doughty Grid Hanger Corner: corner version for creating right-angle grid configurations.

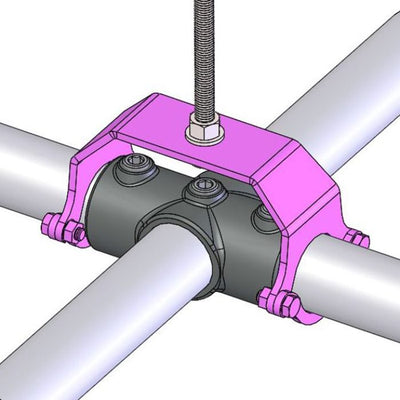

• Doughty Demountable Grid Hanger: for demountable grid systems that need to be assembled and disassembled regularly.

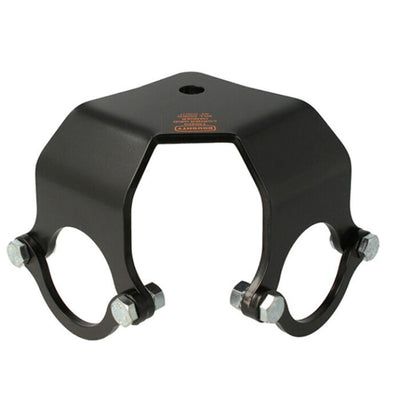

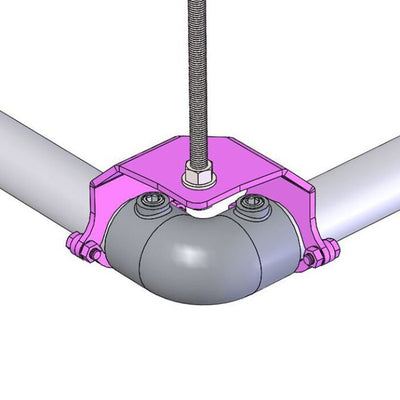

• Doughty Demountable Grid Hanger Corner: corner version for demountable grid systems.

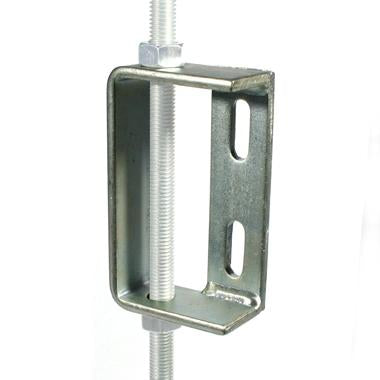

• Doughty Universal Stud Hanger: for creating suspension points from threaded studding in permanent overhead grid installations.

Structural and Beam Brackets

• Doughty Girder Brackets: for mounting lighting bars and tube structures to I-beams and structural steel. Available in 75mm to 150mm and 150mm to 300mm flange widths.
• Doughty Pressed Girder Bracket (Steel): pressed steel girder bracket for lighter load applications.

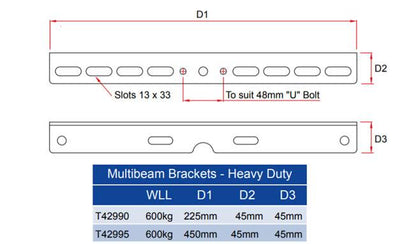

• Doughty Heavy Duty Multibeam Brackets: 225mm and 450mm versions for mounting stage pulleys and heavy rigging hardware to structural beams.

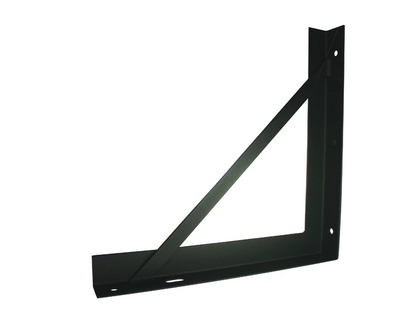

• Doughty Angle Iron Bracket: standard angle and face fixing versions for mounting tubes and structures to walls and structural steelwork.

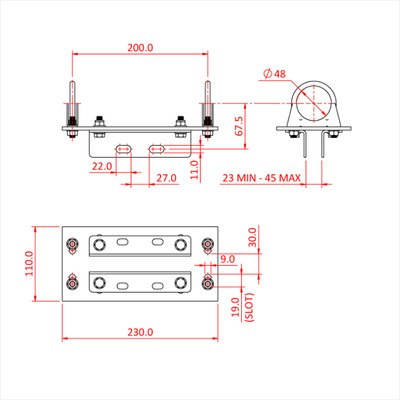

• Doughty Parallel Tube Bracket: for mounting a tube parallel to a wall or ceiling surface.

Floor Plates and Surface Mounting

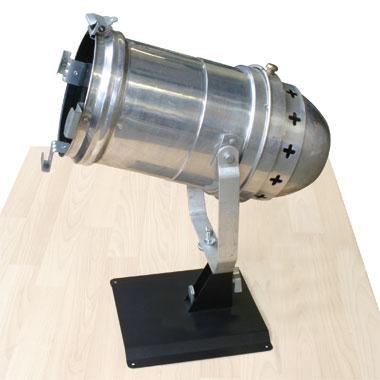

• Doughty Parcan Floor Plate: a floor plate for mounting a parcan or stage lighting fixture at floor level for uplighting applications.

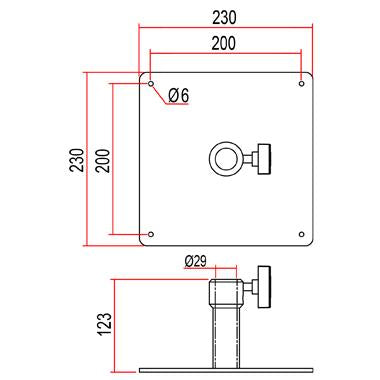

• Doughty Turtle Plate with 29mm Receiver: a flat floor plate with 29mm receiver for mounting fixtures directly to the stage floor.

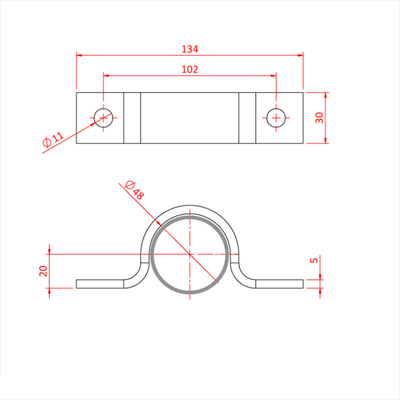

• Doughty Saddle Clamp 48mm: for fixing a 48mm tube to a flat surface. Available in silver and black.

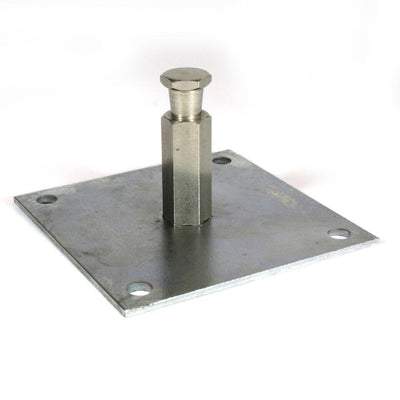

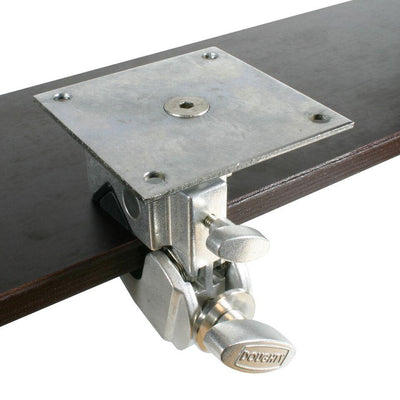

• Doughty Supaclamp Mounting Plate: a surface-mount plate for attaching a Doughty Supaclamp to a wall, floor or ceiling.

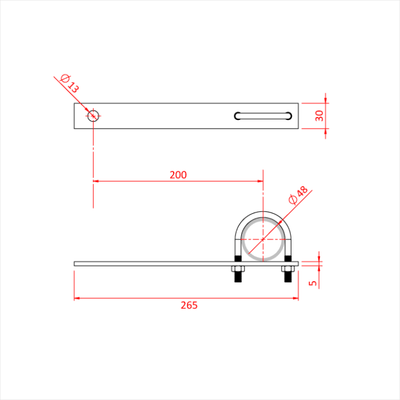

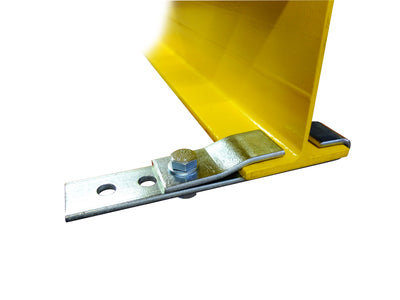

• Doughty Extension Plate: for extending the fixing point of a bracket or plate.

Base Flanges

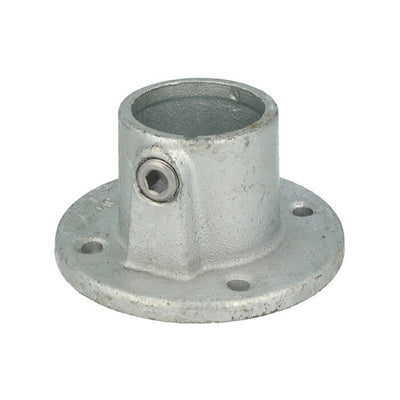

• Doughty Pipeclamp Base Flange: floor-mount base flange for the Doughty Pipeclamp aluminium tube fitting system.

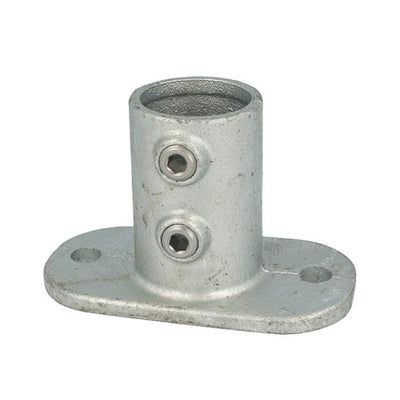

• Doughty Pipeclamp Railing Base Flange: railing base flange for the Pipeclamp system.

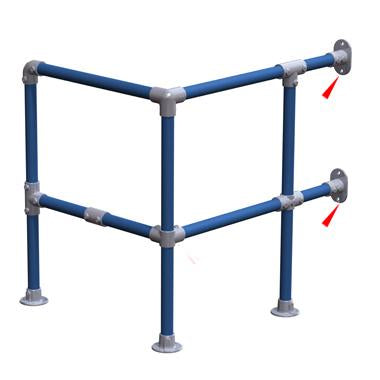

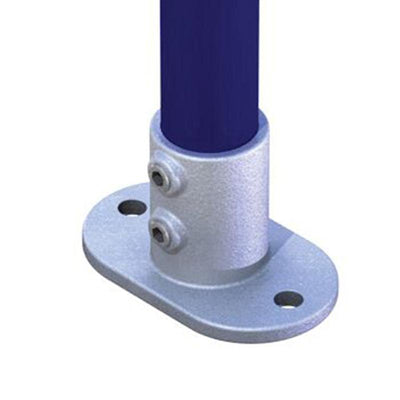

• Key Clamp Railing Base Flange: railing base flange for the Key Clamp tube fitting system.

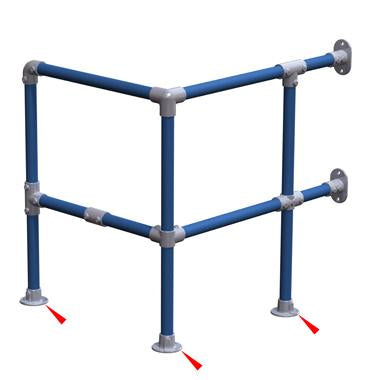

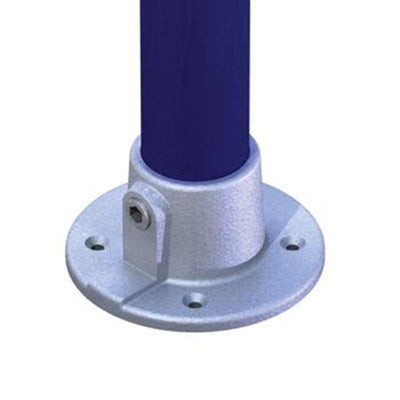

• Key Clamp Base Flange: standard base flange for the Key Clamp system.
• Key Clamp Angled Railing Base Flange: angled base flange for installations where a vertical tube cannot be mounted perpendicular to the floor.

Safety note: always verify the load rating of any bracket or plate against the combined weight of the tube, fixtures and cables it will support. For permanent installations, consult a qualified rigger or structural engineer. Browse our full stands and supports range for complementary products.
