Doughty Modular Drop Arm Extension 0.25/0.5/1/2m (L) for Stage Lighting Rigging

Modular Drop Arm Extension -  Stage Lighting Rigging

Award-winning Stage Lighting System
These Modular Drop Arms are parts of the Doughty award-winning Modular Rigging System, offering a faster, safer stage lighting rigging solution. The system is a strong, secure alternative to home-made drop arms, which until now have been the only option for riggers. With a range of configurations, Doughty Modular Rigging System opens up the possibility for highly innovative lighting design.

Modular drop arm extensions are constructed from aluminium with a female tapered connector each end. Supplied with two tapered pins and nyloc nuts. These extensions can be connected together to create different lengths of drop arms.

A slot is provided for a safety bond. Connections are made with Doughty T45755 connector. Powder-painted in silver or satin black is available. For any inquiries, please contact us via chat.

Spec Sheet - User Manual

Specifications:

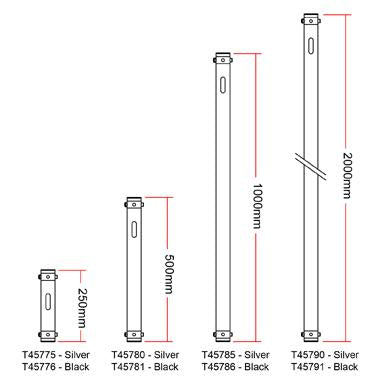

• Length: 250mm, 500mm, 1000mm & 2000mm
• Diameter: 48mm
• SWL: 100kg
• Material: Aluminum
• Finish: Powder-painted in silver or satin black

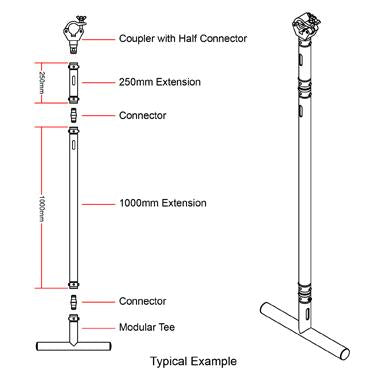

Products you need to create lighting trees/ladders:

• Coupler with Half Connector
• Drop Arm Tee with Through Connector
• Connector
• Drop Arm Extension

• Safety Bond
• Drop Arm Tee Extension
