Doughty Rail - Low Profile Aluminium Curtain Track

Product No. T81000

Please note: If your order is less than £45 worth of Doughty products, due to warehouse policies, your order will be refunded.


  • Free shipping over £200(Exclusions may apply)
  • No customs charges
  • BREXIT-proof shipping: 5-7 days as standard
  • If your order isn't right ➜Get a return label
Regular price £17.54 excl. £3.51 VAT £21.05 incl. £3.51 VAT
LENGTH
FINISH
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paydiners_clubdiscovergoogle_paymaestromasterpaypalshopify_payunionpayvisa
Shipping information
  • Free shipping over £200(Exclusions may apply)
  • No customs charges
  • BREXIT-proof shipping: 5-7 days as standard
  • If your order isn't right ➜Get a return label

    • Please note if you order is less than £45 worth of Doughty products, due to warehouse policies, your order will be refunded.
Product details

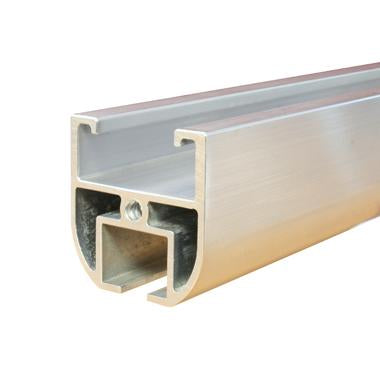

Aluminium Curtain Track (Low Profile)

Doughty rail is an Extruded Aluminium Walk-along Curtain Rail System. The compact design makes the curtain track highly versatile and perfectly meets the needs of smaller studios, drama studios, black box theatres, churches, schools, village halls, architectural and residential projects, and even pubs.

Doughty Rail makes installation quicker and easier

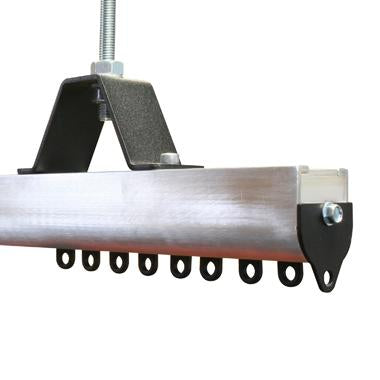

The top suspension channel is dimensioned to work with 'Unistrut' nuts to ensure quick and easy fixing with other components. A couple of brackets are available for suspending the Aluminium Curtain Track in most situations, e.g.

  • Corner-mounted
  • Ceiling-mounted
  • Wall-mounted

doughty-rail

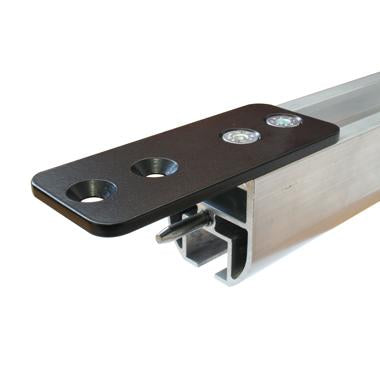

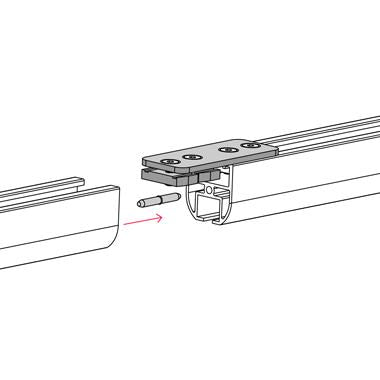

It also features a unique joint pin system that aids assembly and joint alignment easily. To make your curtain track system more flexible, the rails can be cut to length on-site and there is a drilling jig available to easily re-drill the joint holes accurately.

"Doughty Rail is an innovative, semi professional product that will perfectly meet the requirements of users who do not need to invest in the heavy duty products required by big theatres and large scale entertainment venues," said Mark Chorley, design engineer at Doughty

Curved sections are also available for creating different styles of Curtain Rail System.

Doughty Rail User Manual


Features, Benefits & Specifications

  • Single swipe or overlap curtains
  • Walkalong only: Check Doughty Six Track Kit- Line Operated if a line-operated curtain track system is needed
  • Low profile: A great and budget solution to venues where space is tight.
  • Wide range of brackets for flexible applications: As a flexible curtain rail system, Doughty rail can be mounted in various locations with different types of brackets to fit the venue design.
  • Length and Weight: 1m(2.90kg), 2m(4.30kg), 3m(5.80kg)

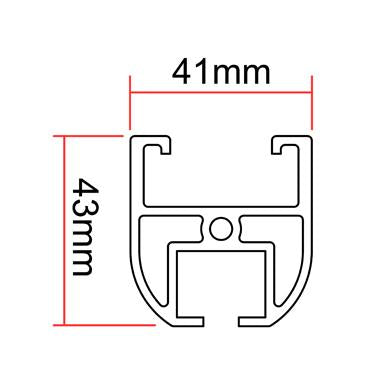

  • Dimension: 43mm(H) x 41mm(D)
  • Maximum load between supports: 60kg
  • Maximum span between supports: 1500mm
  • Recommended distance between runners: 300mm
  • Ball raced runner WLL: 6kg per each
  • Material: Aluminum
  • Finish: Natural Aluminium and Black

A Wide Range of Rail Accessories

Discover the full list of Doughty Rail accessories for the unique adaptability to your needs.

B R A C K E T S

Doughty Rail Accessories

E N D  S T O P S

O T H E R S

Doughty Rail Accessories


Doughty Rail Set Up

A) The straight rail in the whole piece


Doughty Rail - Compact Curtain Rail System

B) The joint straight rail

Doughty Rail - Compact Curtain Rail System
