Tubes & Barrels

Doughty aluminium barrels and galvanised steel tubes are the standard 48mm tubes used across stage, studio and live event installations. Both are fully compatible with all Doughty clamps, couplers, scaffold fittings, Pipeclamp and Speedrail systems. Available in silver aluminium, black anodised aluminium and galvanised steel.

Browse our full range of Doughty Pipes, Tubes and Fittings or visit our entertainment and stage rigging guide.

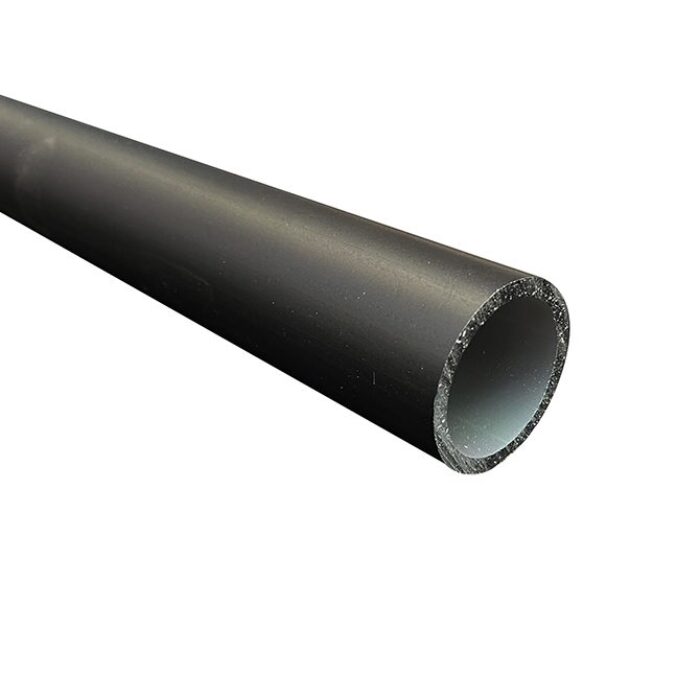

Doughty Aluminium Barrel-Black - Black plastic pipe, hollow, durable construction material
Loading…

3 products

View

Tubes & Barrels – Product list

Doughty Aluminium Barrels and Steel Tubes

Doughty aluminium barrels and galvanised steel tubes are the standard 48mm outside diameter tubes used across stage, studio and live event installations. Both are fully compatible with the complete range of Doughty clamps, couplers, scaffold fittings, Pipeclamp fittings and Speedrail fittings. Aluminium barrels are the standard choice for suspended lighting rigs and horizontal lighting bars. Galvanised steel tube is used for ground-based structures, barriers and outdoor installations where higher load capacity or corrosion resistance is required.

Products in This Range

  • Doughty Aluminium Barrel (Silver): lightweight 48mm aluminium tube for lighting bars, horizontal runs and suspended structures. The standard choice for most stage and studio installations. Available in 1m, 1.5m, 2m, 3m and 4m lengths.
  • Doughty Aluminium Barrel (Black): same specification as the silver barrel but anodised black. For installations where the tube is visible to the audience or camera, such as theatres, black box studios and broadcast environments.
  • Doughty Galvanised Steel Tube: heavy-duty 48mm steel tube with galvanised finish for corrosion resistance. For floor-based structures, barriers, outdoor events and applications where higher load capacity is required.

What to Look For

  • Aluminium vs steel: aluminium barrels are significantly lighter and the standard choice for suspended lighting rigs and stage lighting bars. Galvanised steel tube is heavier and stronger, suited to ground-based structures, barriers and outdoor use where load capacity or corrosion resistance is the priority.
  • Finish: silver aluminium is the standard for most backstage and grid installations. Black anodised aluminium is preferred where the tube will be seen by an audience or on camera.
  • Compatibility: both tubes are 48mm and compatible with all Doughty clamps, couplers, scaffold clamps, Pipeclamp fittings and Speedrail fittings.

Browse our full range of Doughty Pipes, Tubes and Fittings for the complete structural tube and fitting range including Doughty clamps and couplers, Aluminium Tube Fittings and scaffold clamps.

Frequently Asked Questions

A Doughty aluminium barrel is lightweight and the standard choice for suspended lighting rigs and horizontal lighting bars in theatre, TV studios and live events. A Doughty galvanised steel tube is heavier and stronger, suited to ground-based structures, barriers and outdoor installations where higher load capacity or corrosion resistance is required. Both are 48mm OD and compatible with all Doughty clamps and fittings.
Doughty aluminium barrels are available in 1m, 1.5m, 2m, 3m and 4m lengths in silver finish. The black anodised version is also available for installations where the tube will be visible to an audience or on camera. Both versions are 48mm OD and compatible with the complete range of Doughty clamps, couplers and tube fittings.
Yes. All Doughty aluminium barrels and galvanised steel tubes are standard 48mm OD and are fully compatible with Doughty half couplers, hook clamps, scaffold clamps, Pipeclamp aluminium tube fittings and Speedrail fittings. Always verify the wall thickness of the tube is sufficient for the fitting type before ordering, particularly for scaffold clamp and Pipeclamp applications.
