Half Couplers

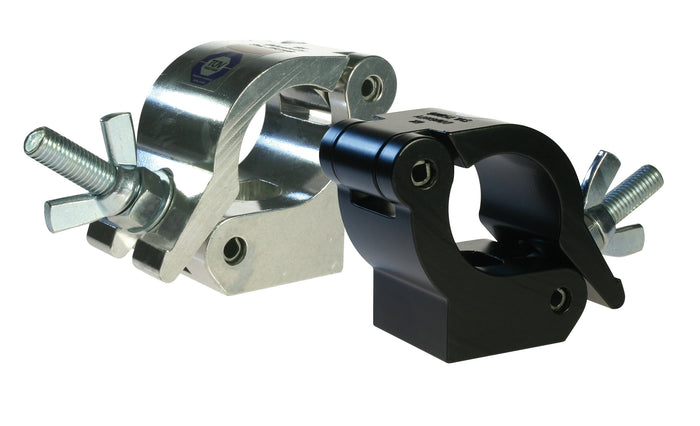

Doughty half couplers — also known as wrap-around clamps — are the standard aluminium clamp for attaching stage lighting fixtures, moving heads, speakers and rigging accessories directly to truss chords and lighting bars. Unlike a hook clamp, a half coupler wraps fully around the tube and tightens with a single M10 or M12 bolt, giving a secure, low-profile fixing rated up to 500kg WLL. TÜV approved and used across theatre, film, TV studios and live events.

Browse our full range of Doughty clamps and couplers or learn more about stage rigging for entertainment.

Types in This Range

• Half Coupler (Standard, 48mm) — the core product. Fits 48–51mm tube. Available in standard, lightweight and super lightweight versions. SWL up to 500kg.
• Atom Half Coupler (25–38mm) — for smaller tube diameters including lightweight truss chords and stand centre tubes. WLL 100kg. TÜV approved.
• Mammoth Half Coupler (60–63mm) — for larger diameter tubes and heavy truss chords. Also available in slimline version. SWL 500kg.
• TV Doughty Clamp (28mm Receiver) — half coupler with integrated 28mm receiver for drop arms and pantographs. Designed for TV and film. Also available as quick-release version.
• Eye & Hanging Clamp — half coupler fitted with an eyenut for wire-hung loads. Available for 48mm, 60mm Mammoth and 25–38mm Atom tube sizes.
• 90° Fixed Coupler — joins two tubes at a right angle. Used for building truss grids and structural connections. Available in 48mm and 60mm Mammoth versions.
• Swivel Coupler — two clamps with 360° of free movement. Used for joining tubes at any angle or connecting parallel runs. Available in standard and slimline versions, and 60mm Mammoth.

Available Tube Diameters

• 25–38mm (Atom) — for smaller tube and lightweight truss
• 48–51mm — industry standard for stage lighting and truss applications
• 60–63mm (Mammoth) — for larger truss chords and heavy-duty applications

What to Look For

• SWL — standard half couplers rated to 500kg; Atom versions 100kg; TV Doughty Clamp 200kg; always verify the rated load for your application
• Profile width — slimline versions (30mm wide) fit between truss web bars where a standard 50mm coupler would not clear
• Fixing type — standard versions use M10 or M12 bolt; TV Doughty Clamp versions include a 28mm receiver for drop arms and pantographs
• TÜV / CE certification — all Doughty half couplers are independently certified for entertainment rigging

Safety note: Always use a secondary safety bond when rigging any fixture or load overhead.
