Doughty Atom Hook Clamp 25-38mm (w/Fixings) [Multi-Pack]


Tube Diameter

Category: 30-40mm, <25mm, Clamps, Half Couplers, SWL: 51-100kg

✦ Free shipping over £200(Exclusions may apply)
✦ No customs charges
✦ BREXIT-proof shipping: 5-7 days as standard
✦ If your order isn't right ➜Get a return label

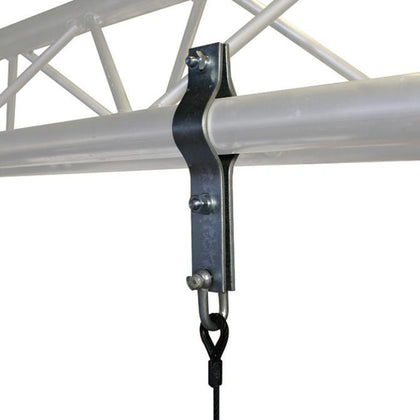

Doughty Atom Hook Clamp - 25mm/32mm/35mm/38mm

The Atom Hook Clamp (note: an atom clamp means a clamp smaller than a standard size that is 50mm in diameter) is manufactured from high tensile Aluminium Extrusion and supplied with a Wing Nut and Bolt Fixing.

It also features an easy-grip handle for user-friendly operation, suited to individual requirements. Also, it can be attached to round tubes or truss chords and suspend equipment and luminaries.

Widely applicable in the theatre, film, TV and photographic industries. 3 four sizes are available. For any inquiries, please contact us via chat.

Spec Sheet for hook clamp range


  • Size: Fit 25mm/32mm/35mm/38mm diameter tubes
  • SWL: 100kg
  • Width:
    - 25mm Clamp: 21mm
    - 32mm Clamp: 30mm
    - 35mm Clamp: 30mm
    - 38mm Clamp: 30mm
  • Fixings:
    - 25mm Clamp: M6 Bolt & Wing Nut
    - 32mm Clamp: M6 Bolt & Wing Nut
    - 35mm Clamp: M10 Bolt & Wing Nut
    - 38mm Clamp: M10 Bolt & Wing Nut
  • Finish: Available in both aluminum and black
