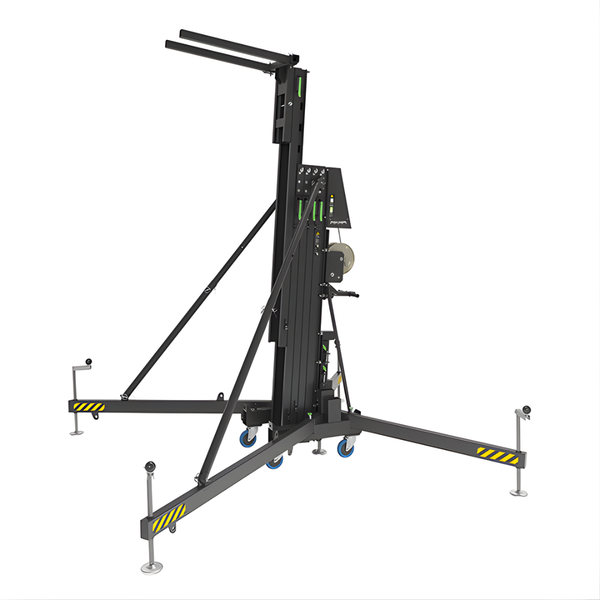

  • Kuzar K-60 line array lift fully assembled with loading forks extended and outrigger legs deployed

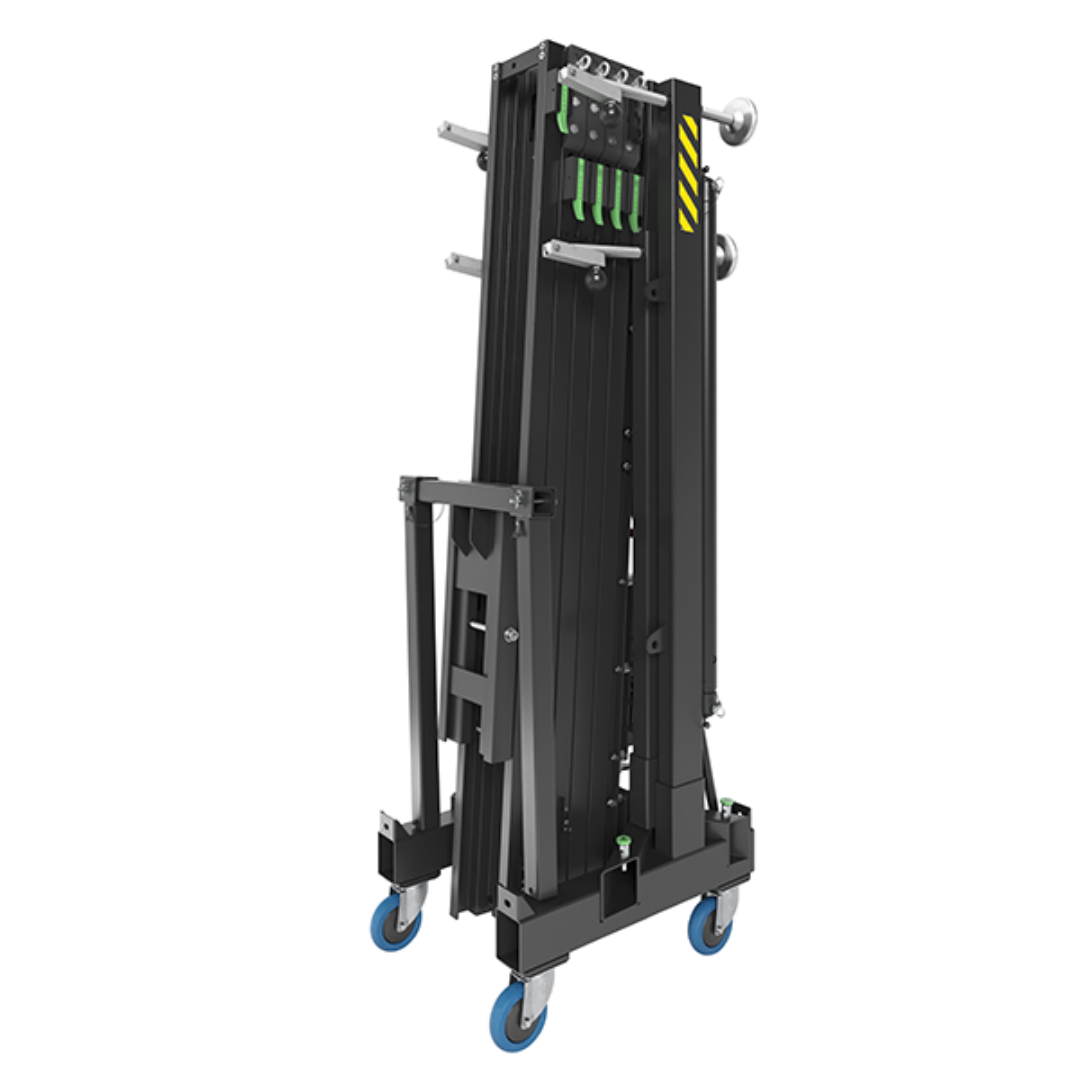

  • Kuzar K-60 line array lift folded for transport on its swivel castors - imagen 2

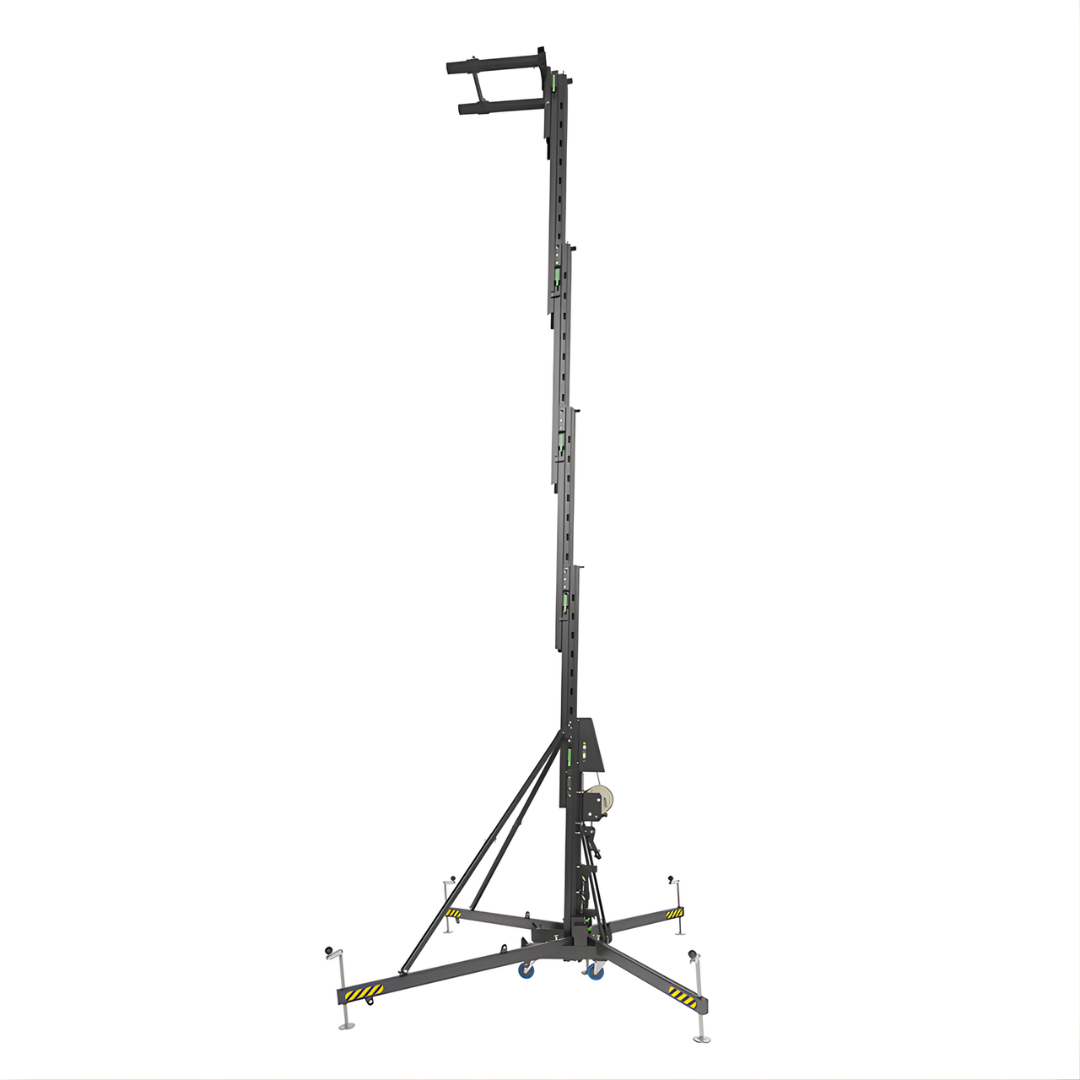

  • Kuzar K-60 line array lift fully extended at its maximum 7.2 m working height - imagen 3

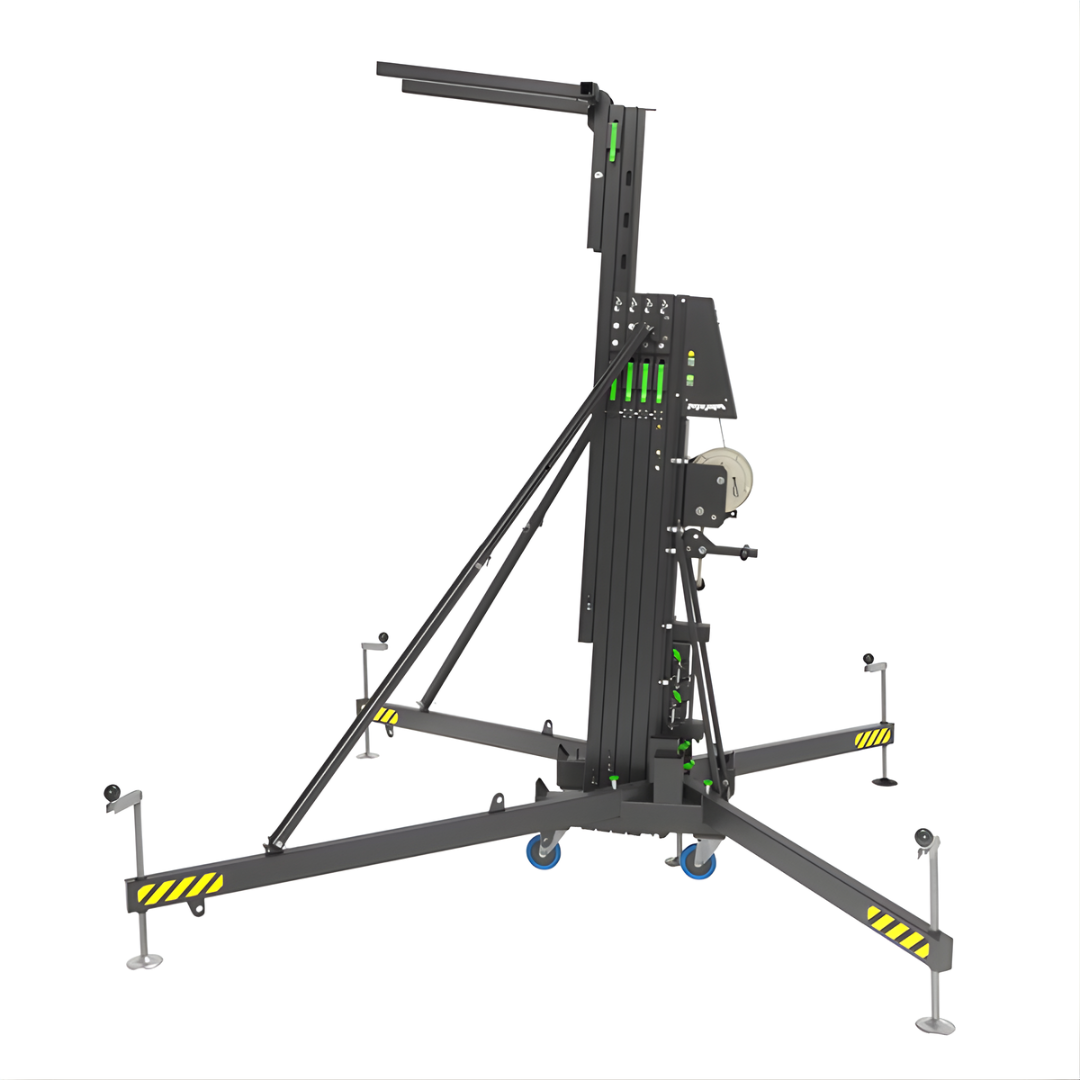

  • Kuzar K-60 outrigger legs and steel base detail with hazard marked stabilizers - imagen 4

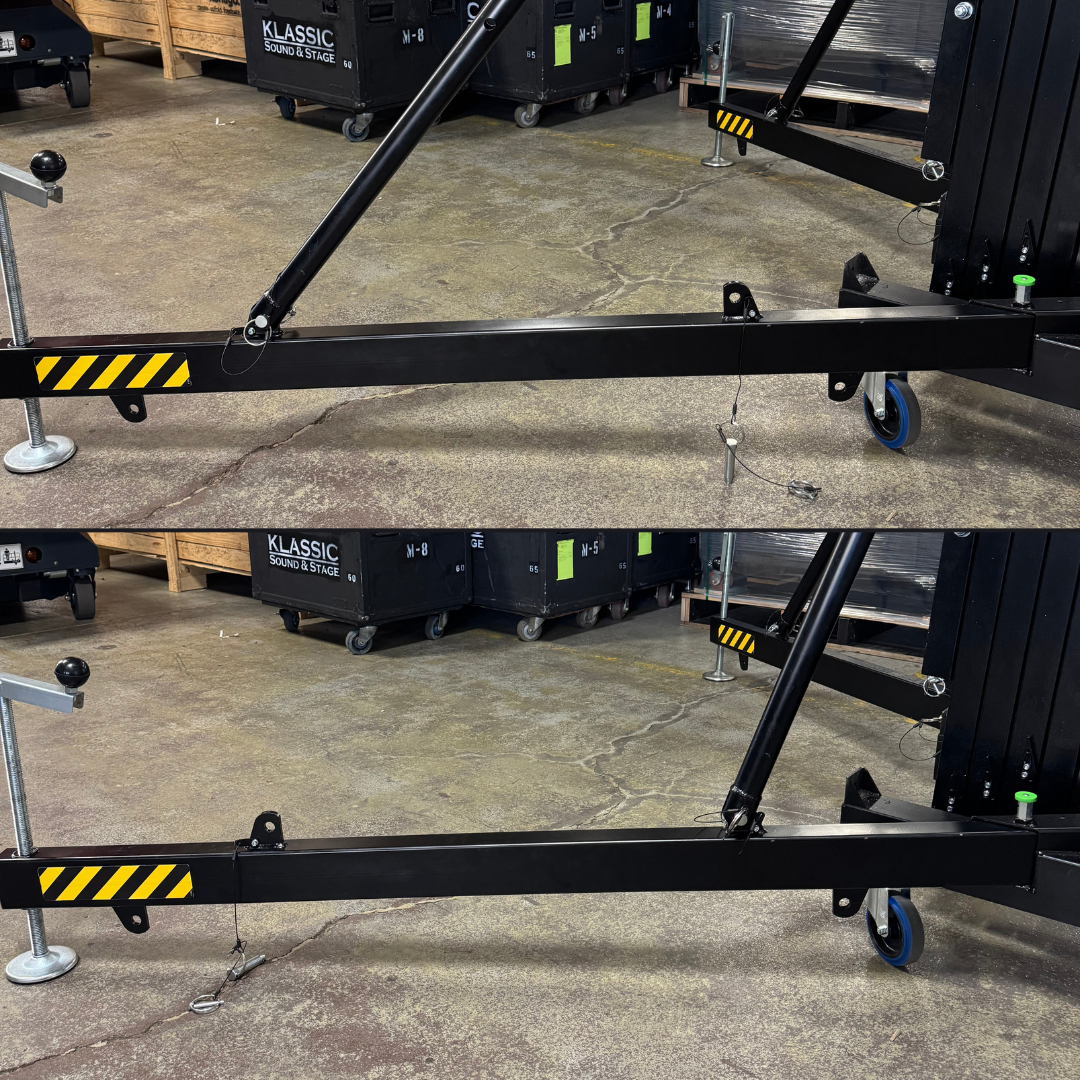

  • Kuzar K-60 SLS Safe Lock System trigger detail on each aluminium section - imagen 5

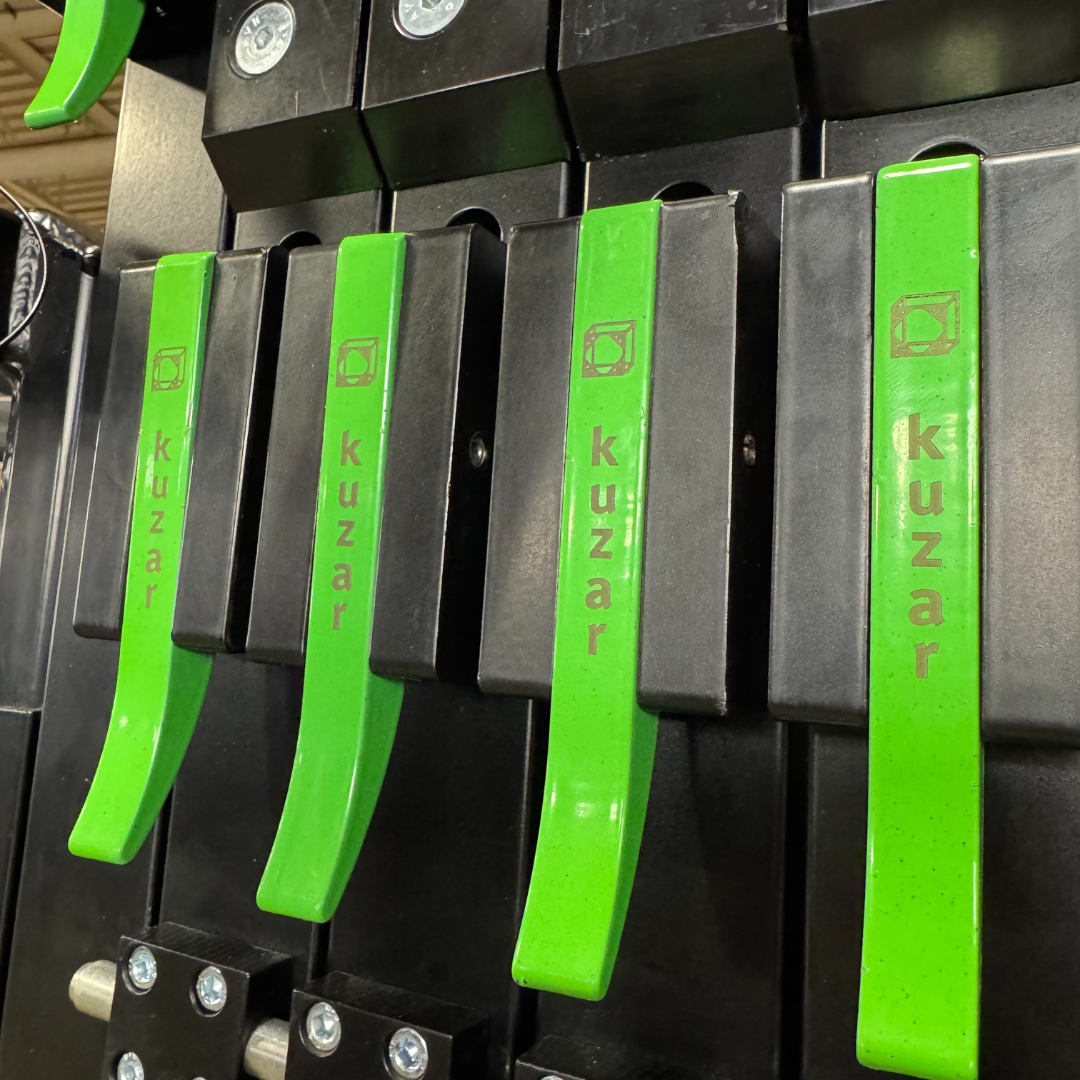

  • KAT Lock System - Kuzar K-60 - imagen 6

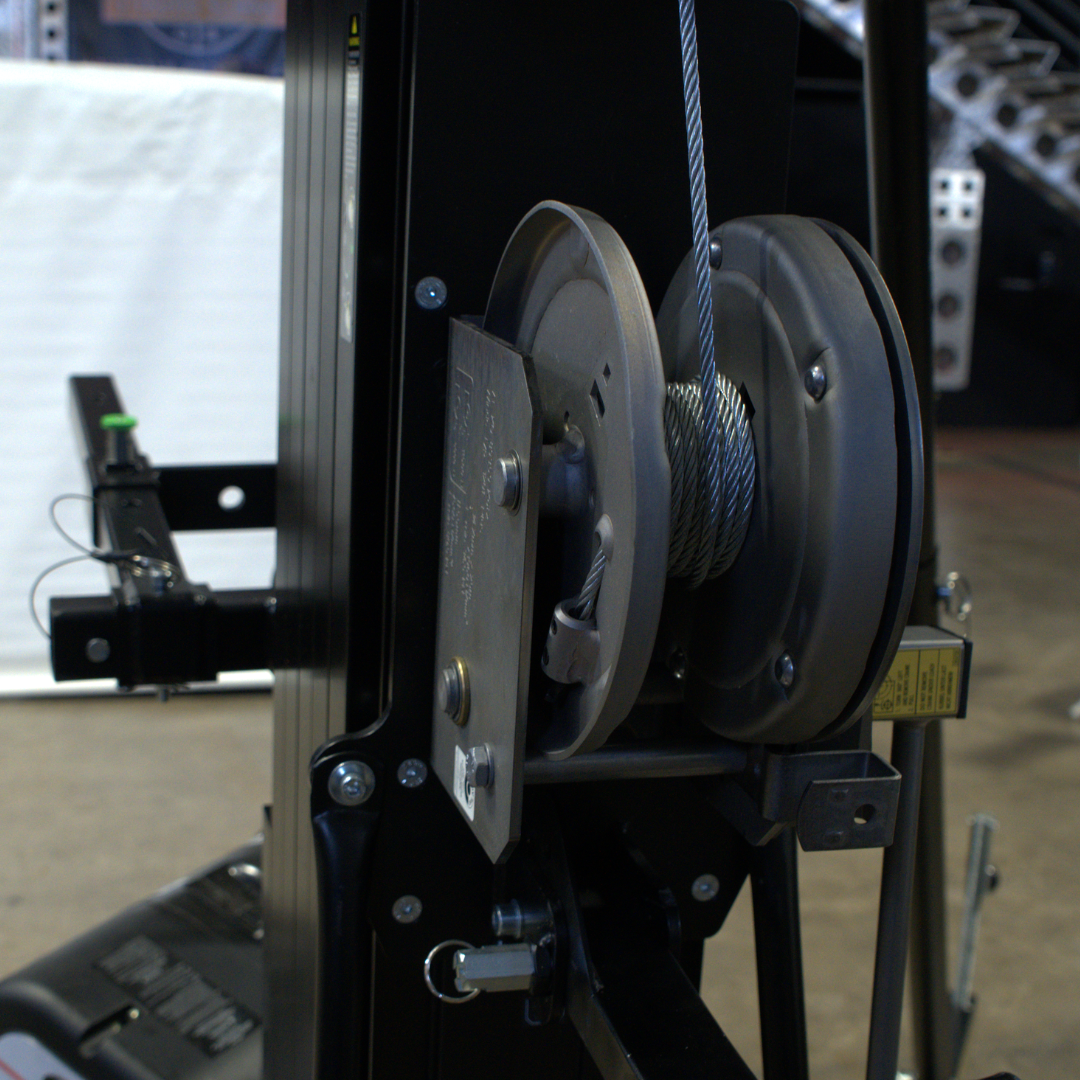

  • Kuzar K-60 winch and pulley mechanism detail with steel cable - imagen 7

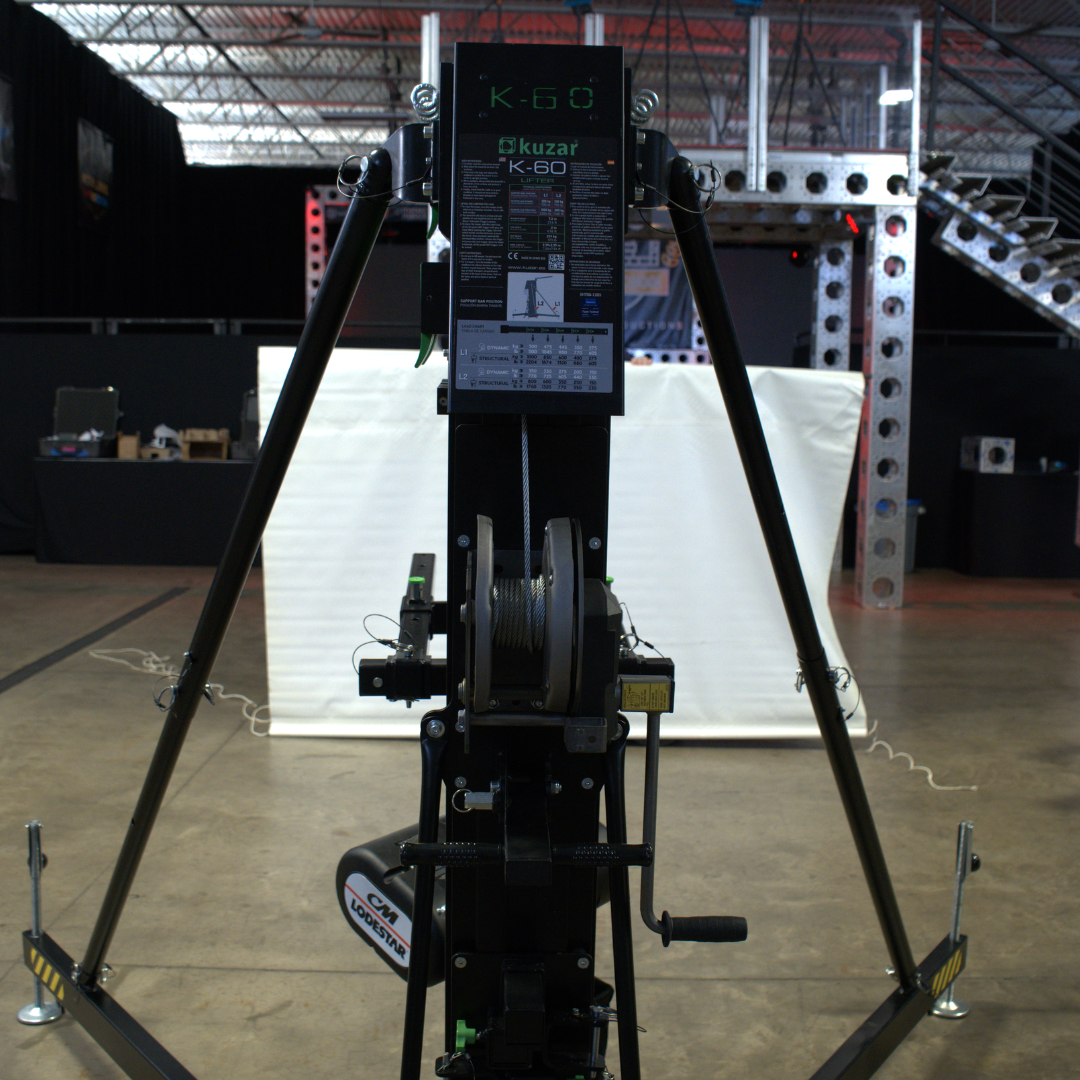

  • Kuzar K-60 line array lift set up in a workshop showing full tripod base and control panel - imagen 8

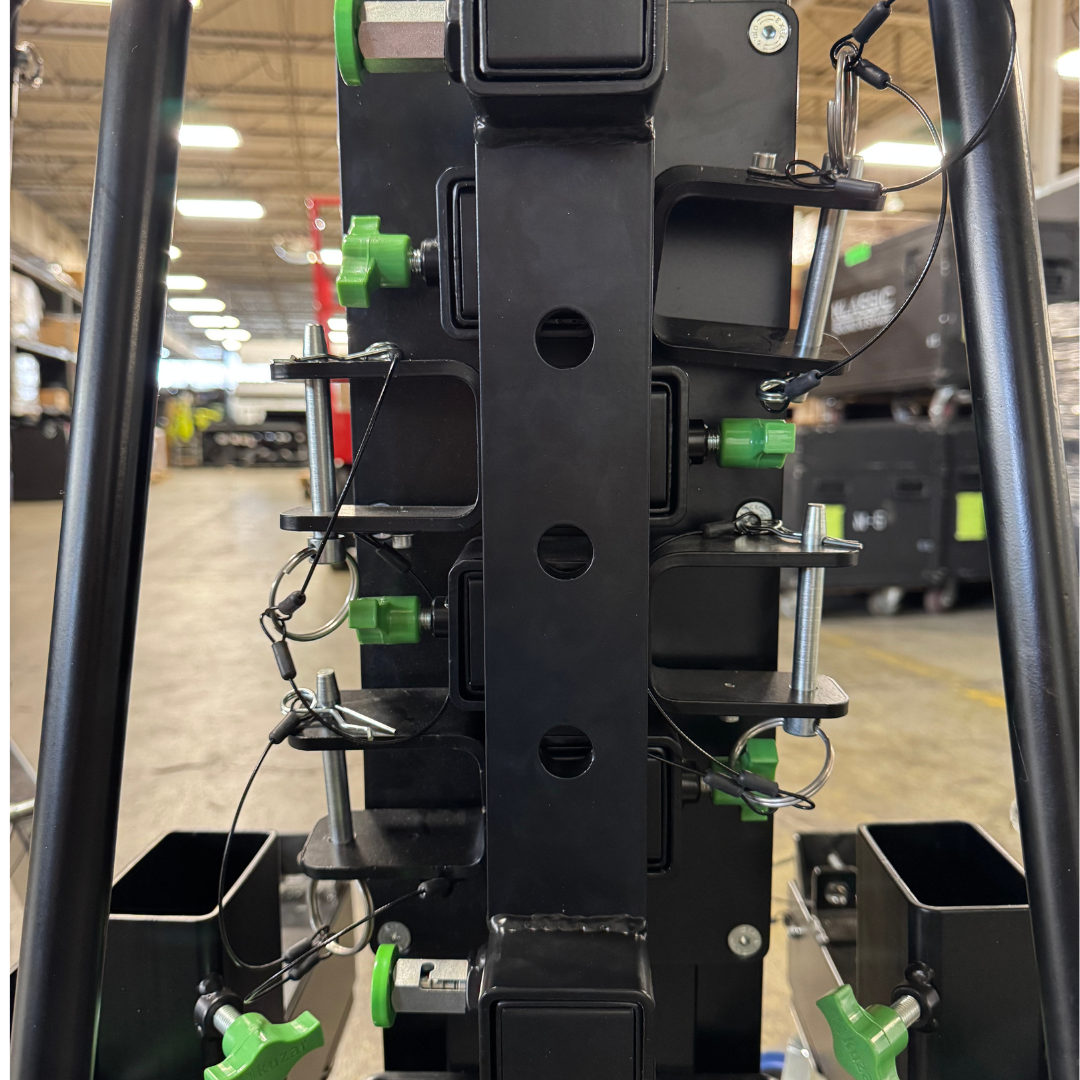

  • Rigging attachment storage - Kuzar K-60 - imagen 9

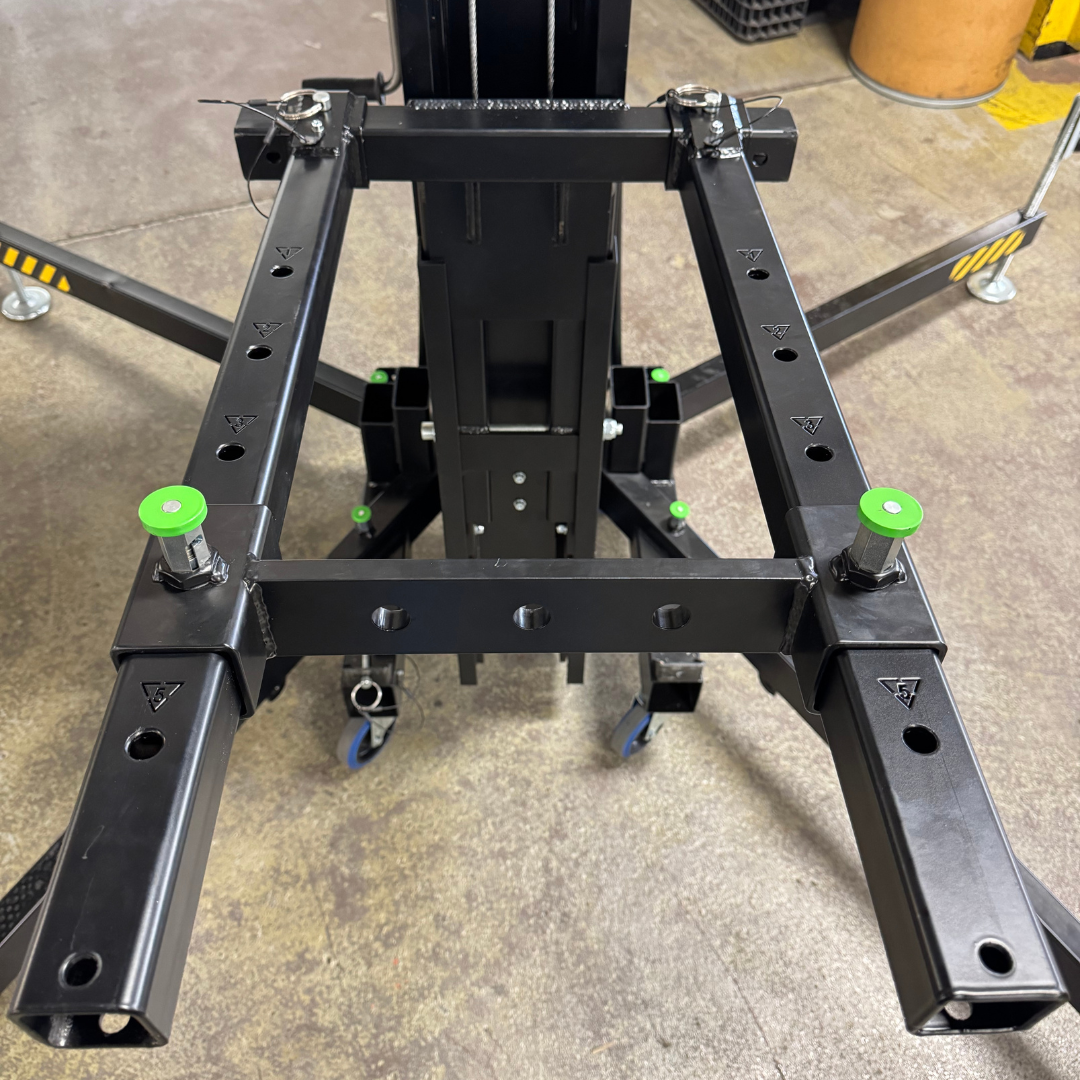

  • Forks with laser-cut position location - Kuzar K-60 - imagen 10

Kuzar K-60 Line Array Lift

Kuzar |
SKU: K-60
£4,522.07incl. VAT

Incl. VAT. Shipping calculated at checkout.

In stock
  • Dual Lifting Modes: Raises 500 kg to 7.2 m in dynamic mode, or up to 1000 kg in structural mode using a hoist.
  • SLS Lock System: Each section locks automatically during elevation, with an internal pendulum brake for extra security.
  • TÜV Certification: The only line array tower lift of its kind certified to EN 17206-2:2023.
  • Made in Spain: Weighs 259 kg, comes with a 2-year warranty and AGR-1 and TA-2 accessories fitted.
View full Description Technical data
american_expressapple_paydiners_clubdiscovergoogle_payklarnamaestromasterpaypalshopify_payunionpayvisa
klarna. Add an item to see installment options

You may also like

Kuzar K-60 Line Array Lift

The Kuzar K-60 is the most powerful lift in the Kuzar line array range, TÜV certified to EN 17206-2:2023, the only certification of its kind for this type of lifter on the market. The K-60 raises 500 kg to a height of 7.2 m in dynamic mode, or up to 1000 kg in structural mode, where the tower locks at height and a manual or electric hoist carries out the lift.

Key Features

  • TÜV certified to EN 17206-2:2023, the only certification of its kind for this type of lifter
  • Raises 500 kg to 7.2 m in dynamic mode, or up to 1000 kg in structural mode
  • SLS Safe Lock System locks each section automatically as the tower is raised
  • Internal pendulum brake provides a second layer of protection
  • Two telescopic lateral braces for added stability when working close to the stage
  • Comes complete with one AGR-1 and four TA-2 accessories fitted to the body
  • Steel base on four 360 degree swivel castors with central steering handle
  • 2-year warranty, made in Spain

Construction & Accessories

Five 6082-T6 black epoxy powder coated aluminium sections are raised with a manual AL-KO winch and galvanised steel cable. The K-60 ships with one AGR-1 Line Array System Support and four TA-2 accessories fitted to the body, so the line array tower lift is ready for both line array and trussing applications straight away. The steel base runs on four 360 degree swivel castors with a central steering handle, and includes mounting points for an optional pallet truck accessory. Two 75 cm steel loading forks rotate 180 degrees, attached to a reinforced steel lifting carriage, with all pins and clips secured by nylon coated steel lanyards.

Why Kuzar K-60

As an affordable alternative to many line array tower lifts, the Kuzar K-60 stays virtually invisible to audiences thanks to its black anodized finish, blending in seamlessly backstage. Built-in safety features make it quick to transport and set up, keeping touring productions and live events safe and efficient. For a powerful yet economical line array lift, the K-60 is a strong choice.

See the full range of Kuzar lifts at MTN Shop UK.

Frequently Asked Questions

What is a line array lift used for?
A line array lift, such as the Kuzar K-60, raises line array speaker systems, lighting trusses and other rigging above an audience or stage in live events and touring productions, holding the structure safely at working height throughout a show.
How does the Kuzar K-60 line array tower lift work?
The K-60 raises aluminium sections with a manual winch in dynamic mode, locking each section automatically with the SLS system. In structural mode the tower is locked at height first and a separate hoist lifts the load, allowing up to 1000 kg.
What height can the Kuzar K-60 reach?
The Kuzar K-60 reaches a maximum working height of 7.2 m and folds down to 2 m for transport, fitting through standard venue doorways and into most touring vehicles.
