Core drilling is one of the specialist trades in construction: it looks straightforward until you have watched an untrained operator burn out a £600 machine and destroy a £200 diamond bit in the same afternoon. Getting large clean holes through concrete requires the right drill for the wall thickness, the right diamond core bit for the aggregate type, the right water feed for wet drilling, and the operator technique to work with the tool rather than fight it. The Rotary Core Drills collection at MTN Shop UK is built around the machines that professional operators specify, with DEWALT and Makita as the two trade references in the segment.

Corded diamond core drills

Corded core drills deliver the highest sustained power output and are the standard specification for continuous drilling on a fit-out project or a first-fix run:

• DEWALT D21570K 127mm Dry Diamond Drill (1300W, 2 Speed): the workhorse trade corded core drill, with a 1300W motor for continuous cutting through concrete and masonry, two-speed gearbox for matching drilling speed to core diameter (slower speeds for larger diameter cores), and 127mm dry drilling capacity. Available in both 110V site transformer version for UK construction sites and 240V mains version for workshop, refurbishment and residential installation work.

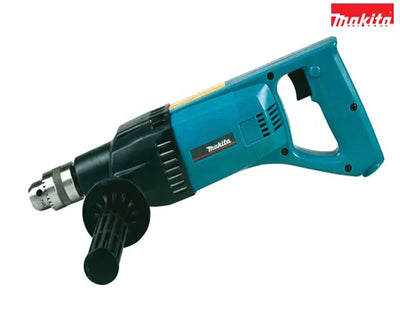

• Makita 8406 Percussion Diamond Drill (850W): combines rotary core drilling with percussion action, useful for harder aggregate concrete and reinforced sections where pure rotary can slow. Available in 110V for site use and 240V for workshop and domestic install work.

Cordless diamond core drills

The DEWALT FlexVolt 54V platform is the trade cordless answer for core drilling on sites without power access, in refurbishment work where trailing cables are not practical, and for occasional drilling where setting up a site transformer is disproportionate:

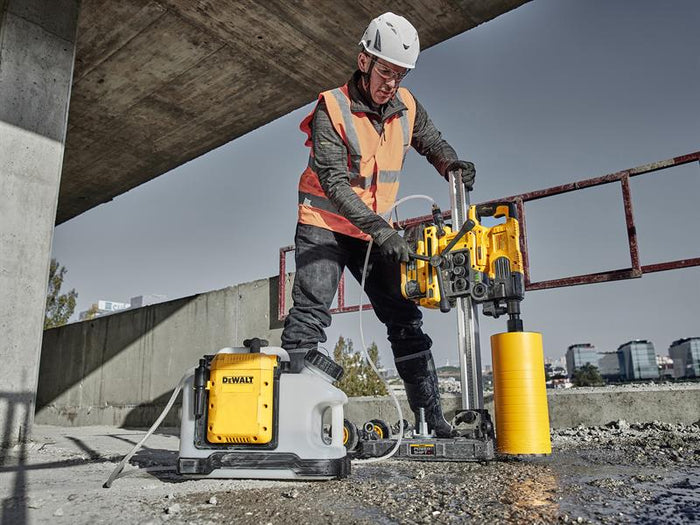

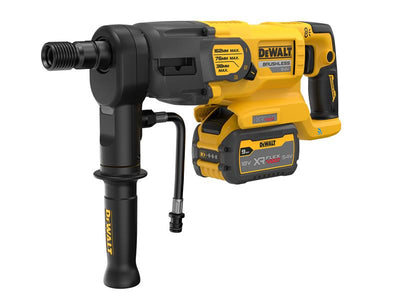

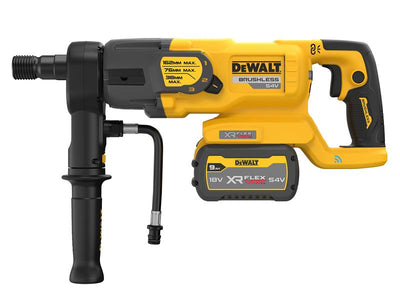

• DEWALT DCD150X2 XR FlexVolt Diamond Drill (54V, kit with 2 x 9.0Ah batteries): the complete kit with two high-capacity 9.0Ah FlexVolt batteries and charger. The FlexVolt system delivers the sustained power required for diamond drilling from a battery platform, with two batteries in rotation giving continuous run time on typical first-fix work.

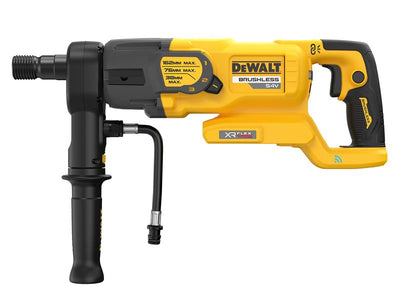

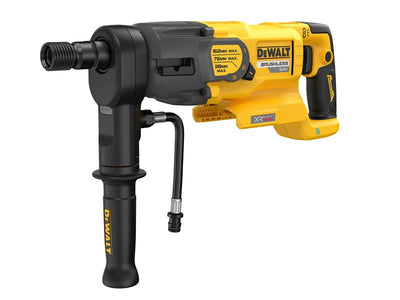

• DEWALT DCD150NK XR FlexVolt Diamond Drill (54V, Bare Unit): the same machine as a bare tool for users already in the DEWALT FlexVolt ecosystem with existing batteries and chargers.

110V vs 240V: which one for your work

• 110V (yellow site transformer): mandatory specification on UK construction sites under CDM 2015 and the Electricity at Work Regulations. Sites require 110V centre-tapped earth (CTE) transformers to limit electric shock risk. If the tool is going on a commercial construction site, it must be 110V.
• 240V mains: the domestic and workshop specification for refurbishment work in occupied buildings, workshop installation drilling, and any site where the operator will not be moving between commercial construction sites and workshop/domestic environments.

The tool itself is identical between the two voltages; only the motor windings differ. Buy the version matched to the environment where the tool will spend most of its life.

Diamond core bits: the other half of the system

The drill motor is only half of a core drilling system: the diamond core bit is the other half, and matching bit to material matters more than most first-time operators realise. Diamond bits are specified for the aggregate hardness (soft concrete, medium concrete, hard aggregate, granite), for the reinforcement content (plain concrete vs steel-reinforced), and for wet vs dry cutting. Using a soft-bond bit on hard aggregate wears the diamonds off before the cut is complete; using a hard-bond bit on soft aggregate glazes the diamonds and stops them cutting. Diamond core bits are sold separately in our bits collection.

Wet vs dry drilling

• Dry drilling (as specified for the DEWALT D21570K and the FlexVolt range up to 127mm): faster setup, no water management, no wet waste to clean up. Right for smaller diameter holes, occasional drilling, refurbishment work in occupied buildings and any location where water use would cause damage.
• Wet drilling: the specification for larger diameter cores, deeper holes and continuous production drilling. Water cooling extends bit life significantly, keeps the cut clean and captures the dust that dry drilling produces. Requires water feed and slurry collection setup. Not suitable for occupied buildings without proper containment.

Common core drilling applications

• Extractor fan installation: 100mm or 125mm core through cavity wall for the ducting.
• Soil stack and drainage penetrations: 110mm to 160mm cores through external walls for 4-inch soil pipe.
• Cable ducts for services: 50mm to 100mm cores through concrete walls for cable and pipe runs between rooms and between floors.
• Ventilation and MVHR ducting: 150mm+ cores for MVHR and mechanical ventilation supply/extract.
• Dry riser and wet riser pipework: larger diameter cores through firewalls and floor slabs for firefighting main runs.
• DPC injection holes: smaller diameter cores in courses of brickwork for damp-proof course chemical injection.
• Structural anchor pockets: cores for chemical anchors, structural repair and steel plate installation.

Safety and standards

Core drilling machines are powerful tools with real hazard potential:

• PUWER 1998 (Provision and Use of Work Equipment Regulations) applies: the tool must be maintained, inspected and used by trained operators.
• Electricity at Work Regulations 1989 and PAT testing for corded tools in commercial use.
• CDM 2015 Construction (Design and Management) Regulations apply on construction sites, including 110V power specification.
• Anti-jam clutch: essential feature - if the bit catches in reinforcement steel or a bit fragment, the reactive torque will spin the operator's arm if the clutch does not release. Both DEWALT and Makita machines here include this feature.
• Two-handed operation: always operate with both hands on the tool, side handle fitted, correct body position to absorb reactive torque.
• Never remove the safety guard and always wear safety glasses, dust masks for dry drilling (concrete dust contains crystalline silica) and safety gloves.
• Silica dust: HSE has classified respirable crystalline silica as a Workplace Exposure Limit substance. Dry diamond drilling of concrete generates silica dust and requires appropriate respiratory protection (FFP3 minimum) plus on-tool dust extraction where practical.

Choosing the right core drill

• Construction site with power access: DEWALT D21570K 110V (1300W corded, mandatory 110V for UK sites).
• Construction site with no power: DEWALT DCD150X2 FlexVolt 54V kit (bring 2x9.0Ah batteries and charger).
• DEWALT FlexVolt user adding a core drill: DCD150NK bare unit, use existing batteries.
• Workshop, refurbishment, occupied building install: DEWALT D21570K 240V or Makita 8406 240V.
• Hard aggregate, reinforced concrete, combined drilling need: Makita 8406 percussion diamond drill (rotary plus hammer for tough concrete).
• Occasional refurbishment core drilling: Makita 8406 240V (850W adequate for occasional use, lower price point).

Related categories

The Rotary Core Drills collection sits under our wider power tools category and alongside our other drill types: powered drills, drill drivers, percussion drills, SDS drills, combi hammer drills, rotary drills, angle drills, demolition hammers and electro magnetic drills. Diamond core bits are sold separately in our bits collection. For dust extraction and respiratory protection, see our vacuums and dust extraction, respiratory protection and dust masks ranges. To keep cordless FlexVolt kit running, browse our batteries range.

For trade orders, first-fix contractor kits, MEP contractor supplies, drainage installer kit or specific DEWALT FlexVolt or Makita references, request a quote and our team will get back to you with availability.
