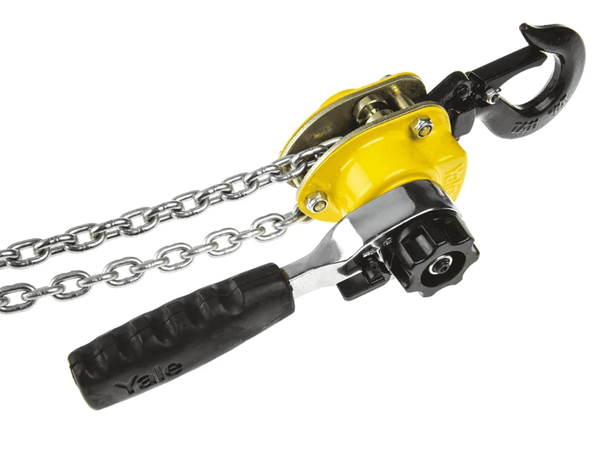

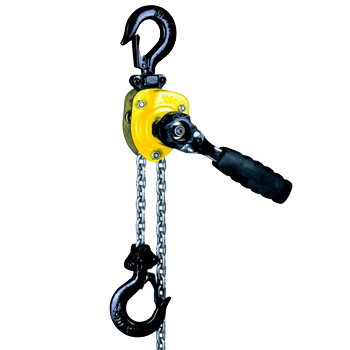

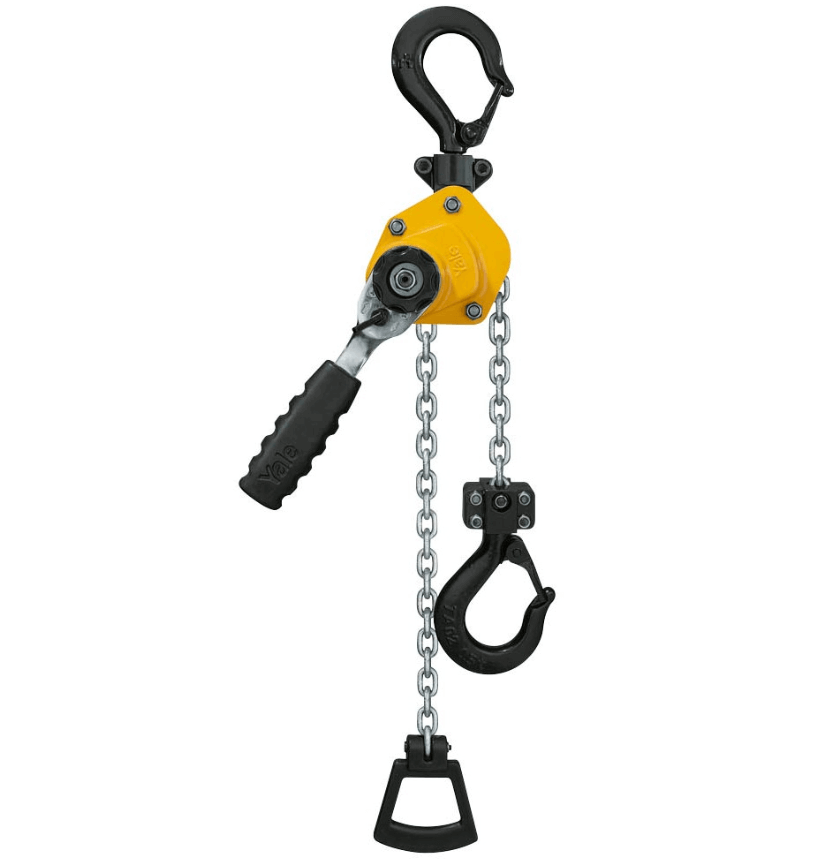

Yale Handy Ratchet Lever Hoist 250/500 KG

Yale Handy Ratchet Lever Hoist with 360° Swivel Hooks & Safety Features

Now, you can lift/pull your load professionally with the Yale Handy - the smallest, lightest yet robust in the Yale range without compromising safety and quality.

Yale Handy is extremely low tare weight and the very compact design makes it easy to use even in confined working conditions. Due to the multitude of application possibilities e.g. in industry, trade, and service this ratchet lever hoist is indispensable.

YALE - Britain’s No. 1 Name for Lifting

Yale is a global brand of Columbus McKinnon (CM). The Yale name has been synonymous with quality hoisting equipment since 1877. Today, Yale still leads the industry with new and innovative products, making their hoists the no.1 choice in the UK.

Chain Hoist Guide - Datasheet - Operating Instructions

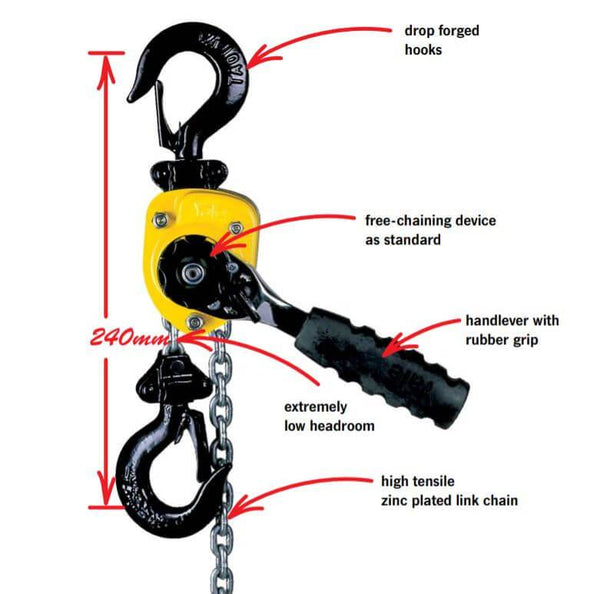

FEATURES & BENEFITS

Ultra-small & lightweight with extremely low headroom

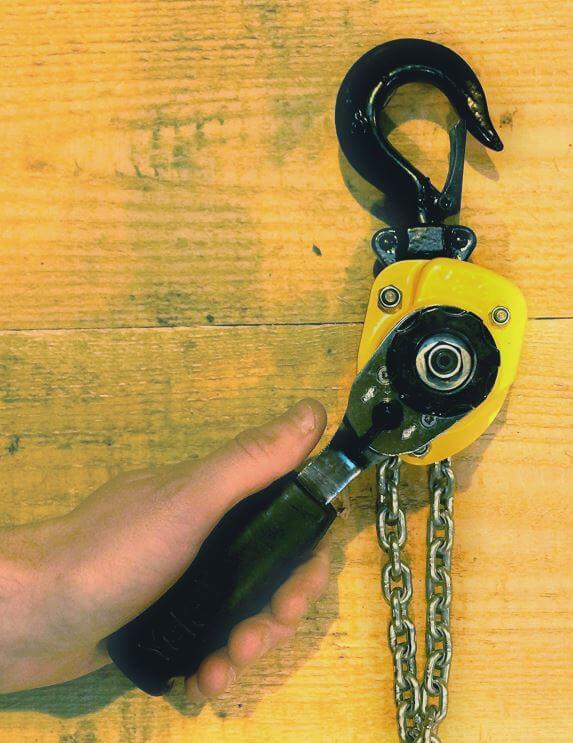

Great for use in tight workspaces with only one hand

Drop forged suspension(top) & load (bottom) swivel hooks

• 360° rotation without chain twisting
• Made from non-ageing, high tensile steel
• Fitted with robust safety latches for extra safe load attachment

The enclosed design

• Protects the internal parts from contamination.
• Manufactured from high-quality materials and are corrosion protected, ensuring a long lifetime.

Shorthand lever

Fitted with an ergonomic rubber grip for comfort and security

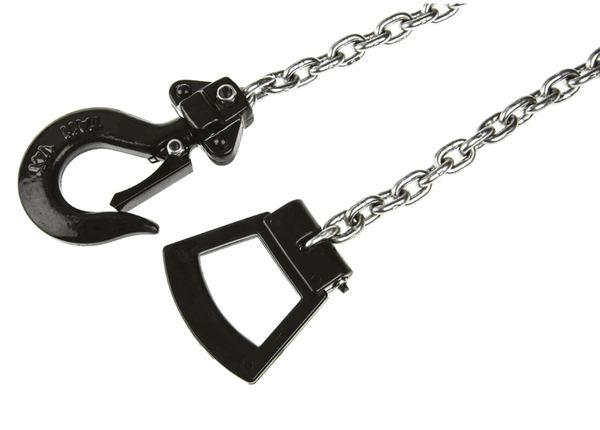

Standard free chaining device

Quickly attach the load or to pull the chain through the hoist in both directions

Alloyed steel link chain

In accordance with national and international standards and regulations.

SPECIFICATIONS

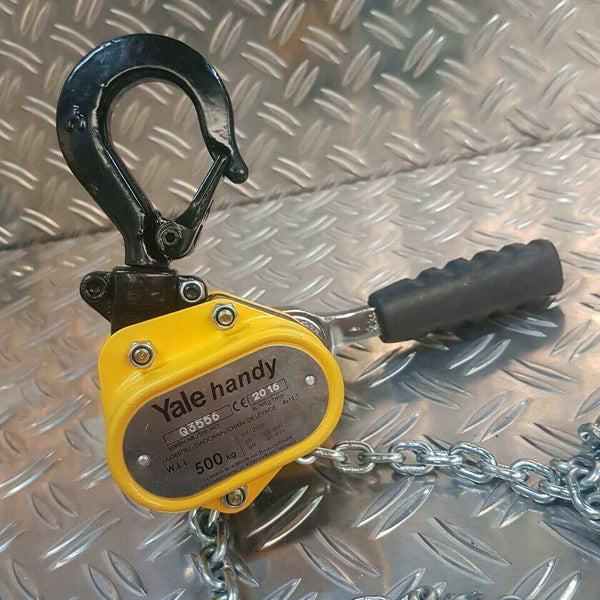

• Capacity: 250kg and 500kg
• Height of lift (H.O.L): 1.5m, 3m, 6m, 9m, 12m, 15m, 18m
• Number of Chain Fall: 1
• Handle Pull: 25 daN
• Chain Dimensions (d x p): 4 x 12mm
• Length of Lever/Handle: 160mm
• Headroom: 240mm(Yale Handy 250) & 282mm(Yale Handy 500)
• Hook Opening: 21mm(Yale Handy 250) & 24mm(Yale Handy 500)
• EC Declaration of Conformity 98/37/EEC (Appendix II A)

MORE ABOUT YALE HANDY LEVER HOISTS:

• What is a lever hoist? Also known as lever blocks and come alongs, lever hoists are portable devices and can be used for vertical and horizontal movements without power supply. They are operated by the lever/handle with one hand. Commonly used for lifting, pulling, dragging and positioning loads, the manual device is used across industries.
• Items you often need to operate a lever hoist:
  - Suspension: It can be suspended in a fixed location with a Beam Clamp or from a Push Trolley/Geared Trolley with its top hook.
  - Load Attachment: The lower hook can directly attach a load but quite commonly a lifting sling is used (in conjunction with shackles sometimes)
