Strainers & Turnbuckles

Doughty barrel strainers and turnbuckles are used to tension and adjust wire rope, safety lines and flying systems in stage rigging, theatre installations and live events. MTN Shop stocks the complete Doughty strainer range including barrel strainers, eye to eye strainers and hook and eye strainers in M8 and M10 sizes with WLL ratings up to 700kg. All products are tested and certified for professional overhead rigging applications.

Browse the full range below or visit our rigging accessories range for a complete solution. For specification guidance visit our entertainment and stage rigging guide.

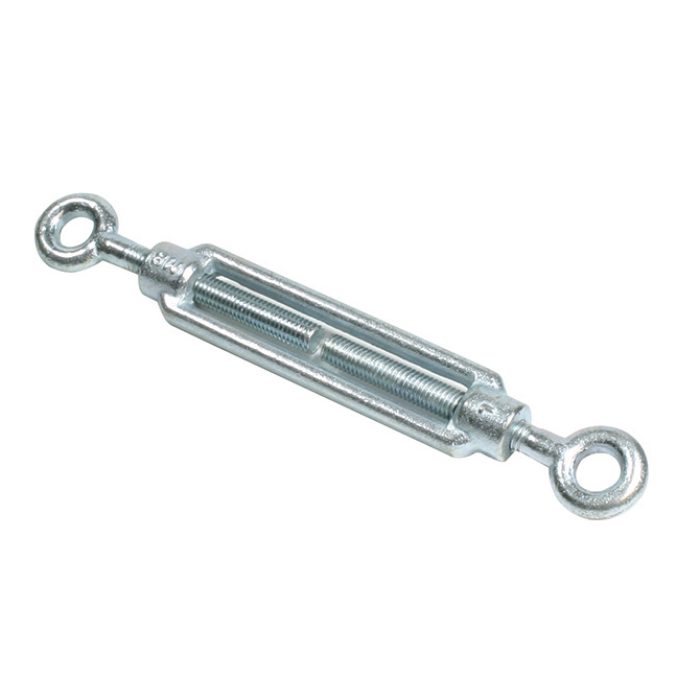

Doughty Eye to Eye Strainers - Galvanized steel turnbuckle with eye and eye design.
Loading…

3 products

View

Strainers & Turnbuckles – Product list

Doughty Barrel Strainers and Turnbuckles for Stage Rigging

Doughty barrel strainers and turnbuckles are used to apply and adjust tension in wire rope, safety lines and flying systems in theatre, TV studios and live events. They allow the rigger to fine-tune the tension of a line after installation without replacing the rope, making them an essential component in any permanent rigging installation where precise tension adjustment is required.

Products in This Range

  • Doughty Barrel Strainers: available in hook and eye and eye and eye configurations. The standard Doughty barrel strainer for general wire rope tensioning in stage rigging and suspension systems.

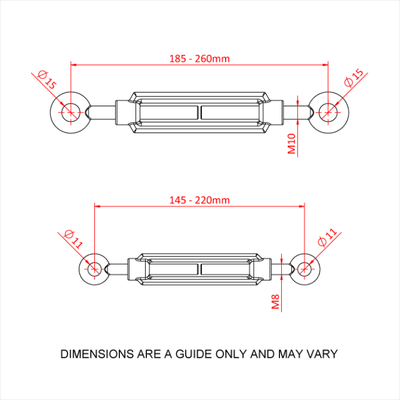

  • Doughty Eye to Eye Strainers: available in M8 (230kg WLL) and M10 (700kg WLL) in standard and tested versions. For inline wire rope tensioning where both ends connect to an eye fitting or shackle.

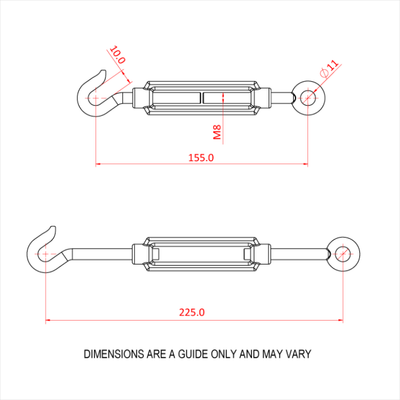

  • Doughty Hook and Eye Strainers: hook at one end and eye at the other for applications where one end connects directly to a bar, bracket or structure without a shackle.

What to Look For

  • End fitting type: eye to eye strainers connect between two shackles or eye bolts. Hook and eye strainers allow one end to hook directly onto a bar or bracket without a secondary fitting.
  • WLL: match the strainer WLL to the maximum tension in the line. Doughty eye to eye strainers are available in M8 (230kg WLL) and M10 (700kg WLL). Always verify the rated load before use.
  • Tested versions: individually proof tested versions are available for critical load-bearing applications where independent testing documentation is required.

Pair with wire rope and fittings, shackles and links and our full rigging accessories range for a complete rigging solution.

Frequently Asked Questions

Doughty barrel strainers are used to apply and adjust tension in wire rope, safety lines and flying systems in theatre and stage rigging. They allow the rigger to fine-tune the tension of a line after installation without replacing the rope. Doughty barrel strainers are available in hook and eye and eye and eye configurations with WLL ratings up to 700kg.
A Doughty eye to eye strainer has an eye fitting at both ends and connects between two shackles or eye bolts in an inline wire rope system. A Doughty hook and eye strainer has a hook at one end that connects directly to a bar, bracket or structure without a secondary shackle or eye bolt, making it faster to rig in applications where direct hook connection is acceptable.
Doughty eye to eye strainers are available in M8 with a 230kg WLL and M10 with a 700kg WLL. Always verify the maximum tension in the line including the suspended load and any dynamic forces before selecting a strainer. Tested versions are available for both sizes where independent proof testing documentation is required for the installation.
