Hook Clamps

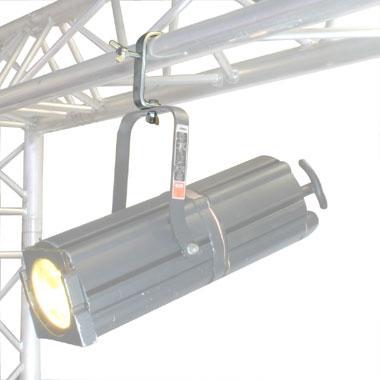

Doughty hook clamps are the industry-standard stage rigging clamp for hanging luminaires, speakers and accessories from lighting bars, scaffold tubes and truss in theatre, film, TV and live events. Also known as a pipe clamp, C clamp or truss clamp, they hook over the tube and lock in place with an M10 or M12 bolt and wing nut. Every unit is TÜV certified, CE marked and stamped with its Safe Working Load.

MTN Shop UK stocks the complete Doughty hook clamp range from 18mm to 75mm tube diameter in light duty, medium duty, heavy duty, slimline, all weather and double-ended versions. Available individually or in multi-packs. All orders dispatched from our UK warehouse.

Browse our full range of Doughty clamps and couplers or visit our entertainment and stage rigging guide for specification guidance.

Hook Clamps - MTN Shop UK
Loading…

37 products

View

Hook Clamps – Product list

Doughty Hook Clamps - Stage Lighting Pipe Clamps for Theatre and Live Events

The Doughty hook clamp is the most widely used stage rigging clamp in the world. Known as a pipe clamp or C clamp in the US, it hooks over a lighting bar or scaffold tube and locks with a single bolt and wing nut. Available in steel and aluminium, in light, medium and heavy duty versions, covering tube diameters from 18mm to 75mm, the Doughty hook clamp range covers every stage lighting application from a school drama hall to an arena touring rig.

Choose by Tube Diameter

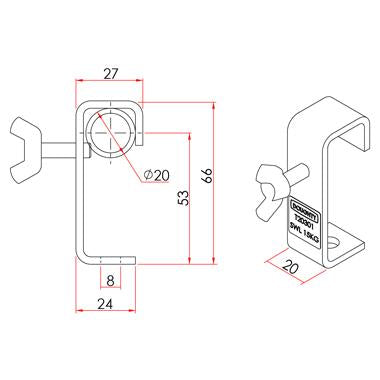

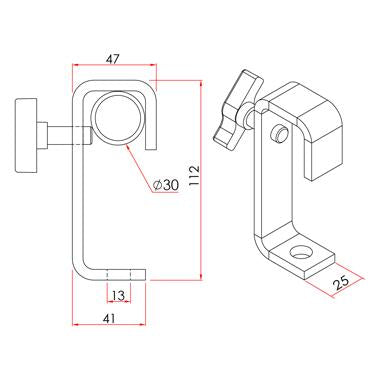

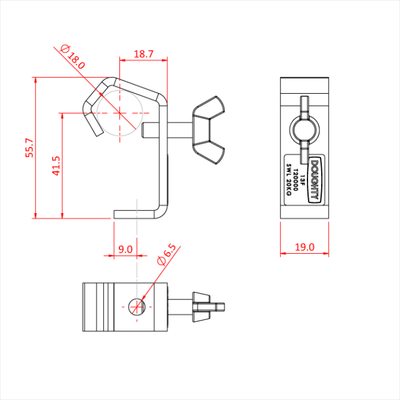

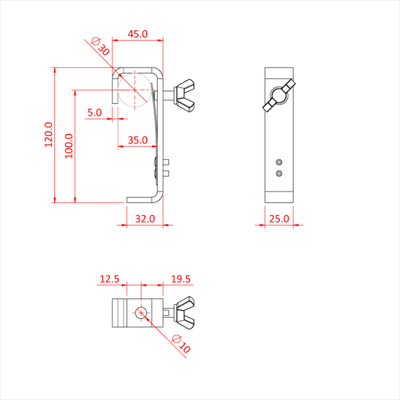

  • 18mm to 38mm: light duty hook clamps for smaller tube diameters including 18mm, 20mm and 30mm. Suitable for studio bars, stand centre tubes and decorative truss.

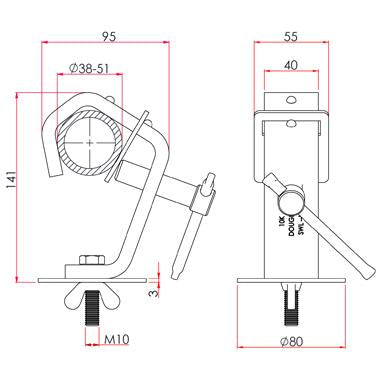

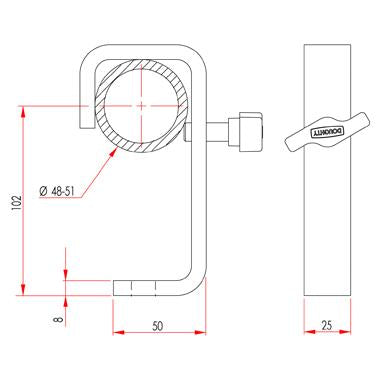

  • 48mm to 51mm: the industry standard for stage lighting bars and scaffold tube. Available in light duty, medium duty, heavy duty, slimline, compact, extra long, double-ended parallel, double-ended 90° twist, double-ended 180° twist, all weather and TV spec versions with integrated 29mm receiver.

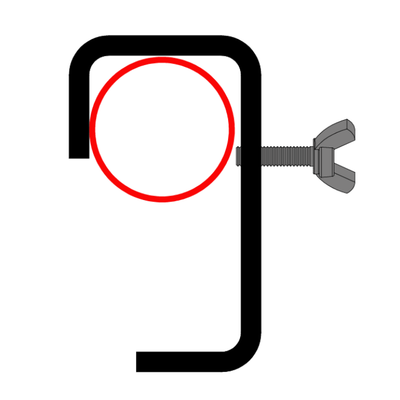

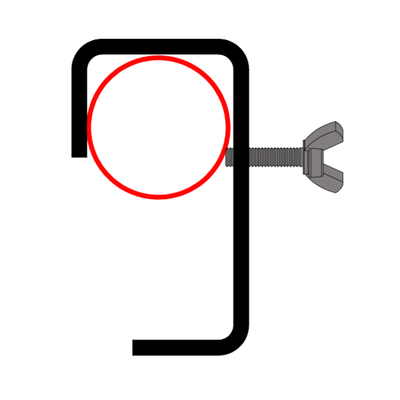

  • 60mm to 75mm: for larger tube diameters. Standard and heavy duty versions available for tubes up to 75mm.

Hook Clamp Types

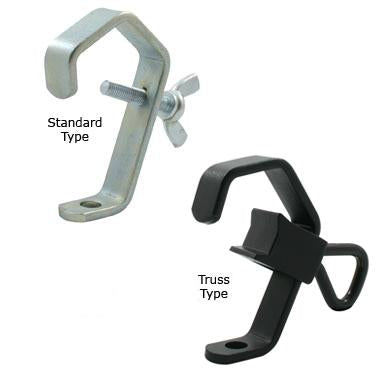

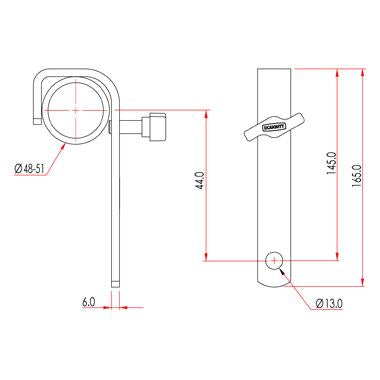

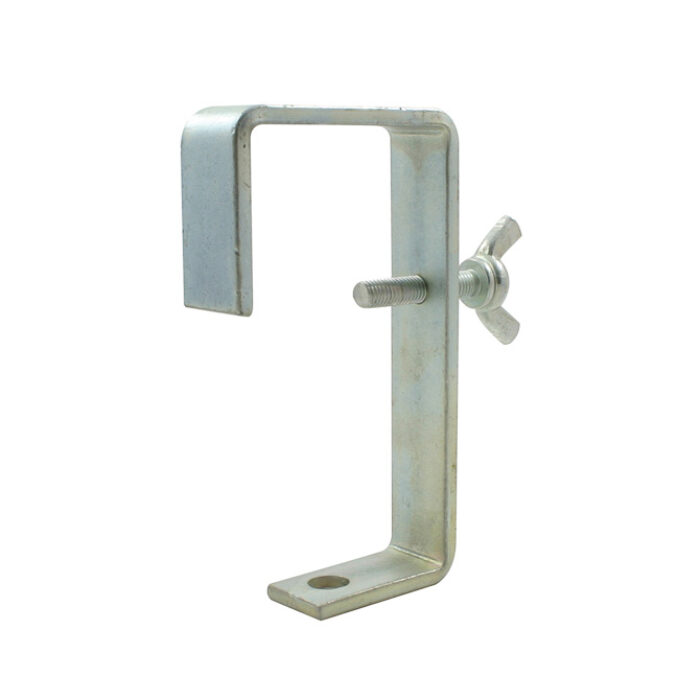

  • Standard hook clamps: the most affordable option. Steel construction, zinc plated or black powder coat, for general stage use on 48mm lighting bars.

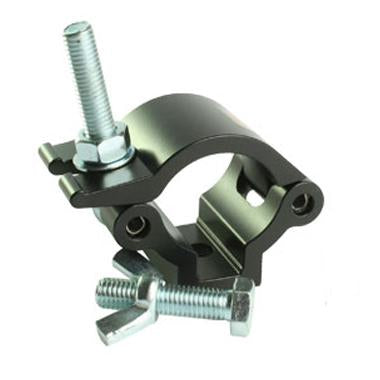

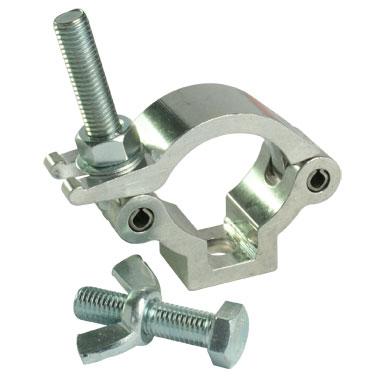

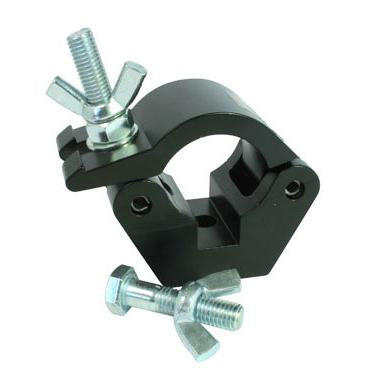

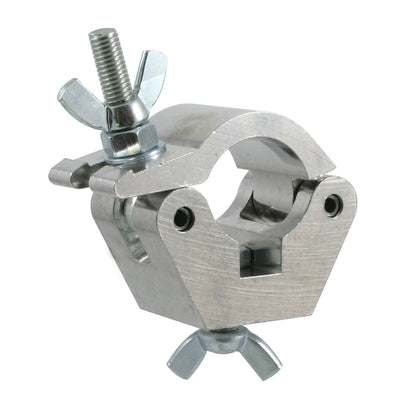

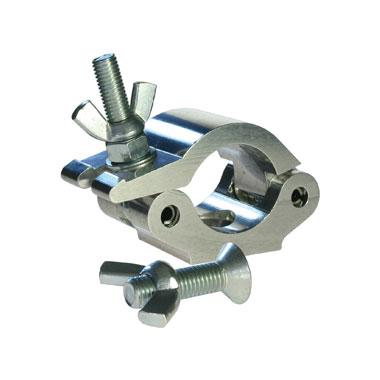

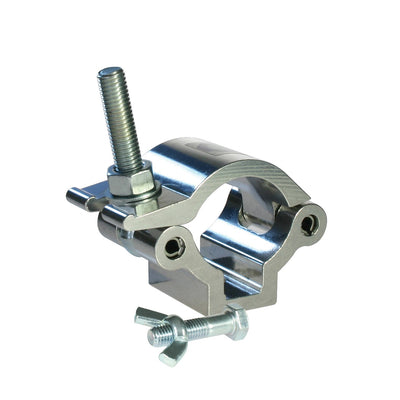

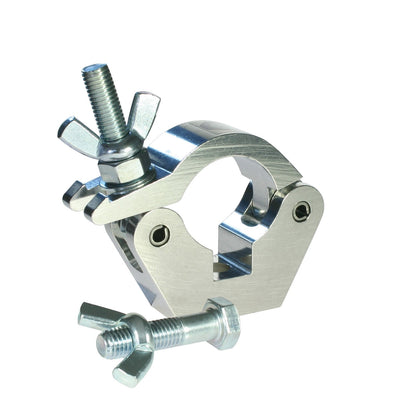

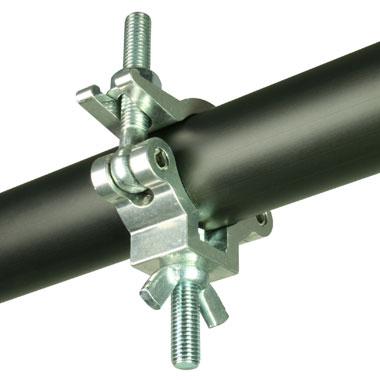

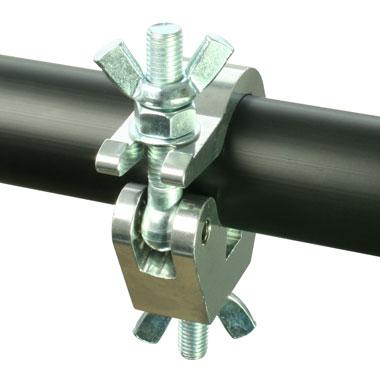

  • Lightweight and slimline versions: aluminium construction, M12 bolt fixing, 30mm wide. Fit between truss webs where standard 50mm clamps cannot clear.

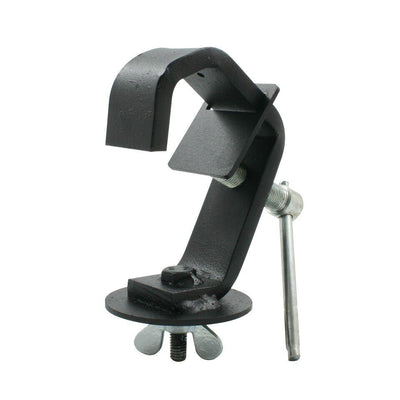

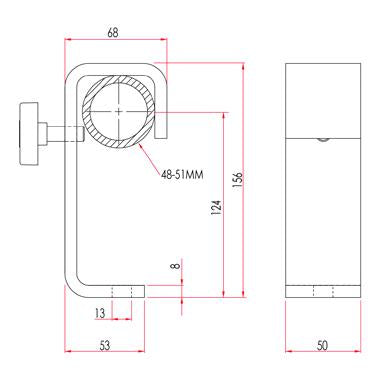

  • Heavy duty versions: higher SWL rating for heavier fixtures including moving heads and speaker cabinets.

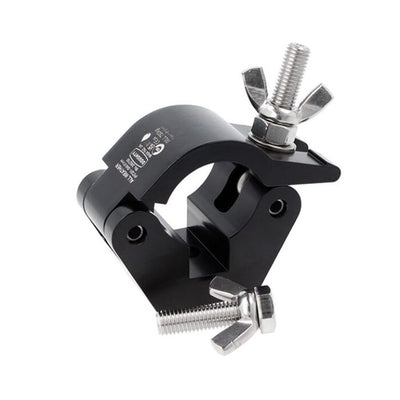

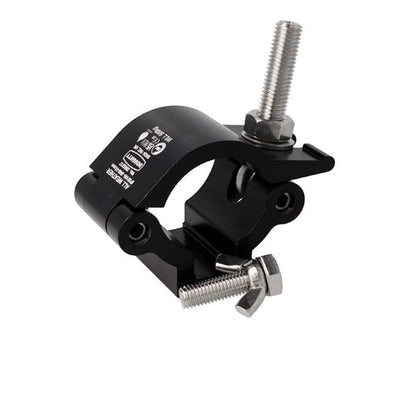

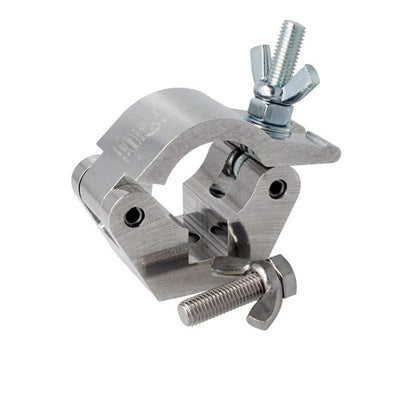

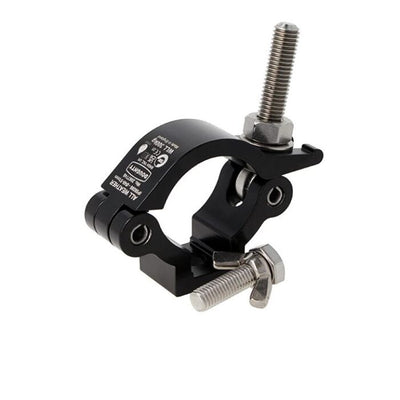

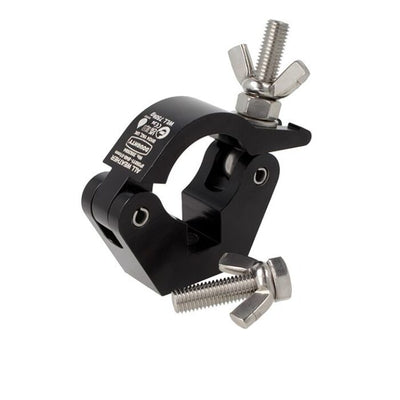

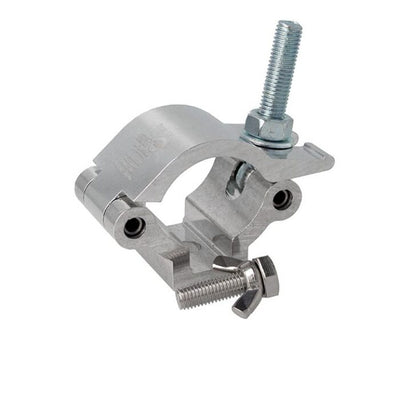

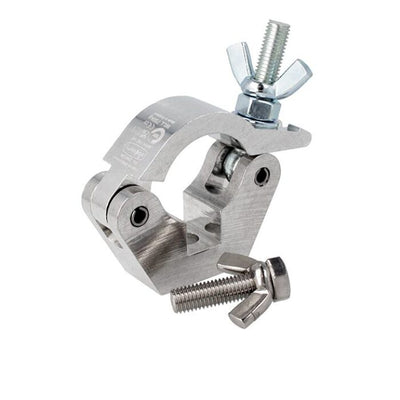

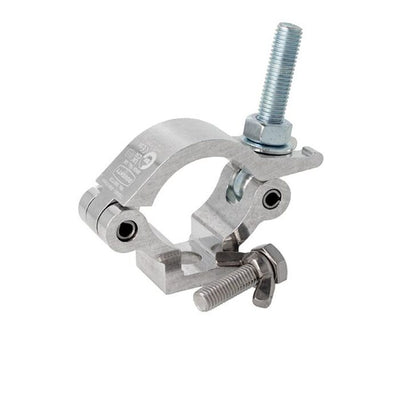

  • All weather versions: for outdoor events, festivals and installations where the clamp will be exposed to the elements.

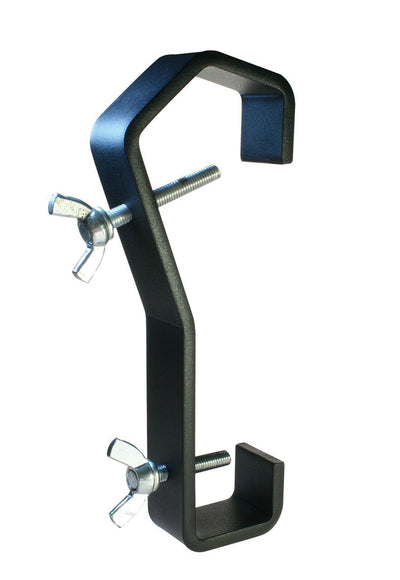

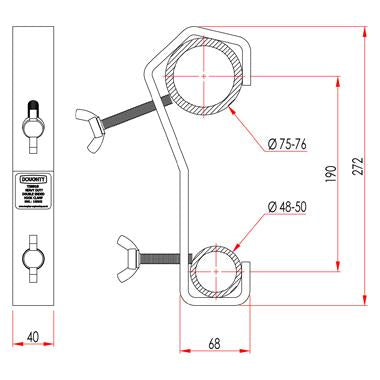

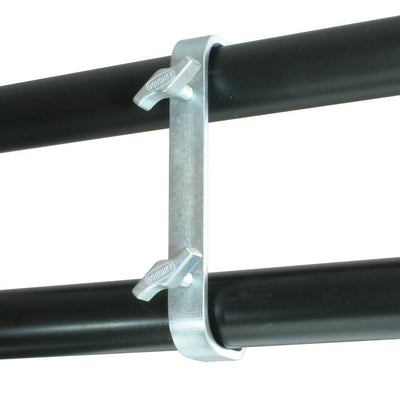

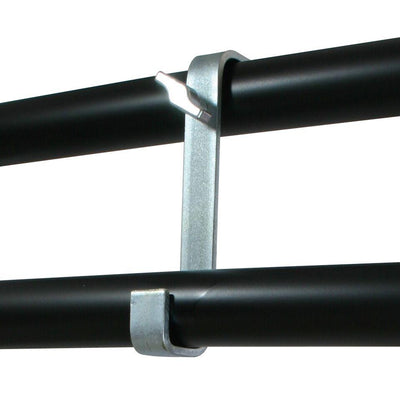

  • Double-ended versions: parallel and twist versions for mounting a single fixture or bar at two rigging points simultaneously.

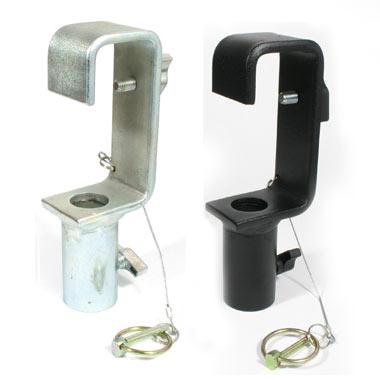

  • TV spec hook clamp: hook clamp with integrated 29mm TV spigot receiver for direct fixture connection without a separate spigot adapter.

What to Look For

  • SWL: match the rated load to your fixture weight. Doughty hook clamps start at 40kg SWL. Heavy duty versions go up to 150kg.
  • Material: steel for affordable permanent installs. Aluminium for touring and weight-sensitive rigs.
  • Width: slimline versions at 30mm wide fit between truss webs where standard 50mm clamps cannot clear.
  • Finish: zinc plated for standard use. Black powder coat for backstage environments. All Weather versions for outdoor use.

Need tool-free rigging? See our Quick Trigger Clamps for one-person operation on truss. For a full wrap-around grip and higher SWL see our Half Couplers. Always use a secondary Doughty safety bond when rigging any fixture overhead, regardless of clamp type.

Frequently Asked Questions

A Doughty hook clamp, also known as a pipe clamp or C clamp, is used to hang stage lighting fixtures, speakers and rigging accessories from lighting bars, scaffold tubes and truss in theatre, film, TV and live events. It hooks over the tube and locks with a single bolt and wing nut. All Doughty hook clamps are TÜV certified and stamped with their Safe Working Load.
Doughty hook clamps are available from 18mm up to 75mm tube diameter. The 48mm to 51mm versions are the industry standard for stage lighting bars and scaffold tube in the UK. Light duty hook clamps are available for 18mm, 20mm and 30mm tube. Heavy duty versions are available for 75mm tube. Always check the individual product listing to confirm the tube diameter before ordering.
A Doughty light duty hook clamp has a lower SWL rating and is suitable for lighter stage lighting fixtures. A Doughty heavy duty hook clamp has a higher SWL rating for heavier fixtures including moving heads and speaker cabinets. Both versions are available for standard 48mm tube. Always verify the clamp SWL against the total weight of the fixture, cable and all attached accessories before rigging overhead.
