Yale TZR Load Indicator with Digital Display & Radio Control
Product No. TZR 2.5
Please note if you order less than £50 worth of Yale products, your order will be refunded.
Shipping calculator
Payment methods
Product details
YALE Load Indicator w/Digital Display & Radio Control
The Yale load indicator TZR is compact measuring devices for the weighing of loads. The TZR model is the digital display unit that comes complete with a radio remote control. The TZL model with the standard digital display unit is also available.
On account of their flexibility, these load indicators are suitable for a multitude of applications. Whether used as a conventional crane weigher or to measure forces, it is the economical choice for various applications. They are very simple and straight forward to use!
The load indicators have a liquid crystal display (LCD), which can tare as
well as show either the gross or the net load. It also indicates overload at 110% of the rated capacity and the status of the battery.

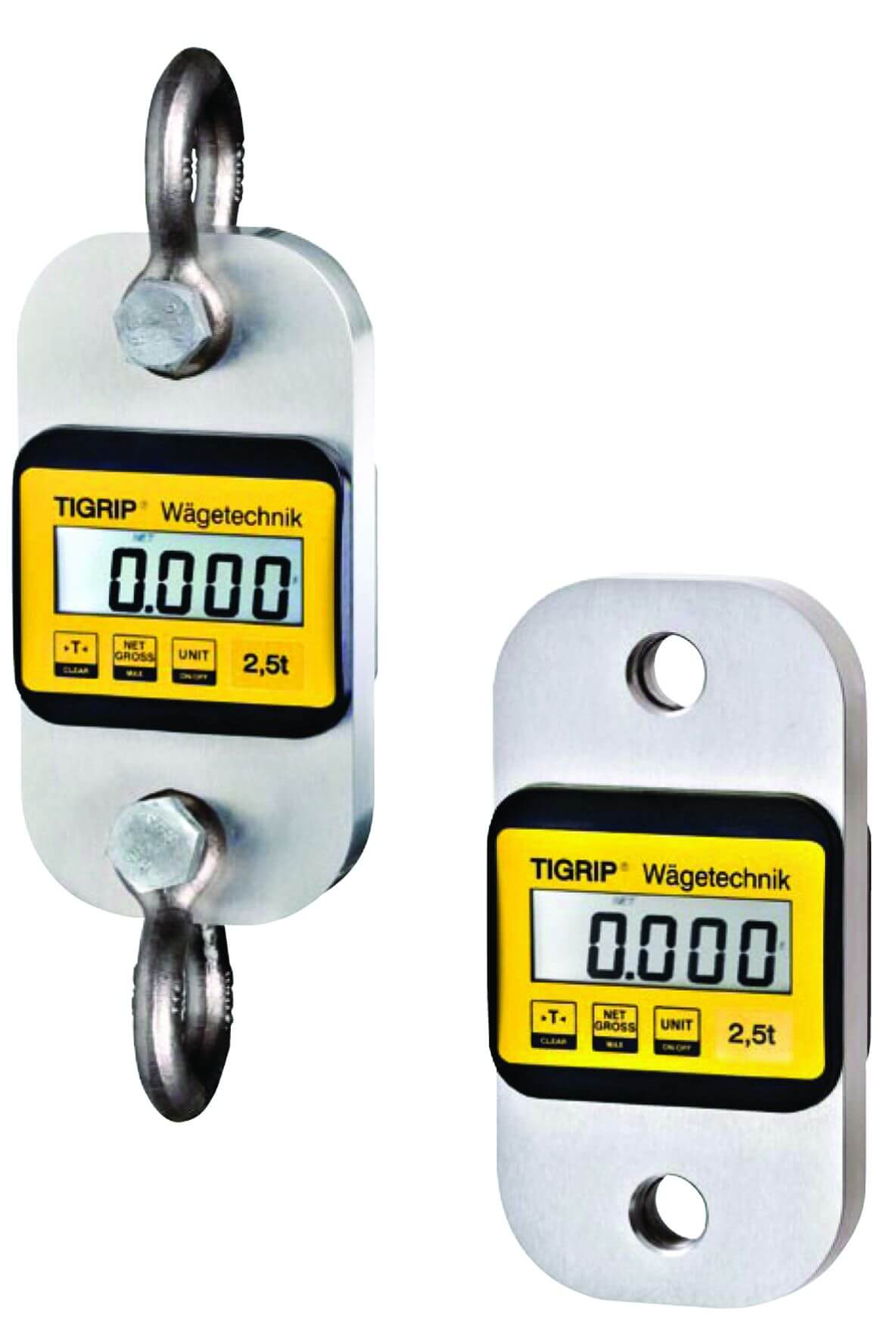

*Shackles shown in the photograph are not supplied as standard*
Technical Data:
- Operation time, approximately 200 hours with 4 x 1.5V AA batteries.
- Temperature range when in operation -10 C to +50 C.
- Temperature range when in storage -20 C to +70 C.
- IP 54 protection.
- 20.5 mm high LCD display (4.5 digits).
- Tare range is 100% of rated capacity.
- Overload warning at 110% of the rated capacity.
User Manual - Dimensions & Technical Spec

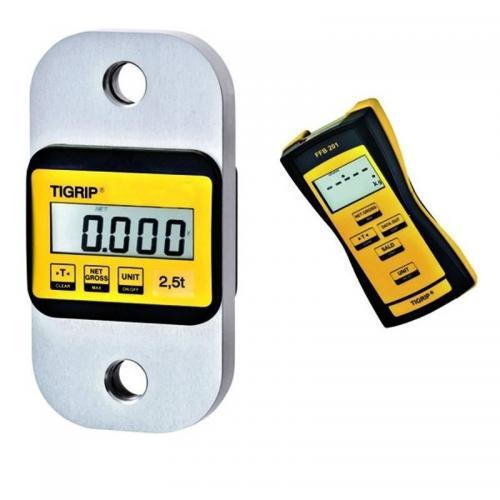

Model: TZR (WITH remote control)
The TZR load indicator can be operated by radio control. The displayed
values can be taken off the remote control device and can be easily
transferred to a PC. The system can be combined with an easy-to-read
display. Several measured values can be totalled and saved.
FEATURES & BENEFITS
- TZR has the same features as the TZL model plus:
- Remote control and data exchange via radio transmission.
- USB interface.
- Accumulation memory
INCLUDED IN DELIVERY OF TKR:
- Load indicator.
- Remote control with display.
- 7 x 1.5 V AA batteries.
- Test certificate.
- PC cable (RS232).
- User software.
- Carrying case
