Doughty Heavy Duty Quad Sheave Pulley
£154.65
Doughty Heavy Duty Quad Sheave Pulley
£185.58incl. VAT
Incl. VAT. Shipping calculated at checkout.
In stock
Shipping 3–7 days
Minimum order value of £45
Minimum order value of £45 is required to place an order for all Doughty products.
1 Year Warranty
Size:
100mm
Use:
Wire Rope
- Exceptional Durability. Built with 5mm thick steel side plates - designed for heavy-duty performance in demanding environments such as theatre and film productions.
- Smooth Operation. Features nylon sheaves and ball-raced bearings - ensures friction-free operation for reliable rigging in live events and touring.
- Versatile Sheave Sizes. Available in 100mm, 150mm, and 200mm options - caters to various load capacities with WLLs of up to 600kgs, making it ideal for diverse applications.
- Adaptable Compatibility. Pulleys designed for both fibre and wire ropes - provides flexibility in rigging setups tailored to your equipment needs.
- Extensive Bracket Range. Offered with multiple bracket options - easy integration into existing systems for seamless setups in quick-change scenarios.
klarna.
Add an item to see installment options
Heavy-Duty Stage Pulley with a Range of Brackets to Suit

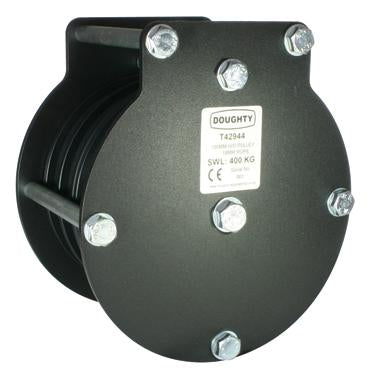

The Doughty heavy-duty quad-sheave pulleys are constructed from nylon sheaves together with ball raced bearings for smooth friction free operation. Side plates are constructed from 5mm thick steel giving an extremely strong construction.
These stage pulleys are available with 100mm, 150mm and 200mm sheaves with WLLs of 200, 400 and 600kgs respectively. They are available for both fibre and wire ropes together with a range of bracketry to suit. A basic single sheave pulley ready to accept any of our range of fixings. Heavy-Duty Double/Triple/Quin Sheave Pulleys are also available.
To order pulleys please state part numbers of:
1. Basic Pulley required
2. Fixing System required
ie. T42931 + T42984 = 100mm Single Pulley (for Rope) fitted with Awning Brackets. For any inquiries, please contact us via chat.
Specifications:

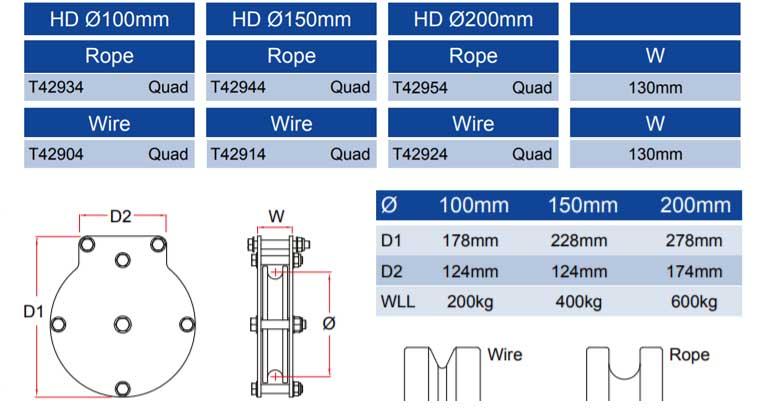

- Sizes and SWL: See the image for details
- The recommended sizes for Hand Ropes & Wires are:
100mm Diameter Sheave - 12mm Rope – 4mm Wire
150mm Diameter Sheave - 18mm Rope – 6mm Wire
200mm Diameter Sheave - 18mm Rope – 6mm Wire
Brackets for Heavy Duty Stage Pulleys:
- Multibeam Brackets: For wall or ceiling applications
- Pulley Awnings: To be used with a shackle
- Universal Plate Assembly: To be mounted to tubes
- Wall Mounting Plates: Convert an existing pulley into a wall-mounted pulley
