Doughty Heavy Duty Single Sheave Pulley
£69.86
Doughty Heavy Duty Single Sheave Pulley
£83.83incl. VAT
Incl. VAT. Shipping calculated at checkout.
In stock
Shipping 3–7 days
Minimum order value of £45
Minimum order value of £45 is required to place an order for all Doughty products.
1 Year Warranty
Size:
100mm
Use:
Wire Rope
- Smooth Operation. Experience friction-free performance with nylon sheaves and ball raced bearings - perfect for fast-paced live events and broadcasting setups.
- Exceptional Strength. Built with 5mm thick steel side plates for enhanced durability - supports WLLs of up to 600kgs for demanding rigging scenarios.
- Versatile Sizing. Available in 100mm, 150mm, and 200mm sheave options - easily accommodates both fibre and wire ropes for flexible applications.
- Customizable Bracketry. Compatible with a range of fixings and brackets, including awning brackets - ensures seamless integration into your existing rigging setup.
- Robust Design. Engineered for heavy-duty use, ideal for theatre, film, and touring productions - maximize reliability under intensive load conditions.
klarna.
Add an item to see installment options
Heavy-Duty Stage Pulley with a Range of Brackets to Suit

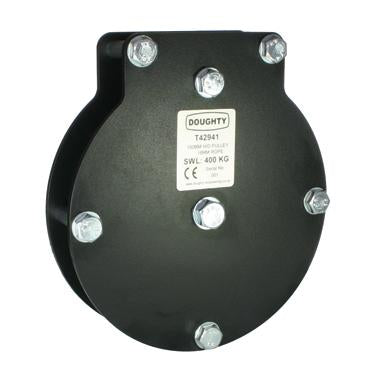

The Doughty Heavy Duty Stage Pulleys are constructed from nylon sheaves together with ball raced bearings for smooth friction-free operation. Side plates are constructed from 5mm thick steel giving an extremely strong construction.
Heavy-Duty Stage Pulleys are available with 100mm, 150mm and 200mm sheaves with WLLs of 200, 400 and 600kgs respectively.
Pulleys are available for both fibre and wire ropes together with a range of bracketry to suit. A basic single sheave pulley is ready to accept any of our range of fixings. Heavy-Duty Double/Triple/Quad/Quin Sheave Pulleys are also available.
To order pulleys please state part numbers of:
1. Basic Pulley required
2. Fixing System required
ie. T42931 + T42984 = 100mm Single Pulley (for Rope) fitted with Awning Brackets. For any inquiries, please contact us via chat.
Specifications:
- Width: 50mm

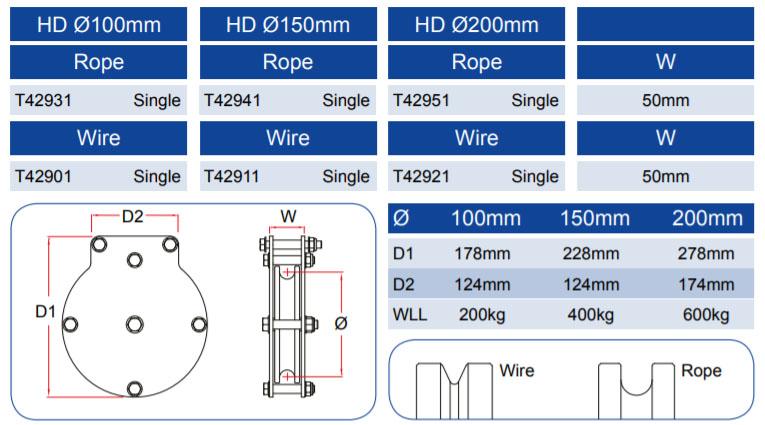

- Sizes and SWL: See the image for details
- The recommended sizes and for Hand Ropes & Wires are:
100mm Diameter Sheave - 12mm Rope – 4mm Wire
150mm Diameter Sheave - 18mm Rope – 6mm Wire
200mm Diameter Sheave - 18mm Rope – 6mm Wire
Brackets for Heavy Duty Stage Pulleys:
- Multibeam Brackets: For wall or ceiling applications
- Pulley Awnings: To be used with a shackle
- Universal Plate Assembly: To be mounted to tubes
- Wall Mounting Plates: Convert an existing pulley into a wall-mounted pulley
