Doughty Heavy Duty Double Sheave Pulley
£98.10
Doughty Heavy Duty Double Sheave Pulley
£117.72incl. VAT
Incl. VAT. Shipping calculated at checkout.
In stock
Shipping 3–7 days
Minimum order value of £45
Minimum order value of £45 is required to place an order for all Doughty products.
1 Year Warranty
200mm:
100mm
Wire Rope:
Wire Rope
- Smooth Operation. Experience friction-free movement with nylon sheaves and ball raced bearings - designed for heavy-duty performance in demanding environments.
- Robust Build. Constructed from 5mm thick steel for exceptional strength - perfect for the rigorous needs of theatre, film, and live events.
- Versatile Sheave Sizes. Choose from 100mm, 150mm, and 200mm options to match your load requirements - accommodating WLLs of 200, 400, and 600kgs.
- Adaptable Compatibility. Suitable for both fibre and wire ropes, with a range of brackets available - ensuring a tailored solution for your rigging needs.
- Professional Reliability. Trusted by industry experts in TV, film, and theatre - delivering dependable performance for every production.
klarna.
Add an item to see installment options

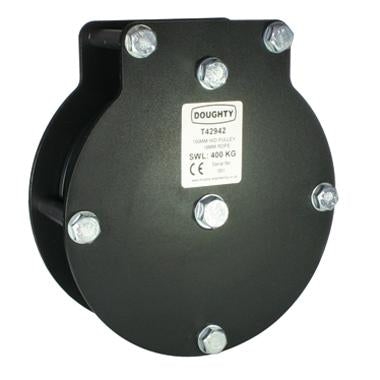

Heavy-Duty Stage Pulley
The Doughty Heavy-Duty Stage Pulleys are constructed from nylon sheaves together with ball raced bearings for smooth friction-free operation. Side plates are constructed from 5mm thick steel giving an extremely strong construction.
The heavy-duty double sheave pulleys are available with 100mm, 150mm and 200mm sheaves with WLLs of 200, 400 and 600kgs respectively. They are available for both fibre and wire ropes together with a range of bracketry to suit. Widely used in the theatre, film and TV Industry.
A basic single sheave pulley ready to accept any of our range of fixings. Heavy-Duty Triple/Quad/Quin Sheave Pulleys are also available.
To order pulleys please state part numbers of:
1. Basic Pulley required
2. Fixing System required
ie. T42931 + T42984 = 100mm Single Pulley (for Rope) fitted with Awning Brackets. For any inquiries, please contact us via chat.
Specifications:

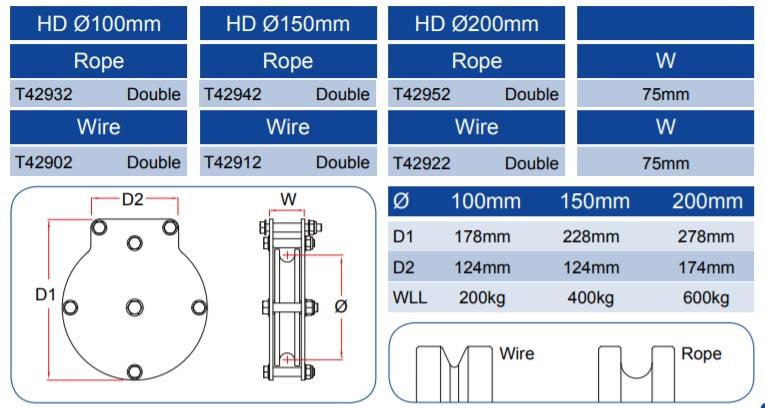

- Sizes and SWL: See the image for details
- Width: 75mm
- The recommended sizes and for Hand Ropes & Wires are:
100mm Diameter Sheave - 12mm Rope – 4mm Wire
150mm Diameter Sheave - 18mm Rope – 6mm Wire
200mm Diameter Sheave - 18mm Rope – 6mm Wire
Brackets for Heavy Duty Double Sheave Pulleys:
- Multibeam Brackets: For wall or ceiling applications
- Pulley Awnings: To be used with a shackle
- Universal Plate Assembly: To be mounted to tubes
- Wall Mounting Plates: Convert an existing pulley into a wall-mounted pulley
