Doughty SixTrack- End Plate/Adaptor Plate [Multi-Pack]

End Plate / Adaptor Plate for Stage Curtain Track

''Six Track'' is a curtain track system made up of a variety of interchangeable parts to provide a flexible efficient system. Six Track can be cut on-site and fitted with an Adaptor Plate or End Plate. A minimum of four fixings is required per joint.

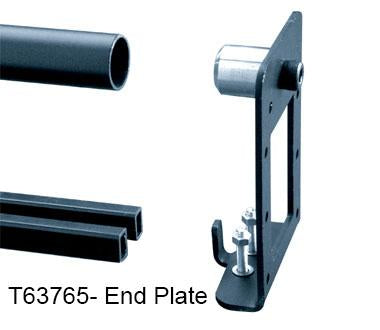

End Pate (T63765): It is used to terminate a section of Six Track which can be cut to a customized size on site. By using this plate you can greatly reduce installation times by not using special 'one-off' sections. Besides, on-site welding is not required. Two 5mm diameter holes are required to be drilled.

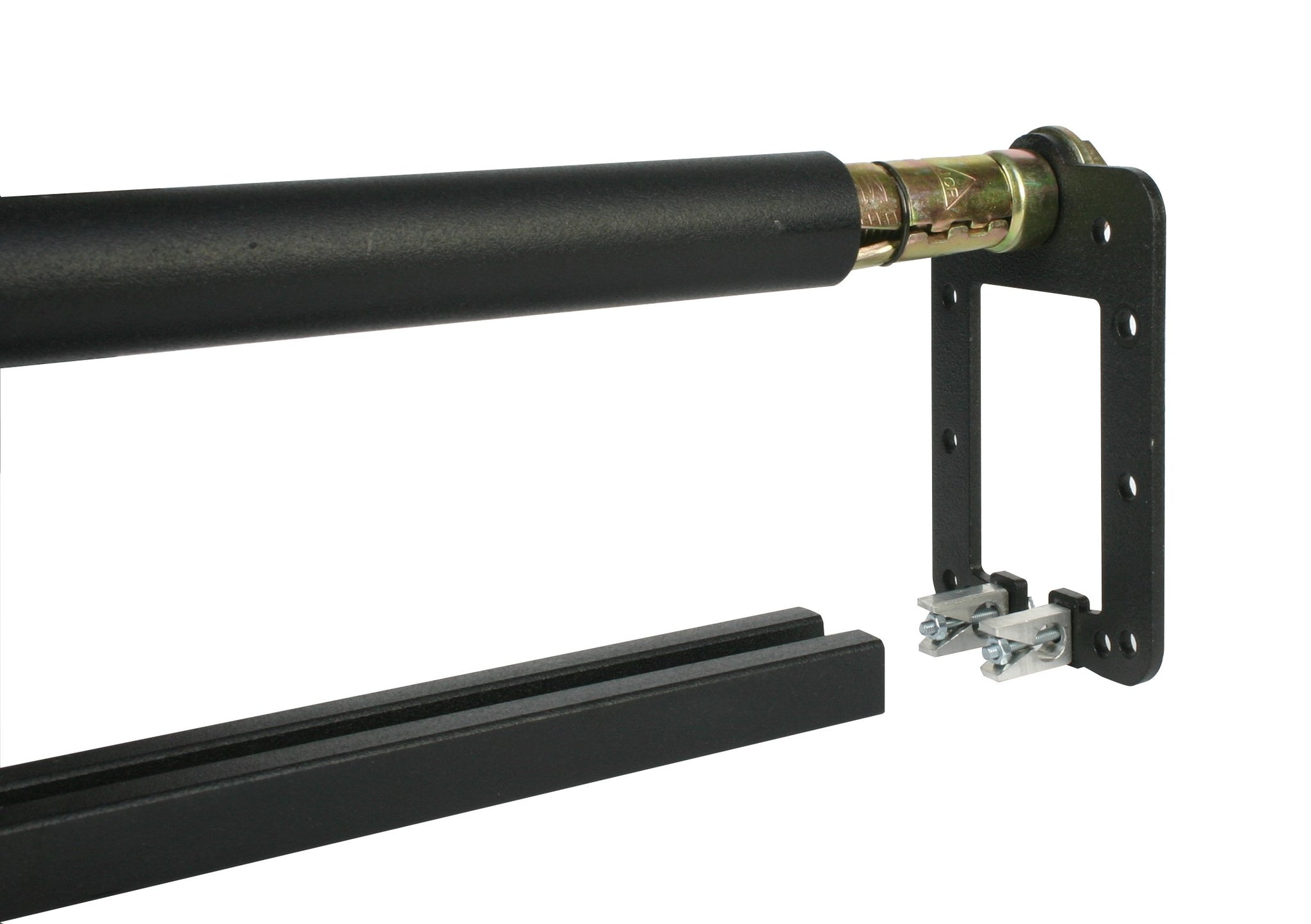

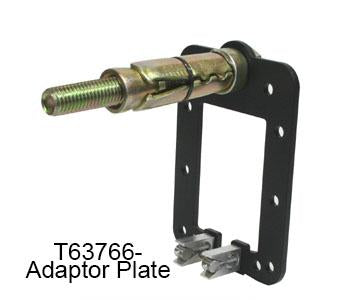

Adaptor Plate (T63766): It uses three expanding plugs to terminate a standard piece of track which can be cut to a special length. This plate allows runners to pass through it, allowing it to be used in the middle of a track as well.
