Doughty Rail - Top Hat Bracket

Doughty rail is an Extruded Aluminium Walk-along Curtain Rail System. The compact and low-profile design makes Doughy rail highly versatile and perfectly meets the needs of smaller studios, drama studios, black box theatres, churches, schools, village halls, architectural and residential projects, and even pubs.

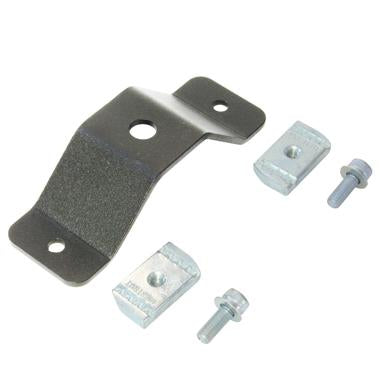

The Doughty Rail Top Hat Bracket is a mild steel bracket. Secured in place with M6 Unistrut nuts, the ceiling mount enables Doughty Rail to be fixed with an M10 stud, giving approximately 15mm and 40mm of height adjustment.

Doughty Rail User Manual


Specifications:

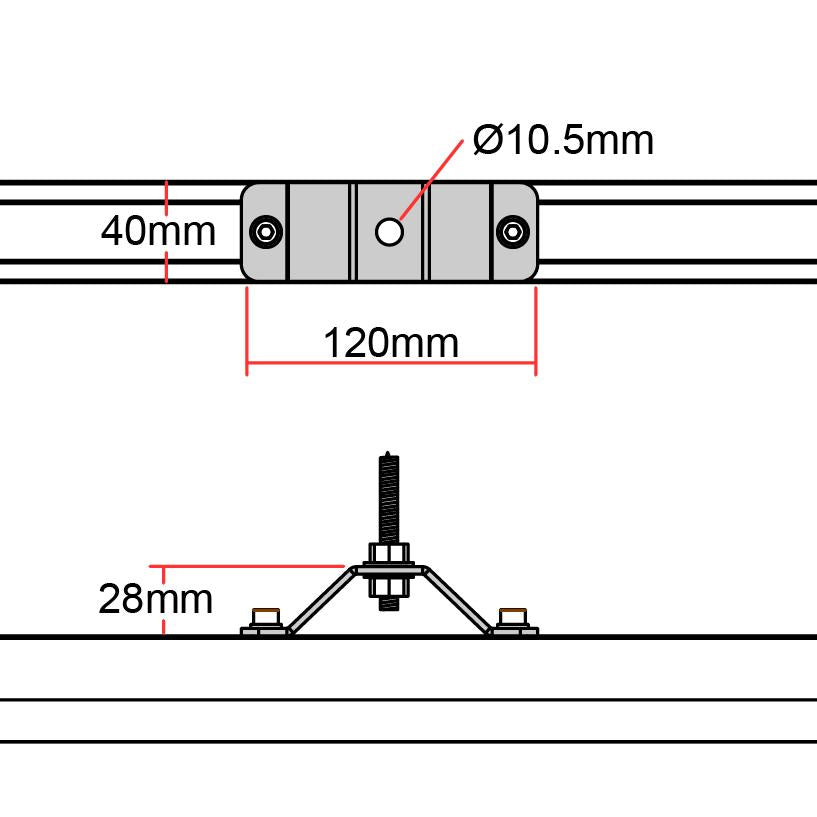

  • Dimension: 40mm x 120mm

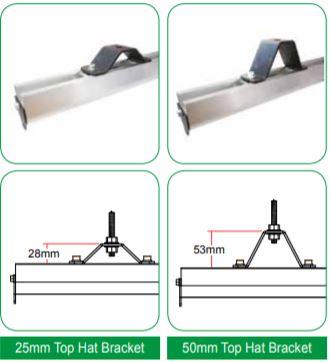

  • Height: 25mm(H) and 50mm(H)
  • SWL: 60kg (same for both Top Hats)
  • Material: Steel
  • Finish: Powder-Painted Black
  • Weight:
    25mm Top Hat: 0.46kg
    50mm Top Hat: 0.47kg
  • Height adjustment:
    25mm Top Hat: 15mm
    50mm Top Hat: 40mm

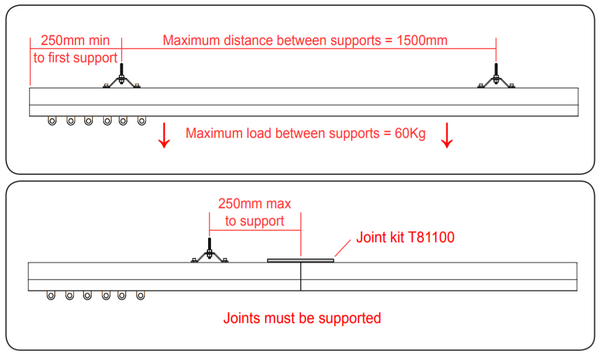

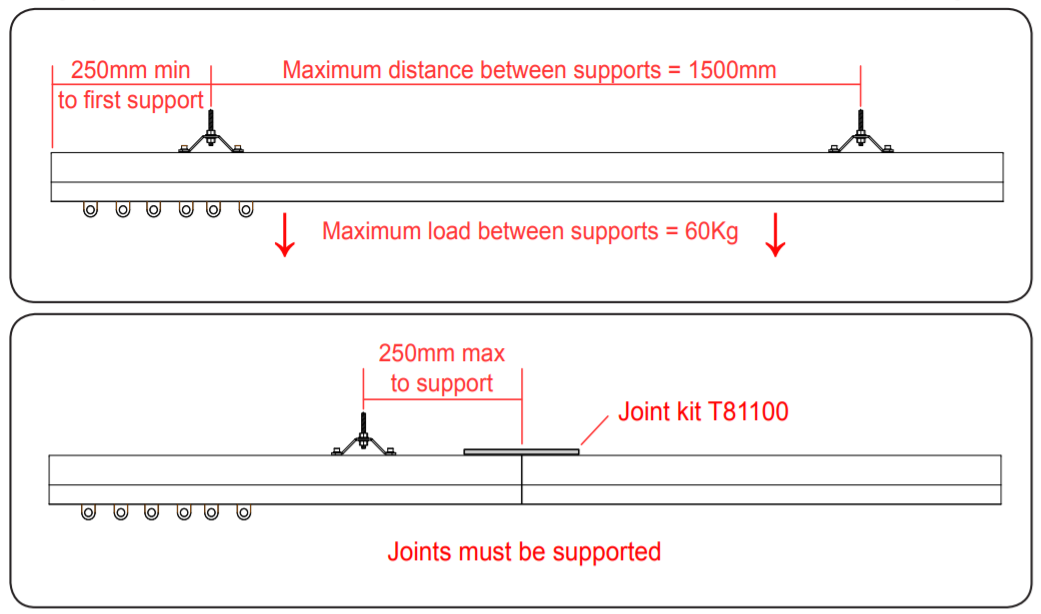

Doughty Rail System Diagram:

For the detailed installation, please always refer to the user manual. Installation should only be carried out by a competent person who is familiar with track/rail installations. The installer must make sure the structure of the building and method of installation is suitable to hold Doughty Rail and loads safely.

A) Straight rail without joint


Doughty Rail System



B) Straight rail with Joint

Doughty Rail System
