STAGE CURTAIN TRACK - LOW PROFILE ALUMINIUM CURTAIN RAIL SYSTEM

Doughty rail is an Extruded Aluminium Walk-along Curtain Rail System. The compact and low-profile design makes it highly versatile and perfectly meet the needs of smaller studios, drama studios, black box theatres, churches, schools, village halls, architectural and residential projects, and even pubs.

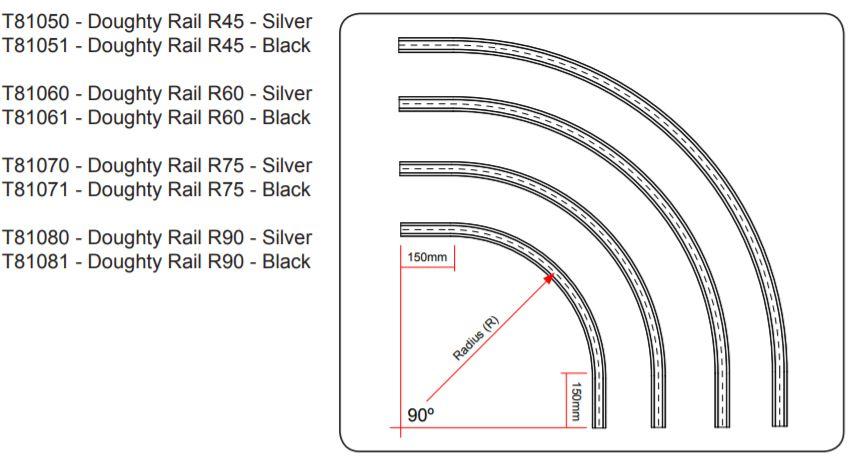

Each Curve features a 150mm straight lead-in and 150mm lead-out.

DOUGHTY RAIL DESIGN MAKES INSTALLATION QUICKER & EASIER IN MOST SITUATIONS

The top suspension channel is dimensioned to work with 'Unistrut' nuts to ensure quick and easy fixing with other components for installation. A wide variety of brackets are available for suspending the rail in most situations, e.g

• Corner-mounted
• Ceiling-mounted
• Wall-mounted

It also features a unique joint pin system that aids assembly and joint alignment easily. To make your rail curtain system more flexible, the Doughty rail can be cut to length on-site and there is a drilling jig available to easily re-drill the joint holes accurately. Straight sections are also available.

"Doughty Rail is an innovative, semi professional product that will perfectly meet the requirements of users who do not need to invest in the heavy duty products required by big theatres and large scale entertainment venues," said Mark Chorley, design engineer at Doughty

Doughty Rail User Manual

Features, Benefits & Specifications of Doughty Rail

• Single swipe or overlap curtains
• Walkalong system only: If a line-operated curtain track system is needed, Doughty Six Track Kit- Line Operated System can be an alternative.
• Low profile extruded aluminium section: A great and budget solution to venues where space is tight.
• Wide range of brackets for flexible applications: As a flexible curtain rail system, Doughty rail can be mounted in various locations with different types of brackets to fit the venue design.
• Easily cut: Doughty Rail can be cut to size on-site but care must be taken to remove all sharp edges

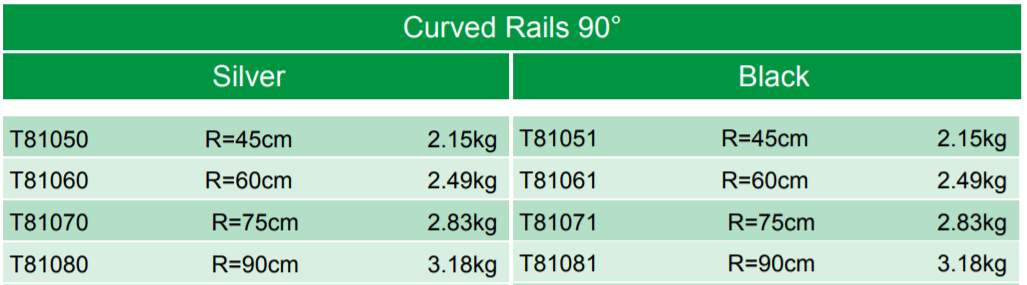

• Radius & Weight: 45cm(2.15kg), 60cm(2.49kg), 75cm(2.83kg) & 90cm(3.18kg)

• Dimension: 43mm(H) x 41mm(D)

• Maximum load between supports: 60kg
• Maximum distance between supports: 1500mm
• Recommended distance between runners: 300mm
• Ball raced runner WLL: 6kg per each
• Material: Aluminum
• Finish: Natural Aluminium and Black

A Wide Range of Rail Accessories

Discover the full list of Doughty Rail accessories for the unique adaptability to your needs.

B R A C K E T S

• Ceiling Bracket

• Corner Bracket

• Wall Bracket

• Top Hat Brackets (25mm and 50mm)

E N D  S T O P S

• Regular End Stop
• Slide-In End Stop

O T H E R S

• Ball Raced Runner
• Joint Kit
• Channel Nut

Doughty Rail Set Up

A) The straight rail in the whole piece

B) The joint straight rail
