Doughty Flyrail Cleats
Doughty Flyrail Cleats £19.33
  • Doughty flyrail cleats — black cast iron wall-mounted cleats for securing and belaying hauling lines at the fly floor in theatre counterweight fly systems
  • Doughty Flyrail Cleats Use - imagen 2

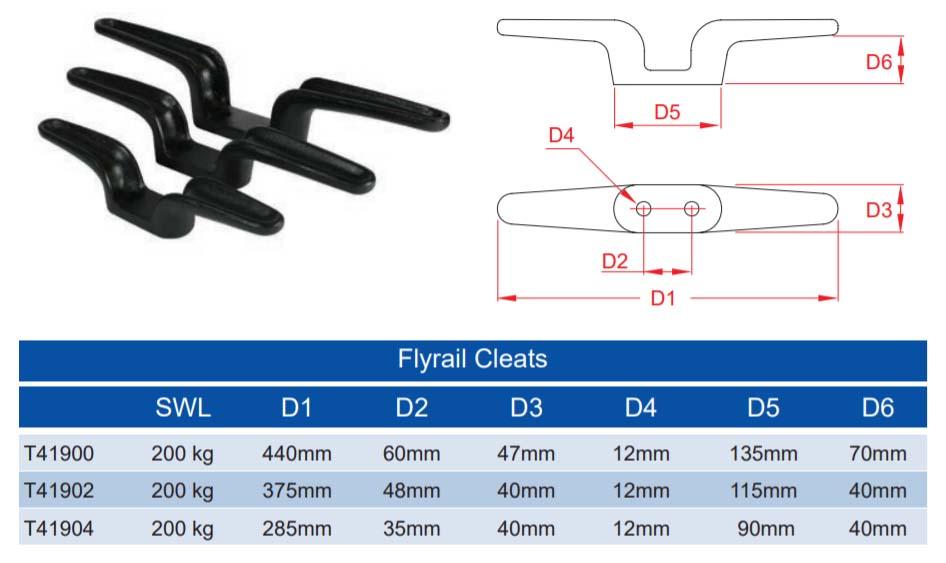

  • Doughty Flyrail Cleat Size - imagen 3

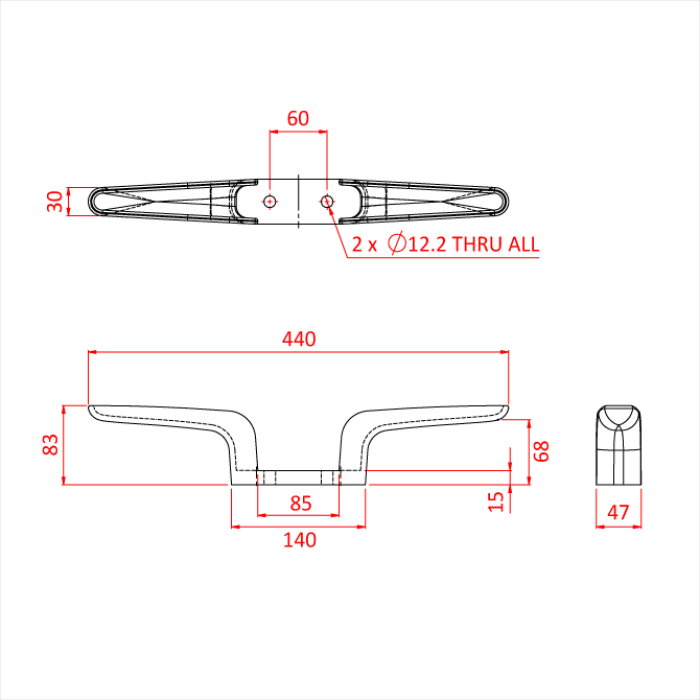

  • Doughty Engineering - Doughty Flyrail Cleats - The image is a technical drawing of a bracket or handle-like component with multiple views. The top view shows a length of 60 mm, with two circular holes marked "2 x ⌀12.2 THRU ALL." The side view shows dimensions of 440 mm length, 140 mm width, and various height measurements: 83 mm, 68 mm, and 15 mm. A section view on the right displays a width of 47 mm. The lines are detailed in black with red dimension labels and lines. - T41904 - imagen 4
  • Doughty Engineering - Doughty Flyrail Cleats - The image displays a technical drawing of a cleat with dimensions labeled in millimeters. It includes a top view, side view, and end view. The top view shows a length of 375 mm, with two central holes, each 12.2 mm in diameter. The side view highlights a height of 63 mm, and the end view illustrates a width of 41.5 mm. Various other detailed measurements are marked to aid in manufacturing or inspection. - T41904 - imagen 5
  • Doughty Flyrail Cleats - Technical drawing of stainless steel boat cleat. - imagen 6
  • Doughty Flyrail Cleats - Steel cleat technical drawing with dimensions and specifications. - imagen 7

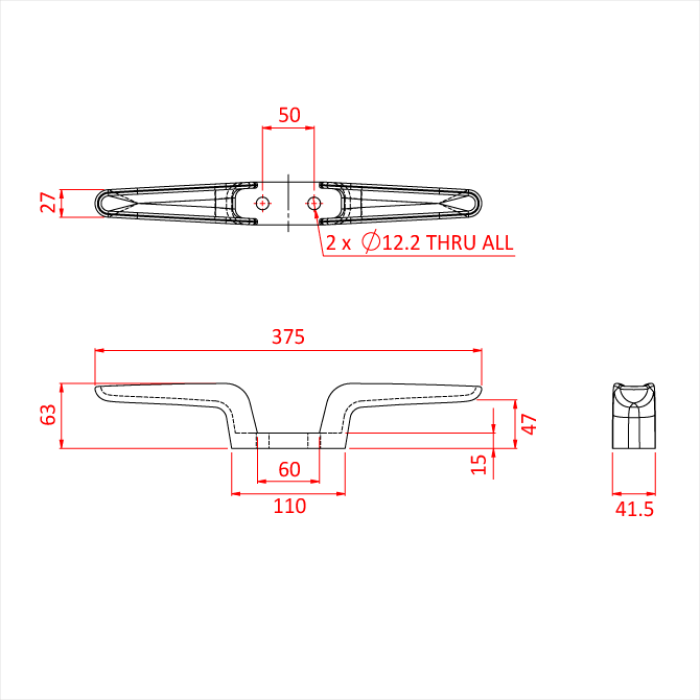

  • Doughty Flyrail Cleats - Boat cleat technical drawing with detailed measurements. - imagen 8
  • Doughty Flyrail Cleats - Metal cleat with precise measurements and dual bolt holes. - imagen 9

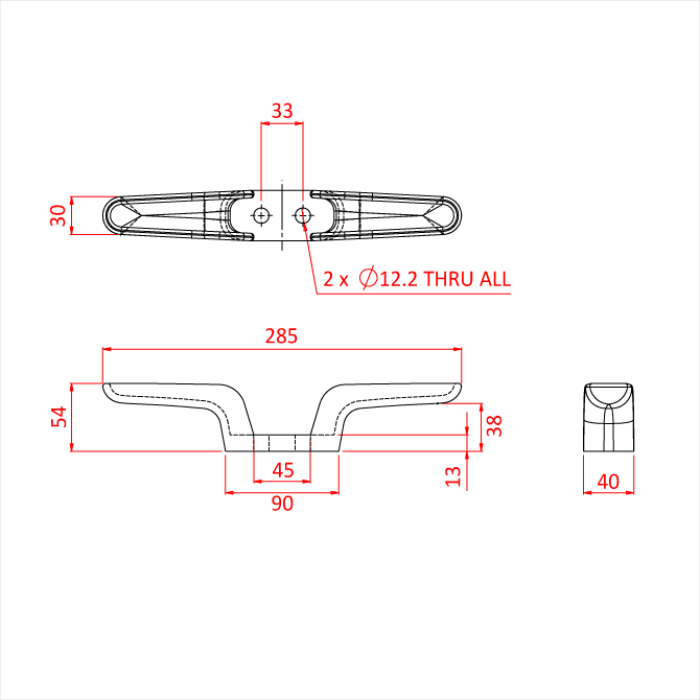

  • Doughty Flyrail Cleats - Stainless steel marine cleat technical drawing dimensions. - imagen 10

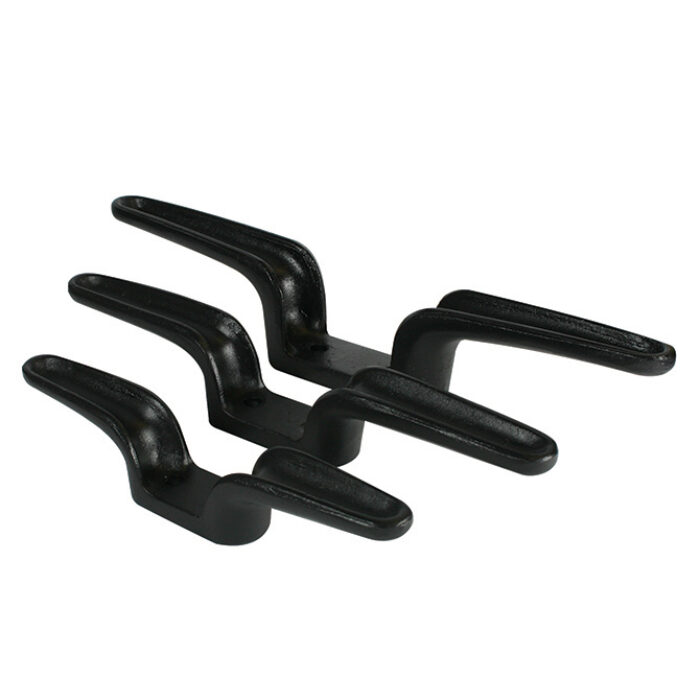

  • Doughty Flyrail Cleats - Black cast iron coat hooks, set of four. - imagen 11
  • Doughty Flyrail Cleats - Black cast iron farm tractor foot pegs. - imagen 12
  • Doughty Flyrail Cleats - Black cast iron coat hooks, multi-pack set. - imagen 13

Doughty Flyrail Cleats

Doughty Engineering |
SKU: T41904
£23.20incl. VAT

Incl. VAT. Shipping calculated at checkout.

In stock
Shipping 3–7 days
Minimum order value of £45 Minimum order value of £45 is required to place an order for all Doughty products. 1 Year Warranty
Size: 300mm
Package: 15pcs [7% Off]
  • Heavy-Duty Construction. Ensure long-lasting performance under pressure - crafted from robust cast aluminium.
  • Versatile Sizing. Choose the right fit for your rigging needs - available in three different sizes.
  • Reliable Security. Secure hauling lines with confidence - designed to perform in demanding environments.
View full Description Technical data
american_expressapple_paydiners_clubdiscovergoogle_payklarnamaestromasterpaypalshopify_payunionpayvisa
klarna. Add an item to see installment options

You may also like

Doughty Flyrail Cleats

The Doughty Flyrail Cleats are expertly crafted heavy-duty cast aluminium cleats, designed specifically for making off hauling lines. These robust cleats ensure reliable performance and are available in three sizes to accommodate various operational needs.

Key Features:

  • Heavy-duty construction for durability
  • Made from premium cast aluminium
  • Designed for making off hauling lines
  • Available in three sizes

Looking for more Doughty products? Discover the full Doughty Engineering Collection, or shop by category: Doughty Clamps, Lighting Spigots and Doughty Rail Systems.
