Doughty Eye to Eye Strainers
£19.33
Doughty Eye to Eye Strainers
£23.20incl. VAT
Incl. VAT. Shipping calculated at checkout.
In stock
Shipping 3–7 days
Minimum order value of £45
Minimum order value of £45 is required to place an order for all Doughty products.
1 Year Warranty
Options:
M8-WLL 230Kg-Tested
- Optimal Tension. Ensure maximum performance for wire rope assemblies - designed specifically for effective tensioning.
- High-Quality Steel. Built to withstand rigorous use in demanding environments - guarantees durability and reliability.
- Versatile Size Options. Accommodate diverse tensioning requirements - available in both M8 and M10 sizes for flexible solutions.
- Essential for Professionals. Ideal for TV, film, theatre, and live events - critical component for ensuring secure rigging setups.
- Long-Lasting Performance. Engineered for durability - perfect for repeated use in various applications without compromise.
klarna.
Add an item to see installment options
Doughty Turnbuckles
What is a turnbuckle?
They are designed to provide a simple way to adjust the tension or length of ropes, cables, tie rods, and other tensioning systems without adding undue stress onto the coupling eyes of the cable attachment. They come in a variety of types, sizes, and coatings to suit many suspending and tensioning applications.
What is a turnbuckle used for?
Turnbuckles can be used in numerous industries where require a great deal of tension. Some examples are as follow:
- Entertainment industry
- Turnbuckles are used in nearly all entertainment rigging in theatres, live concert performances, film and TV, etc.
- They are commonly used to make small adjustments in line lengths, making a flown unit sit parallel to the stage.
- Also, to make very minor height or angle adjustments.
- Sport:
- Construction
- For tensioning a ship's rigging and lashing
- To support a fence in a garden with small turnbuckles
- To support high-rise buildings or in structures such as bridges with extremely large turnbuckles
Different turnbuckle types are available at MTN SHOP EU - M8 and M10, Hook-Eye and Eye-Eye. Note: They are not rated with an SWL. For any inquiries, please contact us via chat.
Spec Sheet: T37500, T37600, T39500, T39600
Features & Specifications:
- Material: Steel
- Finish: Zinc Plated
- Weight: See the individual spec sheet
- SWL: See the individual spec sheet
- Length: See the individual spec sheet

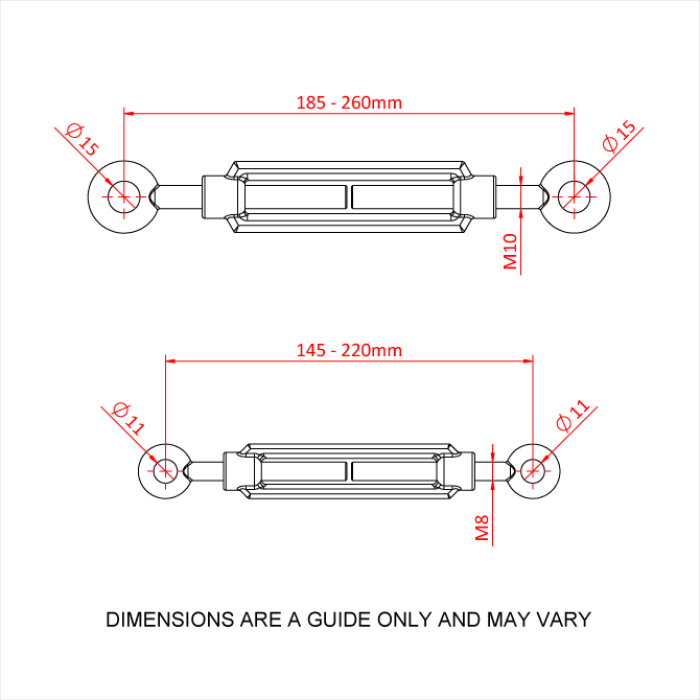

Different Turnbuckle Types: Sizes
Larger bolt size/thread diameter has a greater safe working load(SWL) than the smaller bolt size/thread diameters. When you compare M8 and M10 turnbuckles, you will see the difference between their SWL, i.e. M8 has a smaller SWL than M10. So, if you need a heavy-duty turnbuckle, the larger the bolt size, the better.
Different Turnbuckle Types: Fittings

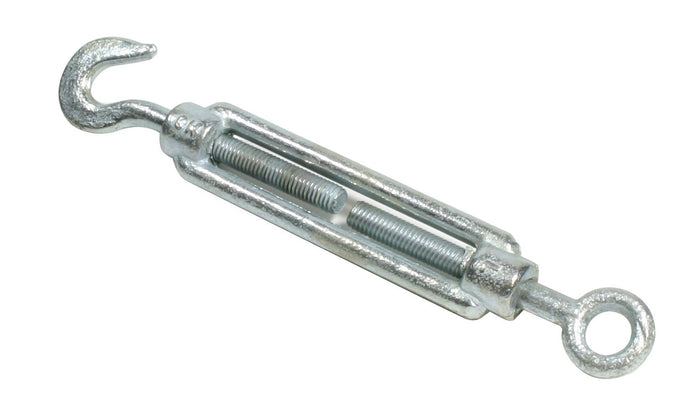

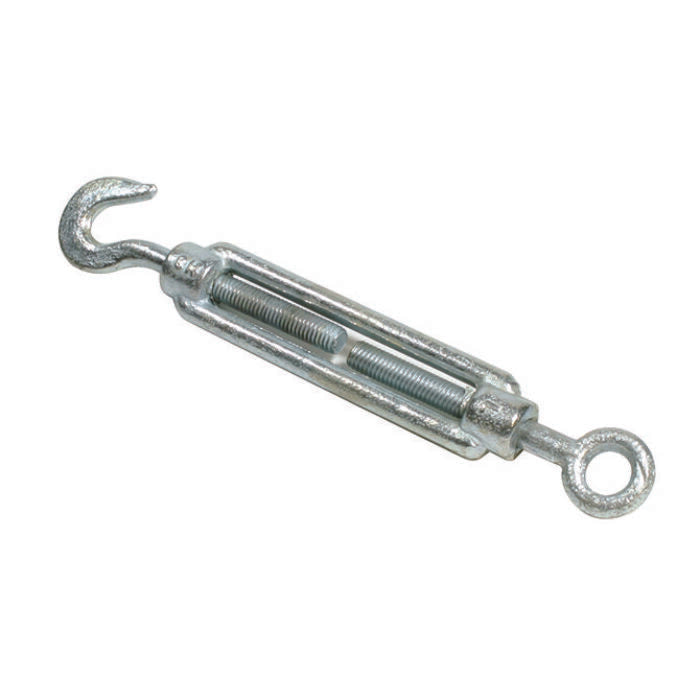

Hook and Eye Turnbuckle
As the name suggests, it features a hook on one end and an enclosed connector on the other. It is ideal to be used in the connections where there is a need for a quick attachment and where the anchor point does not easily slip out the opening of the hook.

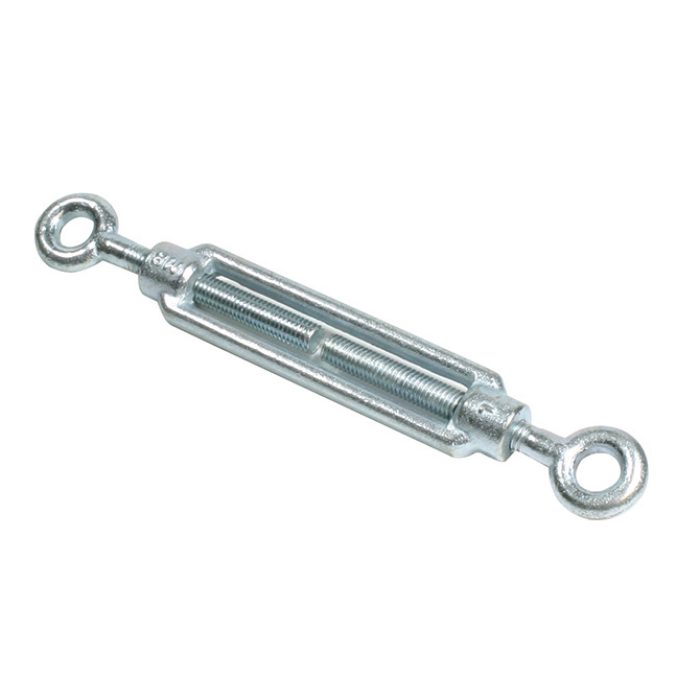

Eye to Eye Turnbuckle
Featuring a ring/eye on both sides, it is used with components that can be opened and connect into the ring/eye fittings. Those components can be a shackle or quick link. It is preferable at areas where there is a possibility of the anchor point to slip out of an open hook.
How to use a turnbuckle?
An example of connecting an eye-to-eye turnbuckle to a shackle
- Insert the eye into the open shackle
- Close the shackle so the eye is secured in place
- Do the same or similar approach on the other end
- When the two eye fittings are locked, the turnbuckle can be tightened. You can use your hand or wrench to do that.
- Place the claw of your wrench or apply the manual force(if using hands) in the middle part of the turnbuckle and then turn the body until the desired tension is reached.
