Yale TZL Load Indicator with Digital Display
Product No. TZL 2.5
Please note if you order less than £50 worth of Yale products, your order will be refunded.
Shipping calculator
Payment methods
Product details
YALE Load Indicator w/Digital Display & Radio Control
The Yale load indicator TZL is compact measuring devices for the weighing of loads. The TZL model is the standard digital display unit and the TZR model comes complete with a radio remote control.
On account of their flexibility, these load indicators are suitable for a multitude of applications. Whether used as a conventional crane weigher or to measure forces, it is the economical choice for various applications. They are very simple and straight forward to use!
The load indicators have a liquid crystal display (LCD), which can tare as
well as show either the gross or the net load. It also indicates overload at 110% of the rated capacity and the status of the battery.

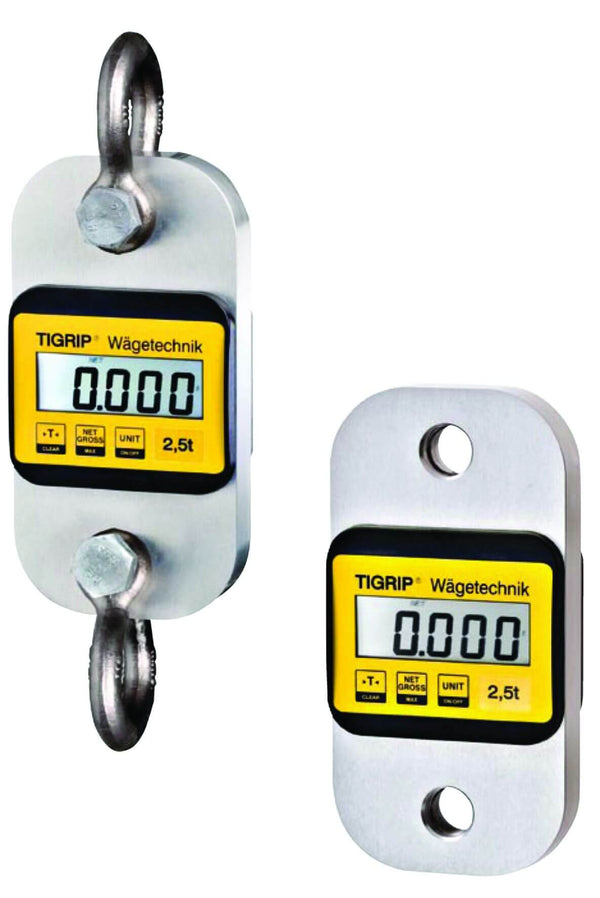

*Shackles shown in the photograph are not supplied as standard*
Technical Data:
- Operation time, approximately 200 hours with 4 x 1.5V AA batteries.
- Temperature range when in operation -10 C to +50 C.
- Temperature range when in storage -20 C to +70 C.
- IP 54 protection.
- 20.5 mm high LCD display (4.5 digits).
- Tare range is 100% of rated capacity.
- Overload warning at 110% of the rated capacity.
User Manual - Dimensions & Technical Spec
Model: TZL (WITHOUT remote control)
FEATURES & BENEFITS
- High accuracy.
- Lightweight design.
- Easy-to-read display.
- Easy to use.
- Robust design.
- Retains the peak value to memory.
- The battery capacity provides for around
- 200 operating hours.
- Automatic setting to zero when load indicator is switched on.
- Use of rechargeable batteries possible
(external battery charger*). - Display of maximum weight (gross/net).
- Display of measuring units at the load indicator.
- Measuring units: kg, tonnes, lbs, and kN.
- Automatic stand-by for a prolonged battery lifetime.
- Simple change of batteries.
- Warning, if batteries are low.
- Overload warning.
INCLUDED IN DELIVERY OF TZL:
- Crane weigher.
- 4 x 1.5 V AA batteries.
- Test certificate.
