Doughty Double Sheave Pulley
£70.37
Doughty Double Sheave Pulley
£84.44incl. VAT
Incl. VAT. Shipping calculated at checkout.
In stock
Shipping 3–7 days
Minimum order value of £45
Minimum order value of £45 is required to place an order for all Doughty products.
1 Year Warranty
100mm:
100mm
Rope:
Wire Rope
- Modular Design. Easily assemble single or multiple sheave units - built from a limited range of standard components for versatility in setup.
- High Load Capacity. Supports a safe working load of 150 kg - perfect for demanding theatre, film, and TV productions.
- Versatile Sheave Options. Available in 100mm, 150mm, and 180mm diameters - accommodating both fibre and wire ropes for various applications.
- Customizable Setup. Ready to accept a variety of fixings and brackets - adapting to specialist needs ensuring maximum functionality.
- Industry-Ready. Designed specifically for the theatre, film, and live event sectors - ensuring reliability and performance in critical situations.
klarna.
Add an item to see installment options
Double Sheave Pulley - Doughty Engineering
The Doughty Pulley system is of modular construction, allowing easy assembly of single or multiple sheave units from a limited range of standard components. With the addition of various brackets and fixings, the basic pulleys will fulfil a variety of specialist needs. This is designed for use within the theatre, film and TV Industry.

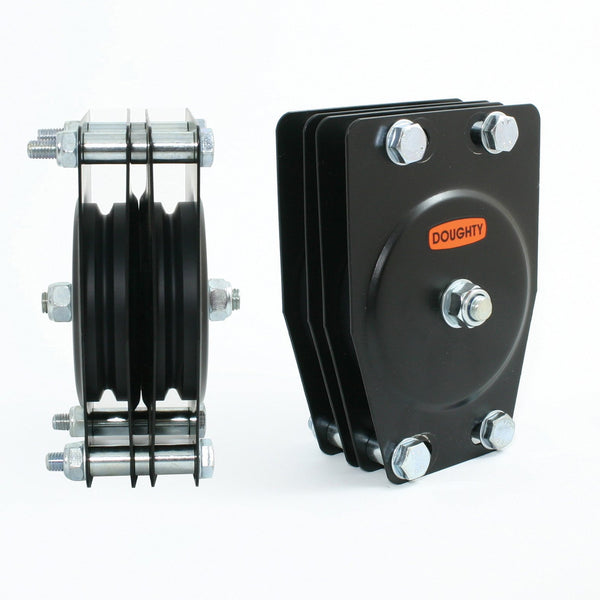

This double sheave pulley consists of two sheave units. Sheaves are available for fibre or wire ropes. All Standard Doughty Pulleys have a safe working load of 150 kg. A basic double sheave pulley is ready to accept any of the range of fixings. Three sizes of a sheave are available - 100mm, 150mm, and 180mm diameter.
To order pulleys, please state part numbers of:
1. Basic Pulley required
2. Fixing System required ie. T42800 + T42865 = 100mm Single Pulley (for wire) fitted with Awning Block.
For any inquiries, please contact us via chat.
Features:
-

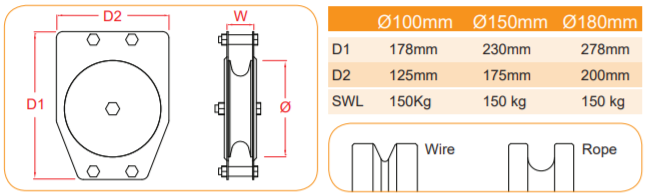

The recommended sizes for Hand Ropes & Wires are:
100mm Diameter Sheave - 14mm Rope – 4mm Wire
150mm Diameter Sheave - 18mm Rope – 6mm Wire
180mm Diameter Sheave - 18mm Rope – 6mm Wire - Width: 53mm. Same for all sizes
- SWL: 150kg. Same for all sizes
Brackets for Doughty Standard Pulleys:
- Multibeam Girder Brackets: For wall or ceiling applications
- Pulley Awnings: To be used with a shackle
- Girder Brackets: To be used with girders
- Wall Side Plates: To mount any size pulley to wall
- Multifix Brackets: To make wall mounted, ceiling mounted and upright guide pulleys, as well as cross tube assemblies.
