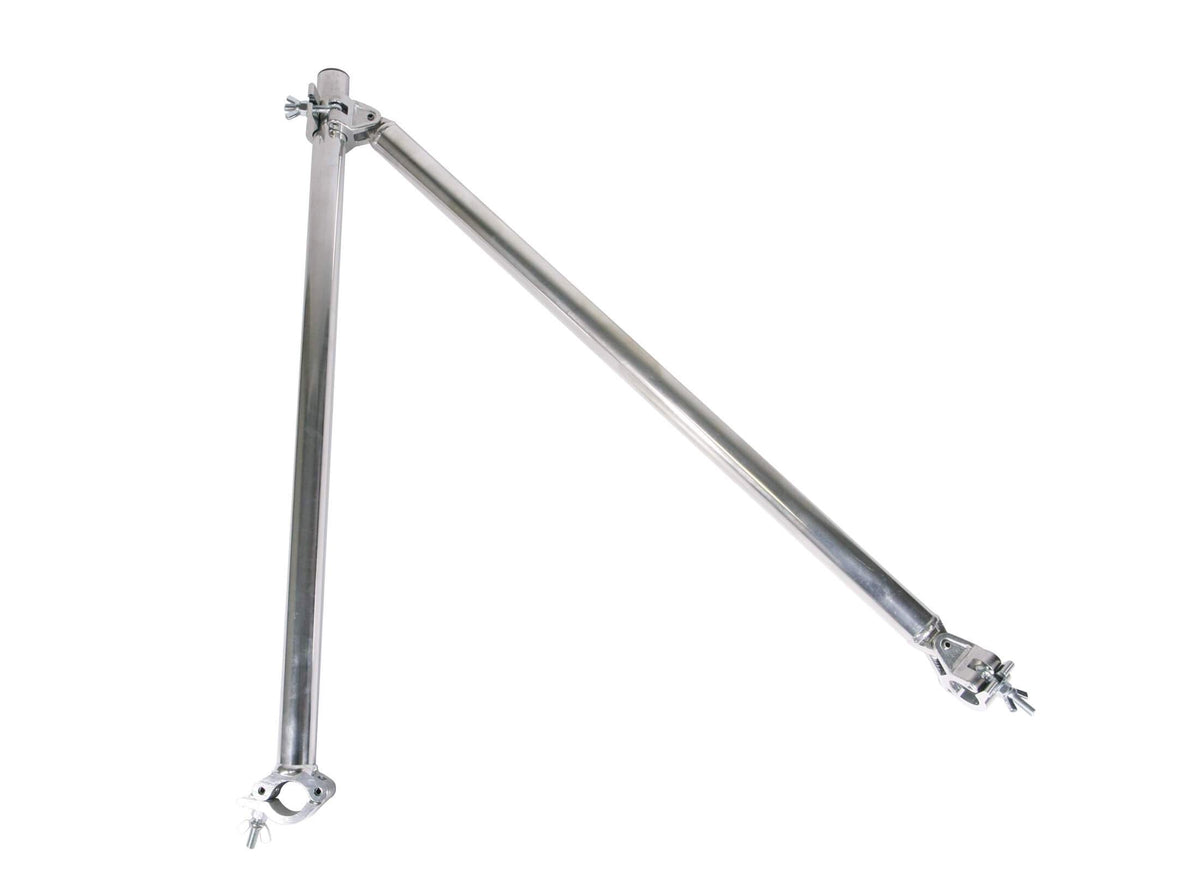

Doughty Boom Arms with Brace

It is a 48mm diameter boom arm with a brace and welded half coupler for tubes with a diameter of 48-51 mm.

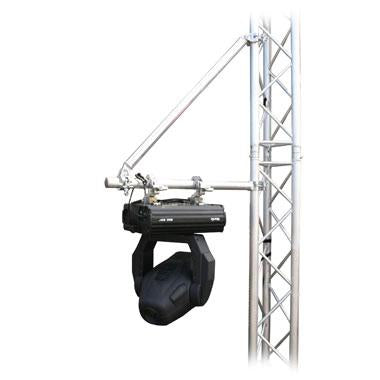

This truss boom arm is ideal for flying heavy luminaries such as moving heads from 48-51mm diameter vertical bars or trusses. By connecting a vertical bar/truss and the horizontal boom arm diagonally, the brace can eliminate movement or flexing in the boom arm.

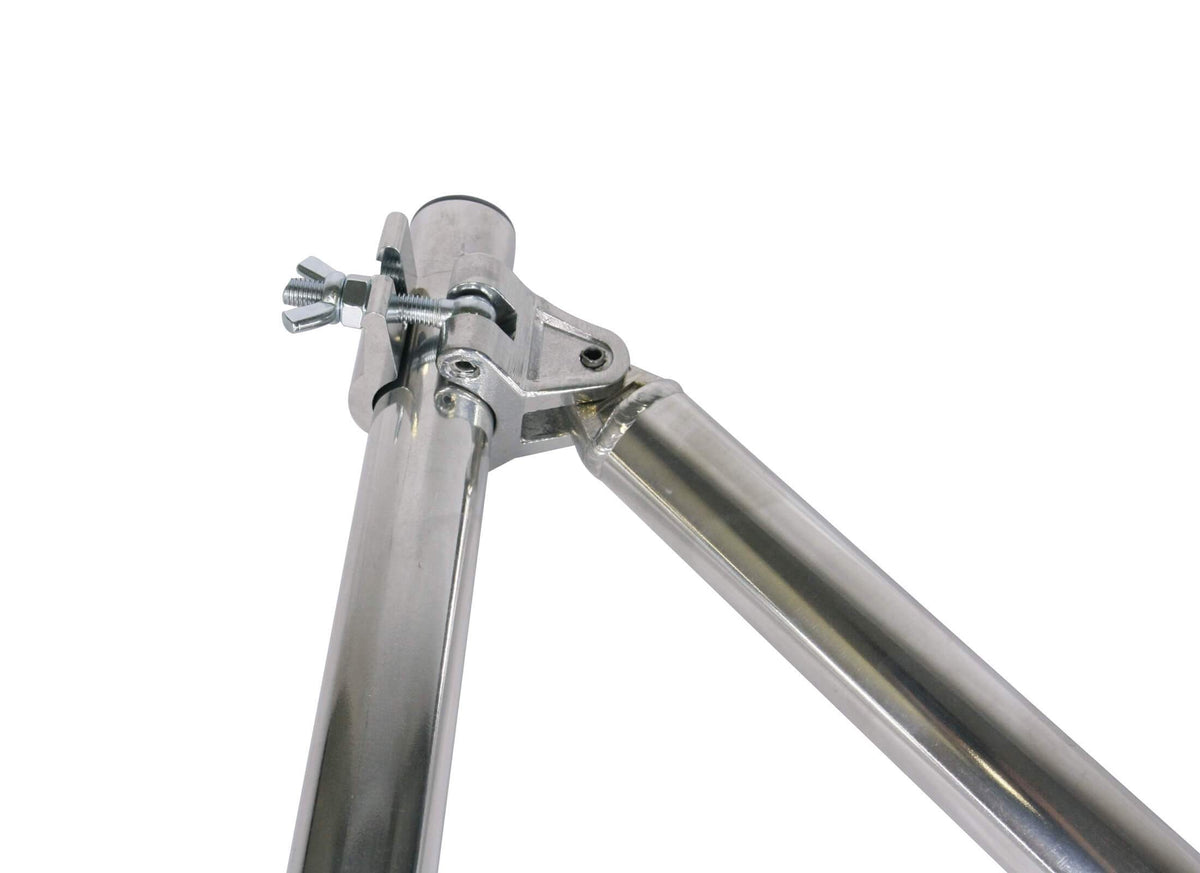

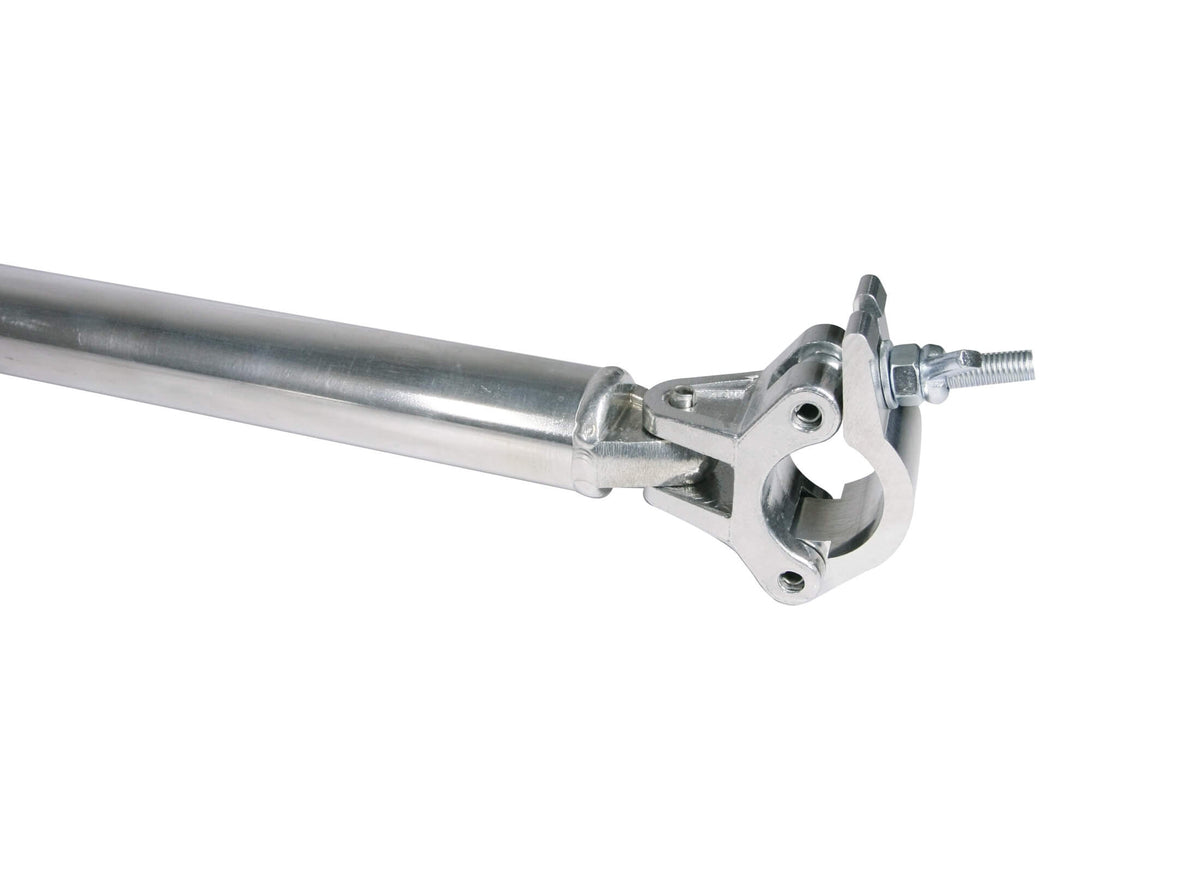

Manufactured with two articulated joints, most mounting situations can be accommodated.

Please also view our heavy-duty boom arm that offers a lighting solution without a brace. For any inquiries, please contact us via chat.

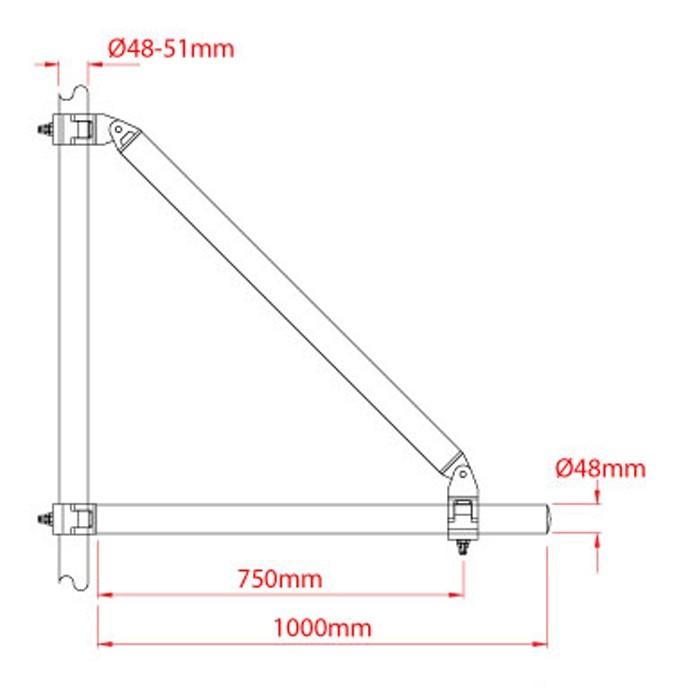

Features and Specifications:

  • SWL: 100kg
  • Weight: 5.0kg
  • Overall Length: 1000mm
  • Usable length of the boom arm: 750 mm
  • Diameter of Boom Arm: 48mm
  • Diameter bars/trusses: 48 - 51mm
  • High tensile aluminium
  • Available in both natural aluminium and black
