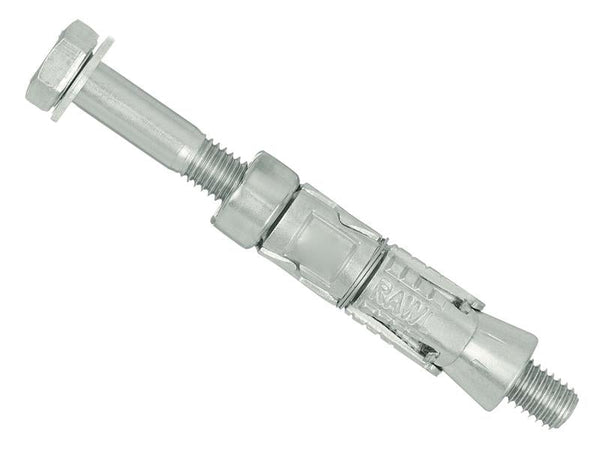

Rawlplug Rawlbolt® Loose Bolt M10/75L (Bag 5)
£7.85
Rawlplug Rawlbolt® Loose Bolt M10/75L (Bag 5)
£9.42incl. VAT
Incl. VAT. Shipping calculated at checkout.
klarna.
Add an item to see installment options
These Rawlplug Rawlbolt® Loose Bolts have the following specification:
Anchor
Diameter: 10mm
External Diameter: 16mm
Length: 140mm
Fixture
Max. Thickness: 75mm
Hole Diameter: 11mm
Hole Diameter in Substrate: 16mm
Installation Torque: 27
Wrench Size: 17
Min. Hole Depth in Substrate: 65mm
Min. Installation Depth: 60mm
Min. Substrate Thickness: 100mm
Min. Spacing: 50mm
Min. Edge Distance: 75mm
Pack Quantity: Bag of 5
The Rawlplug Rawlbolt® Loose Bolt is suitable for use in cracked and non-cracked concrete (ETA option 1), hollowcore slabs, flooring blocks and ceramics. Recommended for applications requiring fire resistance.
With a three-piece expanding sleeve of maximum expansion to provide optimal load and safety of use in any substrate.
The world's most popular all-purpose expanding shield anchor, loose bolt version.
