Ceep 4 Pin Circular Female Connector Inline

920614V000SD20

Locking Ring


✦ Free shipping over £200
✦ No customs charges
✦ Estimate shipping: £8.8 - £13
✦ BREXIT-proof shipping: 6-12 days as standard
✦ If your order isn't right ➜Get a return label

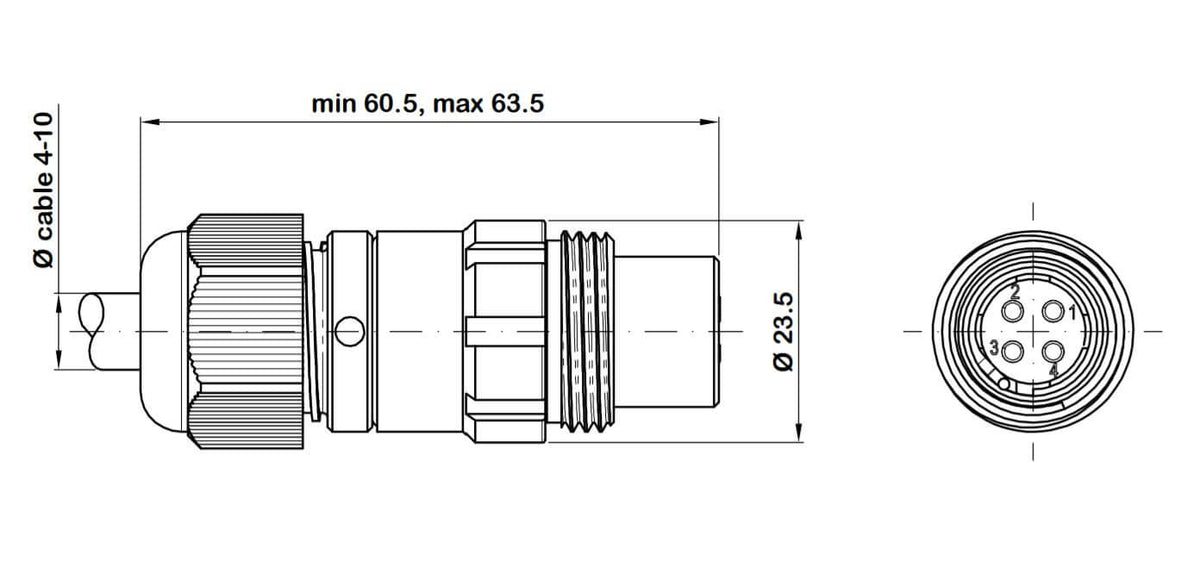

4 Pin Circular Female Connector Inline

These circular connectors with screw terminals are widely used in the event production, marine and industrial industries to enable a secure signal and current transmission by pairing it to a male receptacle

Features:

  • IP67 - Very high degree of protection against water (Protected against the effects of temporary immersion between 15cm and 1m. Duration of test 30 minutes)
  • Black non-conductive finish
  • Aluminium alloy shell

Specifications:

  • Working current: 10 A
  • Working voltage at sea level: 225V
  • Cable Gland: 4-10mm diameter
  • No. of Contacts: 4 x 10A Solder

Resources:

Spec Sheet
Mating Halves Waterproof Cap
920114V000SD20 [no locking ring] 920214V000P020
920614V000PD20
92T0210S2M
920614V000SD20 [with a locking ring] 920214V000P020
920114V000PD20
92T0610S20
