DOUGHTY STUDIO RAIL ALUMINIUM RAIL SYSTEM

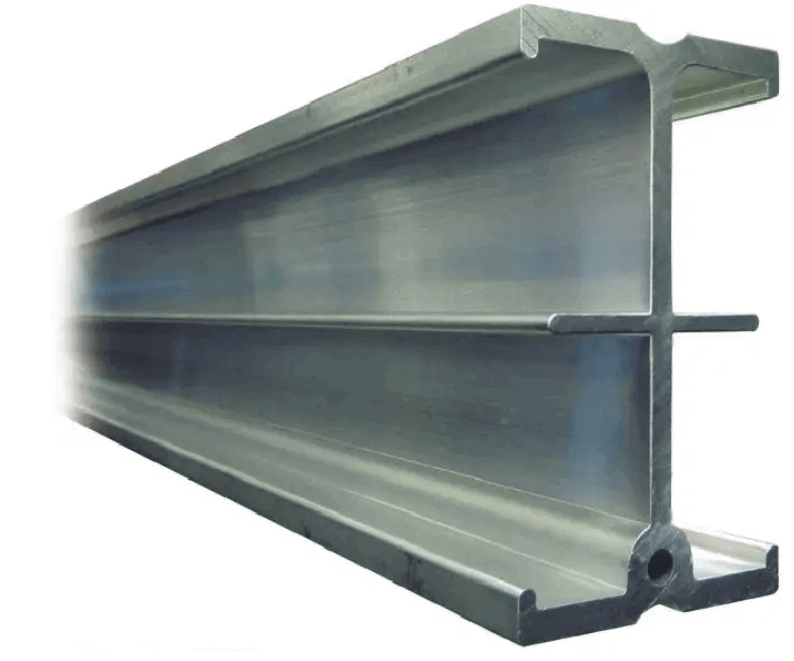

The Studio Rail 80 is an extruded aluminium rail available with all the components necessary for a comprehensive overhead studio rail system. Besides curtain, Doughty Studio Rail with higher load support can be used for hanging heavier equipment like pantographs or for use as a studio lighting rail that was used in the British Museum.

It features a unique joint pin system that aids assembly and joint alignment. The curved track is also available in different sizes.

Studio Rail 80 is more heavy-duty than studio rail 60. Size 80 can support a load between brackets up to 200 kg that doubles studio rail 60's capacity.

Doughty Studio Rail User Manual - Gallery

Features, Benefits & Specifications of Doughty Studio Rail 80

• Easy and fast installation.
• Low weight when dealing with aluminium systems
• Wide range of brackets for flexible applications
• Length & Weight: 2m(2.9kg), 3m(4.3kg), 4m(5.8kg) and 6m(8.6kg)
• Cross Section Dimensions: 82mm x 49mm
• Max Load between brackets: 200 KG (A double capacity of Studio Rail 60's)
• Material: Aluminum
• Finish: Natural Aluminium

A Wide Range of Rail Accessories

Discover the full list of Doughty Studio Rail accessories for the unique adaptability to your needs.

• Ceiling Bracket (25mm and 50mm)

• Corner Bracket with Wall Tie Option

• 90 Crossover Bracket
• Spacer Plate

• Extension Bracket (Angle)
• Extension Bracket (Length)

• Joiner Kit
• Joint Pins
• Plastic End Stops

• Studio Rail Clamps (100mm and 40mm)

• Cable Carriage

• Curtain Carriage
• Nylon Twin Hook

• 4 Wheel Carriage
• 6 Wheel Carriage
• 4 Wheel Double Swivel Car
• Studio Rail Articulated Carriage

• Studio Rail Drilling Jig
• Operating Poles

Doughty Studio Rail Set Up
