DOUGHTY STUDIO RAIL ALUMINIUM RAIL SYSTEM

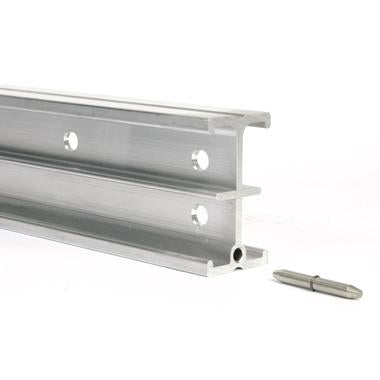

The Doughty Studio Rail 60 is an extruded aluminium rail available with all the components necessary for a comprehensive overhead studio rail system. Besides curtain, Doughty Studio Rail can support a maximum load of 100kg between brackets for hanging heavier equipment like pantographs or for use as a studio lighting rail.

It features a unique joint pin system that aids assembly and joint alignment. The curved track is also available in different sizes.

It can be cut to length on-site and there is a drilling jig available to easily re-drill the joint holes accurately. The studio rail lighting system was installed in the British Museum. If a more heavy-duty studio rail is needed, Doughty Studio Rail 80 that can support loads up to 200kg is ideal.

Doughty Studio Rail User Manual - Gallery

Features, Benefits & Specifications

• Easy and fast installation.
• Low weight when dealing with aluminium systems
• Wide range of brackets for flexible applications
• Length & Weight: 2m(2.9kg), 3m(4.3kg), 4m(5.8kg) and 6m(8.6kg)
• Max Load between brackets: 100 KG
• Material: Aluminum
• Finish: Natural Aluminium and Black

A Wide Range of Rail Accessories

Discover the full list of Doughty Studio Rail accessories for the unique adaptability to your needs.

• Ceiling Bracket (25mm and 50mm)

• Corner Bracket with Wall Tie Option

• 90 Crossover Bracket
• Spacer Plate

• Extension Bracket (Angle)
• Extension Bracket (Length)

• Joiner Kit
• Joint Pins
• Plastic End Stops

• Studio Rail Clamps (100mm and 40mm)

• Wall Bracket (200mm, 350mm and 500mm)

• Cable Carriage

• Curtain Carriage
• Nylon Twin Hook

• Cupped Curtain Brake

• 4 Wheel Carriage
• 6 Wheel Carriage
• Studio Rail Swivel Arm
• 4 Wheel Double Swivel Car
• Studio Rail Articulated Carriage

• Studio Rail to Tube Bracket

• Studio Rail Drilling Jig
• Operating Poles

Doughty Studio Rail Set Up
