Doughty Studio Rail - Suspension Bracket

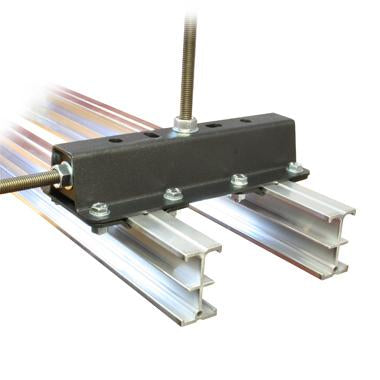

The Suspension Bracket enables two or three Doughty Studio Rail size 60 and size 80 to be suspended from one suspension point.

The rails are spaced at the Studio Rail standard 150mm centres.

The option to use a side fixing is standard with this bracket enabling grids or perimeter rails to be steadied with wall fixings.

Studio Rail 80 with the cross-section dimensions of 82mm x 49mm is more heavy-duty than Studio Rail 60 with the cross-section dimensions of 61mm x 35mm. For any inquiries, please contact us via chat.

For any inquiries, please contact us via chat.

Specifications - Studio Rail 80

  • SWL: 100Kg

Specifications - Studio Rail 60

  • SWL: 100Kg
  • Fixing Holes: 13mm Diameter
  • Width: 100mm
  • Length:
    T84117 (Double Rail Bracket): 250mm
    T84118 (Triple Rail Bracket): 400mm

Please refer to the images for more details.
