Doughty Six Wheel Carriage

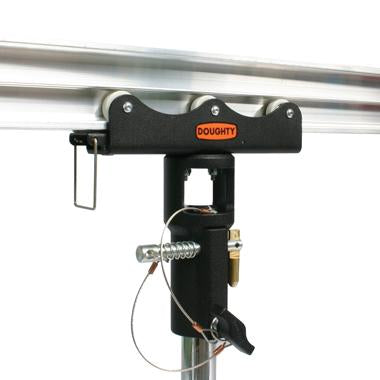

The Doughty studio rail carriages are designed to support a variety of fittings, typically luminaires and curtains/ drapes. This 6 wheel carriage is fitted with a friction brake and a three-point 28mm receiver to suspend equipment with a 28mm diameter Spigot of either Euro or Din Spec.

Manufactured from high tensile aluminium, the 3-point Receiver has been carefully designed to incorporate the following three safety points.

1. A 6mm diameter pin designed to take the initial load quickly and safely.
2. A standard sword pin allowing 360-degree rotation.
3. A Doughty knob which enables a luminaire to be locked at a chosen point of rotation.

Suitable for both the Doughty Studio Rail 60 & 80.

Difference between size 60 and size 80: Studio Rail 80 with the cross-section dimensions of 82mm x 49mm is more heavy-duty than Studio Rail 60 with the cross-section dimensions of 61mm x 35mm. For any inquiries, please contact us via chat.

User Manual & Cert - Installation Gallery

Specifications of studio rail 80's 6-wheel carriage

• SWL: 200 Kg
• Receiver: 28mm Diameter with 138mm long
• Weight: 1.2kg
• Length: 242mm
• Material: Aluminum

Specifications of studio rail 60's 6-wheel carriage

• SWL: 100 Kg
• Receiver: 28mm Diameter with 138mm long
• Weight: 1.1kg
• Length: 170mm
• Material: Aluminum
