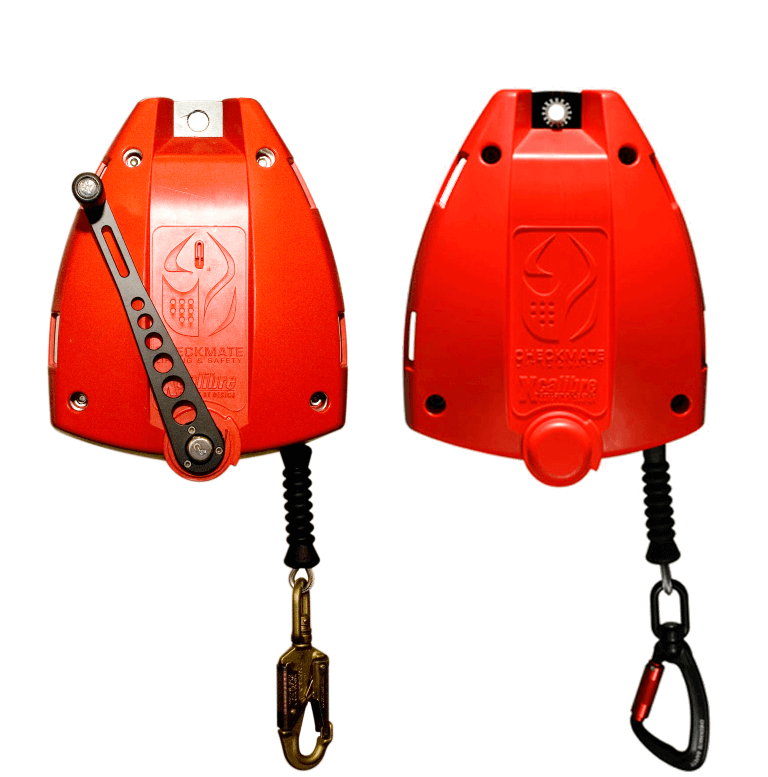

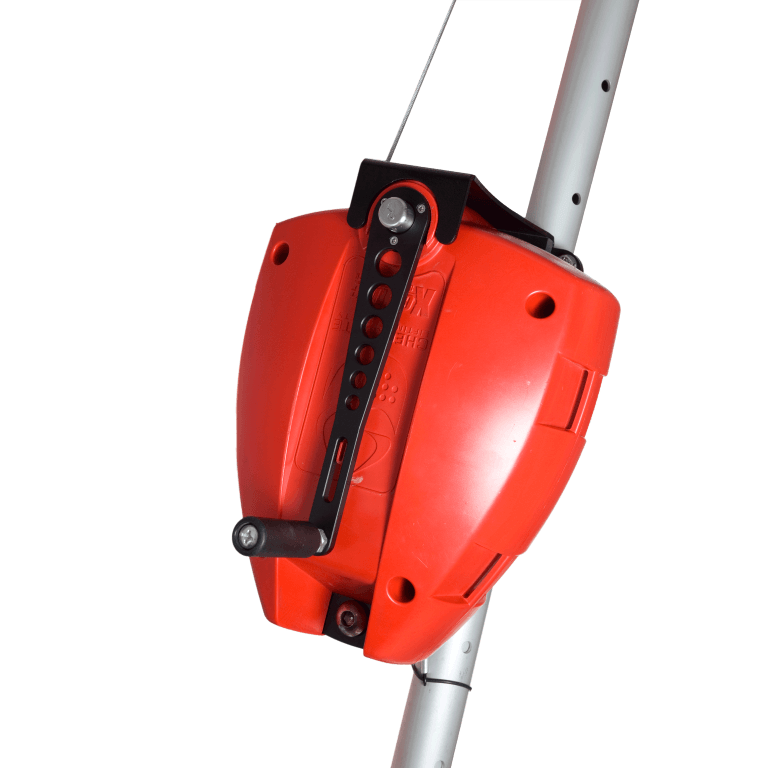

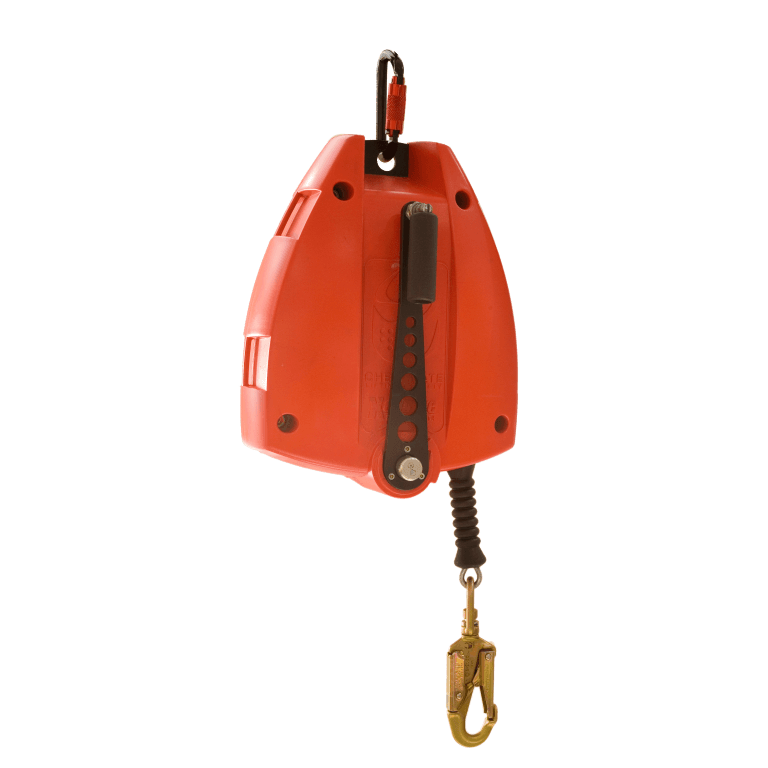

Guardian FABXLR Fall Arrest Recovery Block - 5mmWire/Rope (30m-40m L)

Product No. 10248

Regular price £1,294.38 excl. £258.88 VAT £1,553.26 incl. £258.88 VAT
STYLE
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paydiners_clubdiscovergoogle_paymaestromasterpaypalshopify_payunionpayvisa
Product details

The FABXLR functions as a standard Fall Arrest Block, but in the event of a fall the rewind/rescue mechanism can be engaged to raise and/or lower a fallen worker.  Available with galvanized or stainless steel cable or fibre rope made with Dyneema®, up to 40m (130ft) in length.

FEATURES

  • Galvanised Wire Rope (FABXLR-30C/FABXLR-40C) - 4.8mm nom dia., 30m/40m length, 19 x 7 construction, minimum breaking load 15kN
  • Stainless Steel Wire Rope (FABXLR-30CS/FABXLR-35CS) - 5mm dia., 30m/35m length, 7 x 19 construction, minimum breaking load 15kN
  • Fibre Rope made with Dyneema® (FABXLR-30F/FABXLR-40F) - 5mm dia., 30m/40m length, minimum breaking load 27kN
  • Capacity - Up to 40m
  • Maximum Arresting force - <6.0kN
  • User Weight - 136kg maximum (300lbs)

SPECIFICATIONS

  • External Housings - PC/ABS High strength and rigidity UV stabilized
  • Shaft - T6 Aluminium hard anodized
  • Chassis - Hot Rolled Steel powder coated
  • Pawls - Stainless Steel
  • Swivel Load Indicating Hook: Steel swivel snap rated to 23kN
  • Standards - EN 360, ANSI Z359.14:2012 Class B, EN 1496 Class A/B
