Guardian FABX2 Fall Arrest Block - Rope/Webbing (18m Max)

Product No. 10236


🎄 Due to the busy Christmas period, please note that orders placed between Monday 16th December and Thursday 2nd January may take longer than usual to be delivered.

Regular price £416.97 excl. £83.39 VAT £500.36 incl. £83.39 VAT
STYLE
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paydiners_clubdiscovergoogle_paymaestromasterpaypalshopify_payunionpayvisa
Product details

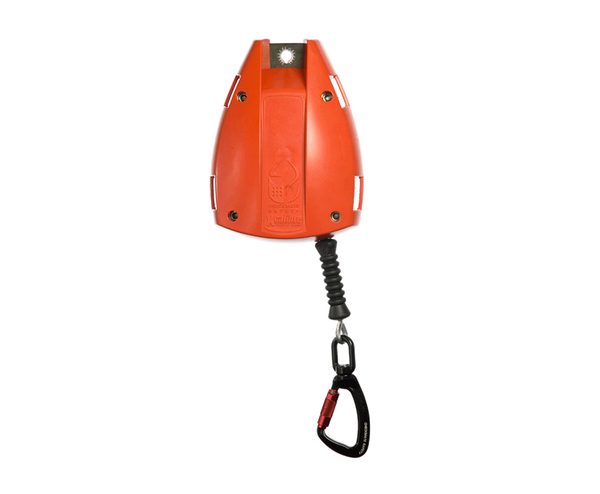

Guardian FABX2 Fall Arrest Block - Rope/Webbing (18m Max)

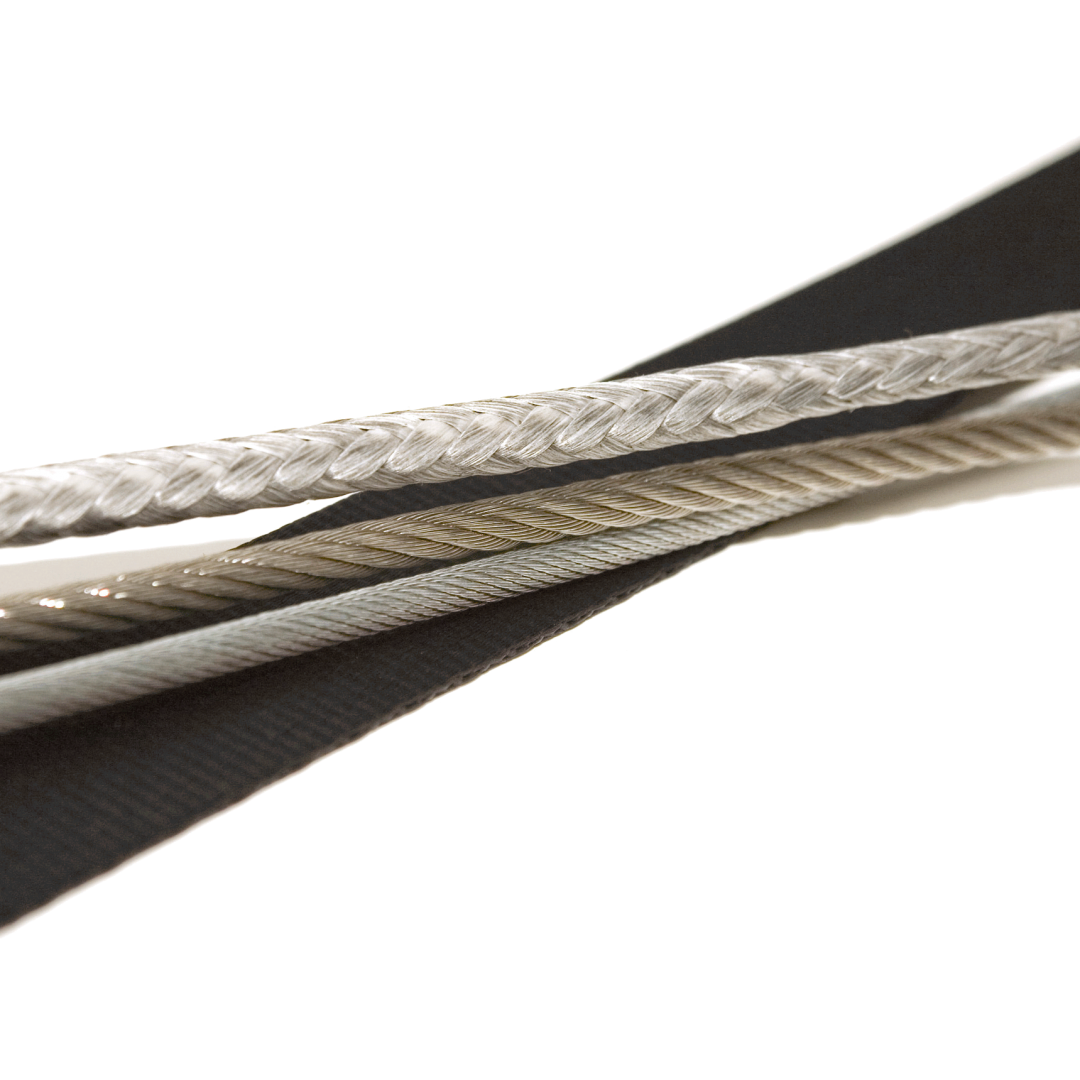

The FABX2 is available with galvanized or stainless steel cable, or rope/webbing made with Dyneema®. Up to 20 meters in length the FABX2 offers lightweight handling, excellent serviceability, and exceptional performance.



FEATURES

  • Anchorage Connection - 11mm alloy twist lock karabiner approved to EN362 & rated to 24kN (EN ONLY) or Steel triple lock approved to ANSI Z359.12 & rated to 52kN
  • Galvanised Steel Wire Rope (FABX2-15C/FABX2-18C) - 4.70mm (nom) dia., 15m/18m length, 19 x 7 construction, minimum breaking load 15kN
  • Stainless Steel Wire Rope (FABX2-15CS) - 5mm dia., 15m length, 6.5kg weights, 7 x 19 construction, minimum breaking load 15kN
  • Webbing made with Dyneema® (FABX2-12W) - 20mm x 1.4mm, 12m length, 5.3kg weights, minimum breaking load 22kN
  • Fibre Rope made with Dyneema®(FABX2-18F) - 5mm dia., 18m length, 5.3kg weights, minimum breaking load 27kN
  • Capacity - 12-20m (39-66ft)
  • Maximum Arresting force - Wire rope =4.5kN(nom) Webbing = 4kN(nom), Rope= 3.5kN(nom)
  • Total Arrest distance - Max 2.0m (EN) / 54” (ANSI)
  • User Weight - 136kg maximum (300lbs)

SPECIFICATIONS

  • External Housings - PC/ABS High strength and rigidity UV stabilized
  • Drum - Polyamide 6 Glass Filled
  • Chassis - Hot Rolled Steel, Zinc plated black
  • Pawl Plate & Ratchet - Al. Alloy T6 Hard anodized
  • Pawls & Spindles - Stainless steel, hardened
  • Bearing Plates - Polyamide with PTFE Polytetrafluoroethylene
  • Shaft - Al. Alloy T6 Hard anodized
  • All Fixings - Stainless steel
  • Swivel Hook - AL. Alloy, Rated to ANSI
  • Standards - EN 360, AS/NZS 1891.3.1997 (EN), ANSI Z359.14:2012 Class B, OSHA 1910 &1926 (ANSI)
