Guardian AtomX Mini Fall Arrest Block

Product No. 10210

Regular price £93.06 excl. £18.61 VAT £111.67 incl. £18.61 VAT
HOOK MATERIAL/TYPE
SINGLE OR DUAL LEG
TOP CONNECTOR
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paydiners_clubdiscovergoogle_paymaestromasterpaypalshopify_payunionpayvisa
Product details

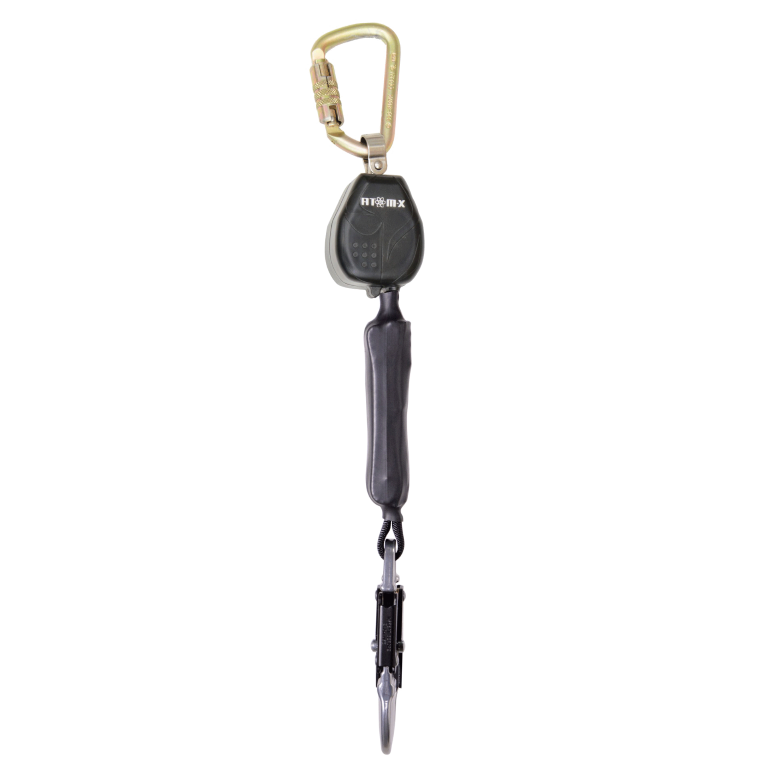

Guardian ATOM-X Mini Fall Arrest Block

ATOM-X is the smallest and lightest fall arrest block in its class in the world. Its lightweight chassis, PC ABS housing and webbing made with Dyneema® contribute to its outstanding strength and performance.

FEATURES

  • Top Connector  - 11mm Alloy twist lock karabiner approved to EN362 rated to 25kN (supplied as standard)
  • Bottom Connector - ANSI rated snap/scaffold hook
  • Webbing - Made with Dyneema®; 22mm - minimum breaking load 22kN
  • Capacity - 1.8 metres (6ft)
  • Maximum Arresting Force - Webbing = 6.0kN
  • Average Arresting Force - Webbing = 4.0kN
  • User Weight - 150Kg (330lbs) Maximum



SPECIFICATIONS

  • External Housings - PC ABS. High strength and rigidity. UV stabilised
  • Shaft - Steel zinc plated & passivated
  • Chassis - Hot Rolled Steel Zinc plated & Passivated
  • Pawl - Steel, hardened - Zinc plated & Passivated
  • Bearing Plates - PTFE
  • Aluminum Snap Hook - 23kN Minimum Breaking Load, 16kN Rated Gate
  • Standards: EN 360, AS NZS 1891.3.1997, ANSI Z359. 14-2012 Class A



PRODUCT VIDEO - ATOMX





DOWNLOADS

Instruction Manual Guardian AtomX




Safety Harness    Safety Helmet    Safety Lanyard    Carabiner
