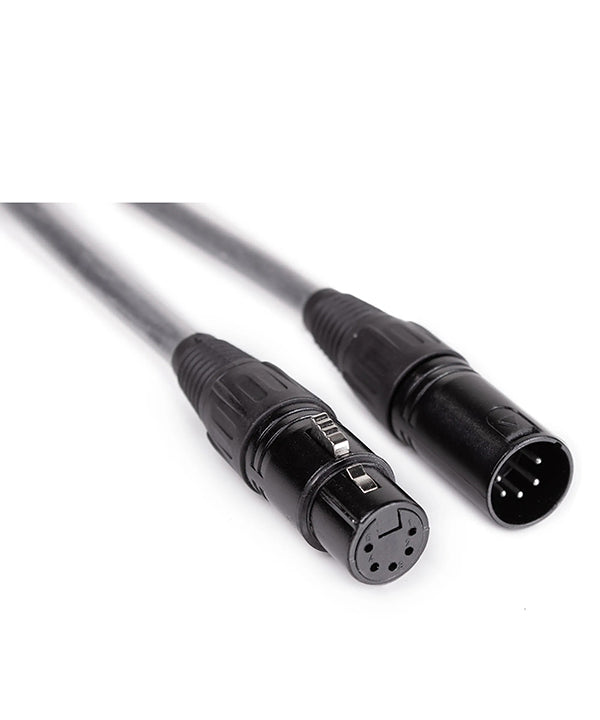

• DMX 5 pin cable heads black

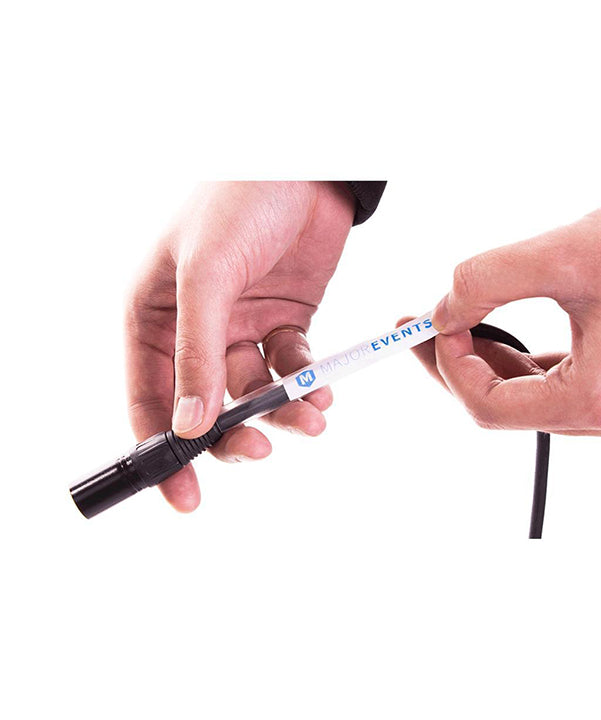

  • Model holding black cable with label
  • Man plugging cable into socket

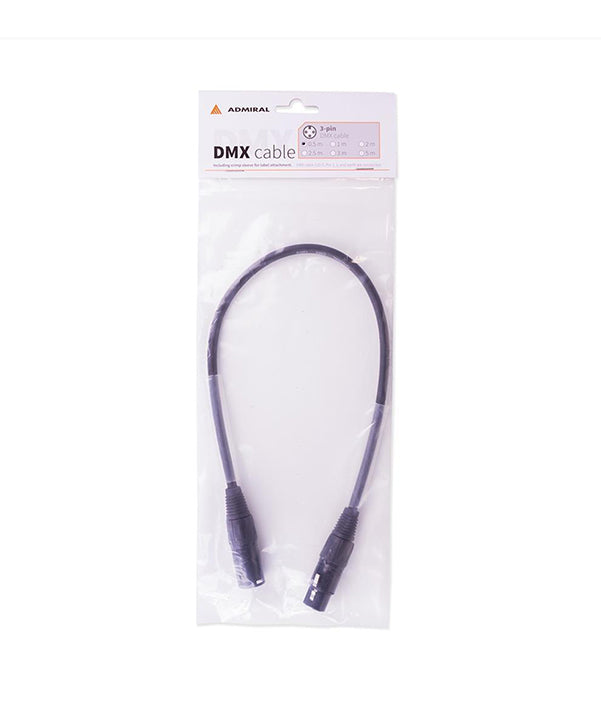

  • Black Cable in Pocket

DMX 5pin Cable + XLR 5pin Plug & Socket - 0.5m-20m

Product No. 487-5846

Regular price £6.17 excl. £1.23 VAT £7.40 incl. £1.23 VAT
LENGTH
QTY
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paydiners_clubdiscovergoogle_paymaestromasterpaypalshopify_payunionpayvisa
Product details

DMX 5pin Cable + XLR 5pin Plug & Socket - 0.5m-20m

The Admiral Staging cables are pre-assembled and engineered to provide the strongest  possible DMX signal. 3 or 5 pin cables are available. All Admiral cables are equipped with a shrink wrap sleeve around the cable so your own logo or identification can be applied to each cable.

Note: If you want to build your own cables, separate connectors are also available.



Specification:

  • Length: 0.5m-20m
  • Connection: 5-pin
  • Gauge :2 x 0,22mm2 copper braid of 7 x 0,20mm single copper wires
  • Isolation : Percicel Wire colors : White + Red
  • Shield : Copper braid of tinned single wires 64 x 0,12mm
  • 1st Screen : Cover with double aluminum Foil
  • 2nd Screen : Copper braid made of tinned single filaments nom. cover 75%
  • Nominal OD : Ø 6,5 mm
  • Color : Black
