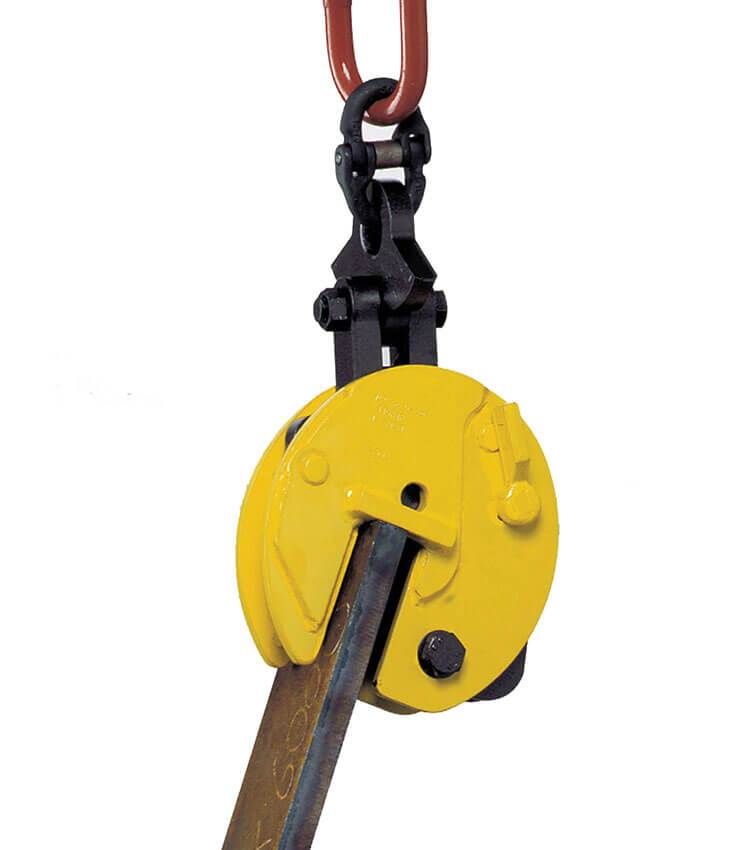

Camlok Vertical Plate Clamps CX 220-10,000Kg (Side Loading)

Camlok Vertical Plate Clamps 220-10,000Kg

Lifting Clamps are one of the most important pieces of equipment in many lifting and material handling operations. No matter if it is in the manufacturing or construction process, lifting clamps serve a critical function such as lifting and moving a flat plate, rolled stock and beams.

The CX vertical plate clamps share all the benefits of the CY clamps but are specifically designed for more heavy-duty applications. The other benefit that the CX clamps offer over the CY clamps is that vertically racked plates can be turned through 90 degrees (as shown in illustration).

NB: The plate surface of the material being clamped must have a hardness level below HRC 30/Brinell 300.

Fast & International Delivery now. For any inquiries, please contact us via Chat.

Plate Clamp Safety

Specifications:

• Capacity: 220kg - 10,000kg
• Jaw Capacity: 100mm max.
• Weight: 7 - 76kg
• Hardness level of the plate surface: below HRC 30/Brinell 300

Applications of Vertical Plate Clamps:

• Wind Power Energy
• Offshore
• Ship & Yacht Construction
• Tank & Vessel Construction
• Construction

Others:
