Camlok TCU Container Lifting Lugs
These container lifting lugs are supplied, and used, in sets of 4. They have a total lifting capacity of up to 56 tonnes. The CLB and CLT lugs serve as flexible lashing points for the transportation of containers.

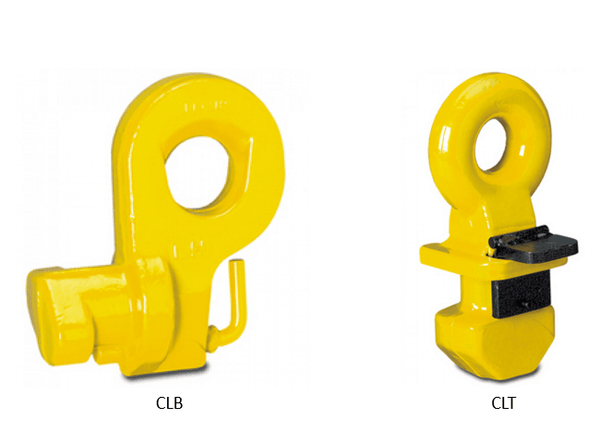

Two types are available depending on where you want to fasten them; to the side or the top of the container.

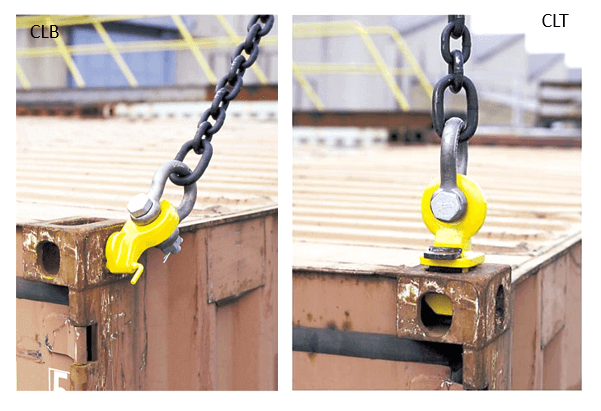

The CLB model is mounted horizontally to the side of the container at either the top or the bottom fixing holes. This model has a spring-loaded bolt to prevent accidental release.
The CLT type is vertically mounted in the hole at the top of the container and is locked into place by simply turning the lug 900. This configuration allows for transportation via the use of a lifting frame in conjunction with cables, chains or slings.
NB. NOT TO BE USED ON A 4 LEG CHAIN SLING.
Fast and International Shipment. For any inquiries, please contact us via Chat.
SPECIFICATIONS
- Type of lifting: CLB(Side & Bottom) & CLT(Top)
- Capacity: 32000kg - 50000kg(CLB) & 56000kg(CLT)
- Weight: 18kg(CLB) & 28 kg(CLT)
- Sling angle from verticle: See the thumbnail

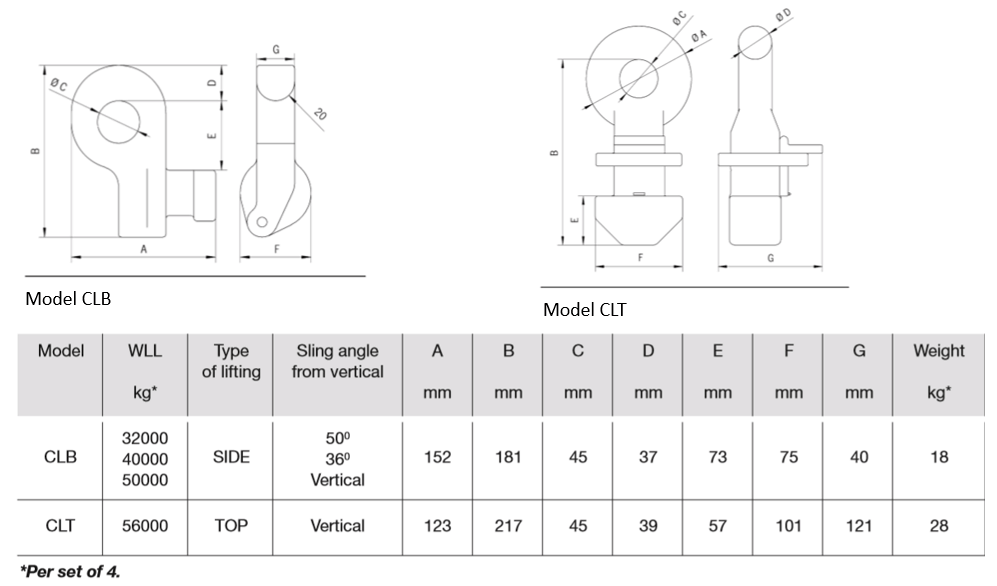

Please refer to the diagram for the Camlok product specifications.
