- Versatile Attachment. Securely mount various round tubes and truss chords - accommodates 60mm to 63mm diameters.
- Slimline Design. Fit into tight spaces with a compact 30mm width - perfect for use between truss webs and other challenging setups.
- Robust Construction. Built from high tensile aluminium extrusion for durability - engineered to handle a safe working load of 300 Kg.
- Dynamic Use Cases. Ideal for theatre, film, TV, and photographic applications - ensures reliable suspension of luminaries and equipment.
- TÜV Certified Quality. Certified for safety and performance - trust in proven reliability for professional rigging and staging.

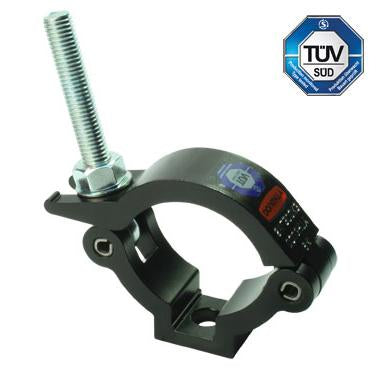

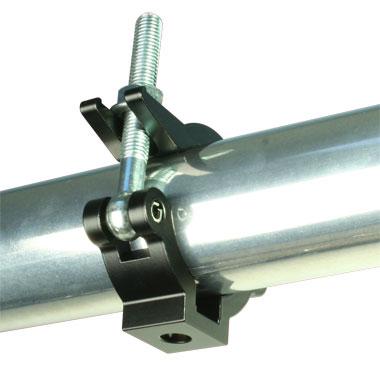

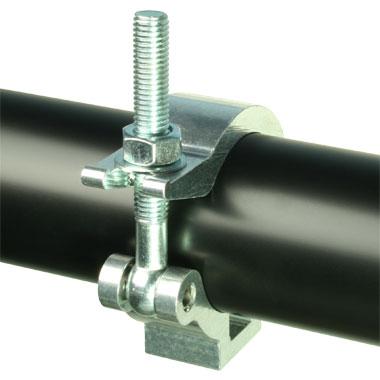

Doughty Clamp - Half Coupler (Slimline & Large)
The Doughty Clamp has a slotted base to captivate an M12 Nut or Bolt to enable users to create fixings suited to their requirements. The slimline profile with only 30mm width allows it to be used between truss webs etc. This half coupler clamp can also attach the round tubes with a larger diameter.
Manufactured from high tensile Aluminium Extrusion, it is ideally used in the theatre, film, TV and photographic industries for attaching round tubes or truss chords and suspending luminaries or other equipment. For any inquiries, please contact us via chat.
Spec Sheet - Doughty Clamp User Manual - Cert
Specifications:
- TÜV Tested & Certified
- SWL: 300 Kg
- Tube Diameters: 60mm to 63mm
- Width: 30mm
- Fixings: M12 Hole
- Weight: 0.30 Kg
- Material: Aluminium
- Finish: Black or Polished Aluminium
Other Sizes of Doughty Half Coupler:
-
32/35/38mm Atom Half Coupler
- 50mm Half Coupler Clamp (Standard, Lightweight, Super Lightweight, Slimline, Slimeline & Lightweight)
- 60mm Half Coupler Clamp (Standard, Slimline-Current Product)
