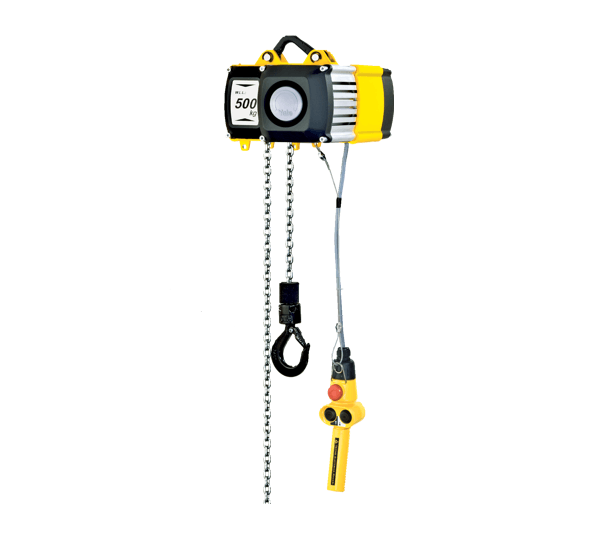

Yale Electric Chain Hoist 500Kg, Dual Speed (CPVF)

Electric Hoist 500kg (Trolley or Suspension Lug)

The dual-speed (4m/1m per min) electric hoist 500kg (model CPV/CPVF) combines modern design and technical innovation. A robust construction makes the series a versatile tool for professional applications.

The integrated limit switch for the highest and lowest hook position considerably extends the working life span of the slip clutch, motor, and gearbox. Check the video below.

Electric Chain Hoist Specification for CPV/F Model

FEATURES

• The easily removable housing cover
  Give direct access to all electrical connections
• Electromagnetic spring pressure brake
  Holds the load safely even in the event of power failure.
• Motor
  Protected to IP 55 (acc. to VDE 0530), against ingress of dust and water jets.

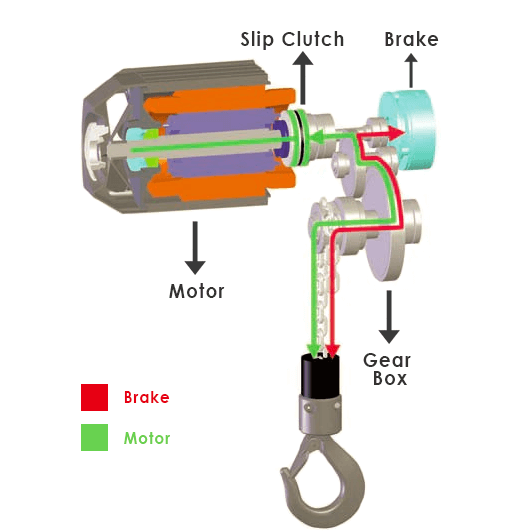

• The easily adjustable slip clutch
  - Designed to guarantee a permanent connection between the load and the brake.
  - Brake holds the load securely without load dropping(red line), even when the slipping clutch is activated.
• The standard, oil bath lubricated and case hardened gearbox
  Has a helical gearing for particularly smooth running and enhanced lifetime.
• Suspension lug
  - For compact dimensions
  - Easy integration in closed-eye constructions.
• Steel chain guide
• The main contactor
  As standard, for increased safety
• Standard Operating Voltage
  Euro-voltage 400 V, 3-phase, 50 Hz
• Increased operating safety
  Through 42 V control voltage (low voltage control), push-button pendant control, IP 65.
• 2-year warranty (excluding wear parts) and a lifetime lubricated gearbox.

OPTIONS

• Stainless steel load chain (no reduction of working load limit)
• Suspension top hook
• Flexible chain container
• Other operating voltages
• Counter for operating hours and number of starts
• Radio remote control
• Control for synchronized operation of several hoists
• Manual and electric trolleys
• Connection to festooned cable systems

DETAILS

• Yale electric hoists and trolleys are not designed for passenger elevation applications and must not be used for this purpose.
• Also available as 230V, 1-phase, 50 Hz (25% ED) version. Optionally available with an electric trolley.
