Electric Hoist 1 Ton (Trolley or Suspension Lug)
Made in Germany | 2 Year Warranty | Lifetime Lubricated Gearbox | 3-Phase Hoist for Heavy-Duty Work
The electric hoist 1 Ton (Model CPV/F) combines modern design and technical innovation. The robust construction makes the series a versatile tool for professional applications, and offers the proven performance at much more compact dimensions
The service-friendly modular design enables easy access to all critical parts for time-saving maintenance and periodic inspections.
See CPV Electric Hoist in Action
With a Single chain fall & lifting speed at 8m/min (main lift), this electric hoist 1 ton comes in 2 types of speeds.
- Single speed (CPV 10-8): 8m/min
- Variable speed (CPVF 10-8): 8m/min & 2m/min
User Manual - Brochure - CPV Electric Hoist Blog
FEATURES & BENEFITS

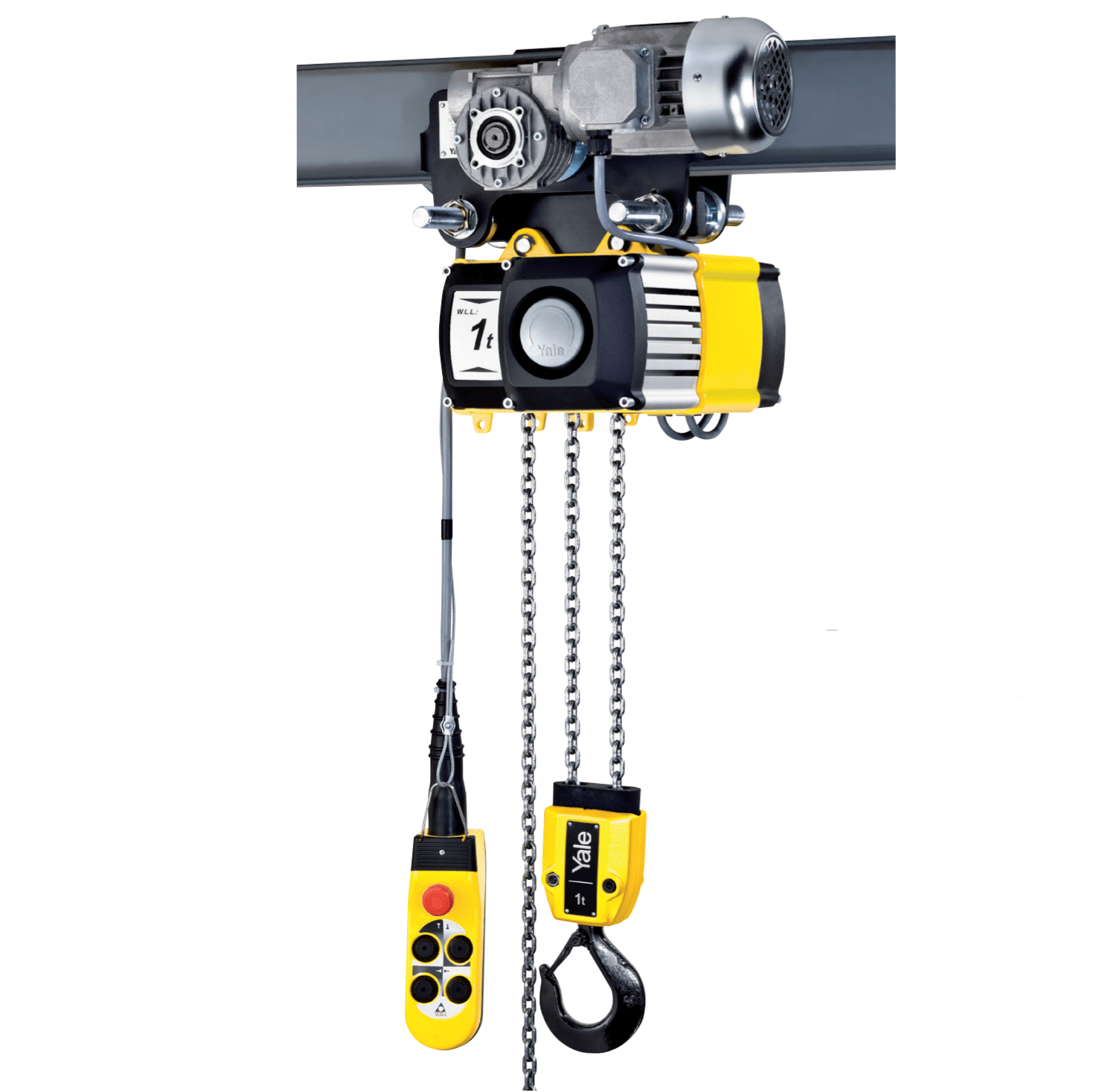

Different suspension types available: Top hook (as standard), Suspension lug (as an option) and integrated trolley
Increased operating safety:
- Through 42 V control voltage (low voltage control) and the main contactor

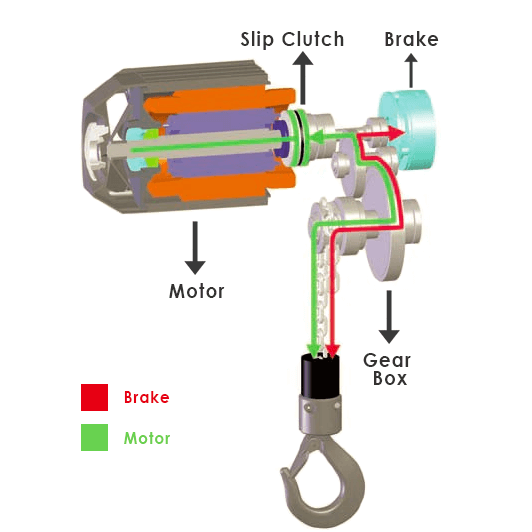

- Overload protection by means of a slip clutch
- Load to be safely held even in the event of power failure
Smooth service & enhanced lifetime:
- Oil bath gearbox with helical gearing
- A smooth run of the chain ensured by the chain guide
Easy maintenance & inspection:
- Maintenance-free brake
- Designed with a service-friendly modular structure with all critical parts easily accessible
Extra options & features for special working conditions
e.g. stainless steel components, parts designed for holding stationary loads above persons, radio or cable controls, flexible chain containers, thermal sensors
Single and
dual speedⓘDual speed hoists are ideal when more precise movements are required.
hoisting available
2-year warranty & a lifetime lubricated gearbox
Yale Product Family - Britain’s No. 1 Name for Lifting!
MOTOR
• A ribbed aluminium motor housing in which the stator is pressed
• IP55 protected motor with a high duty cycle
• Air movement offered by the fan
BRAKE
• Maintenance-free & features a pre-set gap
• Easily accessible to inspect the gap during periodic maintenance
• Holds a load safely even in the event of power failure
LOW VOLTAGE CONTROL
• Equipped with the low voltage control 42 V as standard
CHAIN GUIDE
• The 5-pocket load sprocket, all-steel chain guide, micro switches and service-friendly cable routing.
LIMIT SWITCH
• End limit switches are bronze studs in the lower chain guide, which activate the well-protected micro-switches.
SPECIFICATIONS
Hoisting Control: Low voltage control 42 V as standard
Power Source: 400V, 3-PHASE, 50HZ, ideal to lift heavy loads commonly required in most industrial facilities
Lifting Speed: 8 metres per minute (Single-speed model) / 8 metres per minute & 2 metres per minute (Dual-speed model)
No. of Chain Fall: 1
Hoist Motor: 1.5kW (Single-speed model) / 1.5kW & 0.37kW (Dual-speed model)
Chain Dimensions: 7.1 x 20.5mm
