Trend Hinge Jig
Trend Hinge Jig £225.36
  • Trend Hinge Jig

Trend Hinge Jig

Trend |
SKU: TREHINGEJIG
£270.43incl. VAT

Incl. VAT. Shipping calculated at checkout.

Only 8 left in stock
Shipping: 3–5 working days
  • Uses the hinge itself as the pattern. No conventional marking out needed, quick and simple to set up on-site or in the workshop.
  • 4 apertures for fire door requirements. Suitable for timber based doors and square butt hinges.
  • Requires a light duty router, 1/4in collet. Long reach cutter needed: 12mm diameter, 70mm overall length.
  • Includes guide bush, hex key, spacing gauge, and storage tube. Patent No. GB2285410.
View full Description Technical data
american_expressapple_paydiners_clubdiscovergoogle_payklarnamaestromasterpaypalshopify_payunionpayvisa
klarna. Add an item to see installment options

You may also like

Trend Hinge Jig

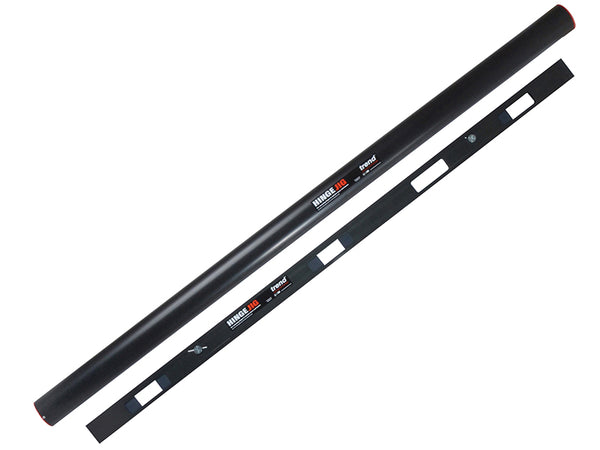

The Trend Hinge Jig is a portable template set designed for recessing hinges in wooden doors and frames. Used on-site and in joinery shops to increase productivity with excellent results, it includes four apertures to meet fire door requirements. There's no need for marking out in the conventional way; the hinge jig is quick and simple to set up, since the hinge itself is used as the pattern.

Clean and accurate recesses are achieved every time. Suitable for timber based doors and square butt hinges, it's used with a light duty router with a 1/4in collet, and requires a long reach router cutter of 12mm diameter and 70mm overall length. Angled position slots help prevent creep during use. Patent No. GB2285410.

Includes

  • 4x Apertures
  • 2x Bradawls
  • 1x 16mm Guide Bush
  • 1x T-Handle Hex Key
  • 1x 4mm Spacing Gauge
  • 1x Plastic Storage Tube

Specification

Hinge Sizes Possible:

  • Length Min/Max: 67-127mm (2.5/8-5in)
  • Width Min/Max: 9.5-35mm (3/8-1.3/8in)

Door Sizes Possible:

  • Height Min/Max: 1955-2032mm (6ft 5in - 6ft 10in)
  • Thickness Min/Max: 16-44mm

Explore the full range of Trend tools at Trend at MTN Shop UK.

Frequently Asked Questions

What router do I need to use with the Trend Hinge Jig?
A light duty router with a 1/4in collet, fitted with a long reach cutter of 12mm diameter and 70mm overall length. Using a cutter shorter than the required reach won't cut cleanly through the jig's apertures.
How does the Trend Hinge Jig avoid conventional marking out?
The hinge itself is used as the pattern, so instead of measuring and marking the recess by hand, you set the jig using the actual hinge, then rout directly through the aperture for a clean, accurate, repeatable recess every time.
What size hinges and doors does the Trend Hinge Jig work with?
It handles hinge lengths of 67-127mm and widths of 9.5-35mm, on doors between 1955-2032mm in height and 16-44mm thick. Check your hinge and door dimensions fall within these ranges before use.
Does the Trend Hinge Jig work on fire doors?
Yes. It includes four apertures specifically to meet fire door requirements, alongside standard timber doors and square butt hinges.
