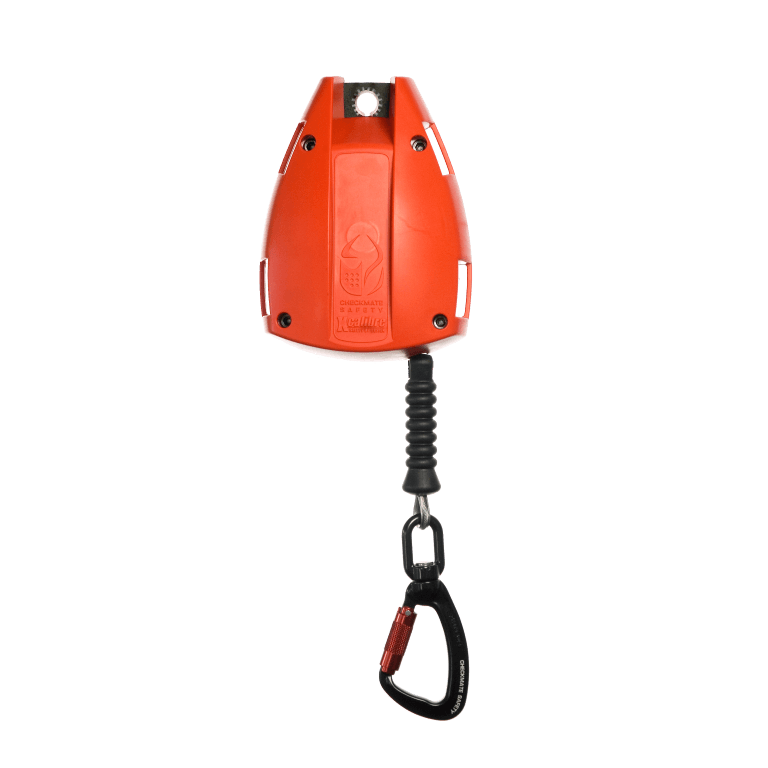

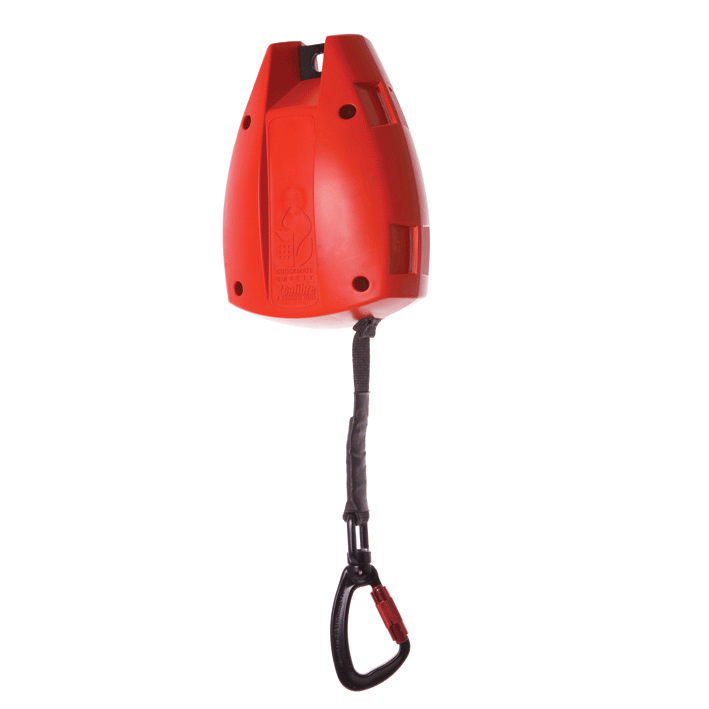

Guardian FABX1 Fall Arrest Block - Webbing/Rope (10m Max)

Product No. 10231

Regular price £363.78 excl. £72.76 VAT £436.54 incl. £72.76 VAT
STYLE
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paydiners_clubdiscovergoogle_paymaestromasterpaypalshopify_payunionpayvisa
Product details

The FABX1 is available with galvanized or stainless steel cable, or rope/webbing made with Dyneema®. Up to 10 meters (33ft) in length the FABX1 offers lightweight handling, excellent serviceability, and exceptional performance.



FEATURES

  • Top Connector - 11mm alloy twist lock karabiner approved to EN362 & rated to 24kN (EN ONLY) or Steel triple lock approved to ANSI Z359.12 & rated to 52kN
  • Galvanised Steel Wire Rope (FABX1-10C) - 4.50mm dia., 10m length, 4.1kg weights, 19 x 7 construction, minimum breaking load 15kN,
  • Stainless Steel Wire Rope (FABX1-10CS) - 5mm dia., 10m length, 4.3kg weights, 7 x 19 construction, minimum breaking load 15kN
  • Webbing made with Dyneema® (FABX1-8W) - 20mm x 1.4mm, 8m length, 3.5kg weights, minimum breaking load 22kN
  • Fibre Rope made with Dyneema® (FABX1-10F) - 5mm dia., 10m length, 3.5kg weights, minimum breaking load 27kN
  • Capacity - 8-10m (26-33ft)
  • Maximum Arresting force - Wire rope =4.4kN(nom) Webbing = 3.3kN(nom), Rope= 4.2kN(nom)
  • Total Arrest distance - Max 2.0m (EN) / 54” (ANSI)
  • User Weight - 136kg maximum (300lbs)

SPECIFICATIONS

  • External Housings - PC/ABS High strength and rigidity UV stabilized
  • Drum - Polyamide 6 Glass Filled
  • Chassis - Hot Rolled Steel, Zinc plated black
  • Pawl Plate & Ratchet - Al. Alloy T6 Hard anodized
  • Pawls & Spindles - Stainless steel, hardened
  • Bearing Plates - Polyamide with PTFE Polytetrafluoroethylene
  • Shaft - Al. Alloy T6 Hard anodized
  • All Fixings - Stainless steel
  • Swivel Hook - AL. Alloy, Rated to 28kN with ANSI gate rating (EN/ANSI)
  • Standards - EN 360, AS/NZS 1891.3.1997 (EN), ANSI Z359.14:2012 Class B, OSHA 1910 &1926
