Doughty Twenty Clamp - TÜV Approved
Doughty Twenty Clamp - TÜV Approved £12.26

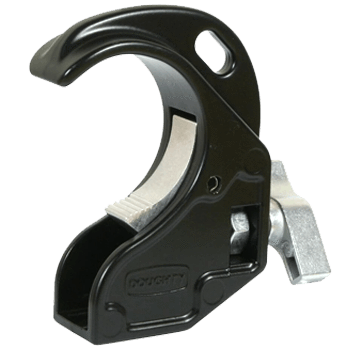

  • Doughty Twenty Clamp T58400 (TÜV Approved). Supplied by MTN Shop EU

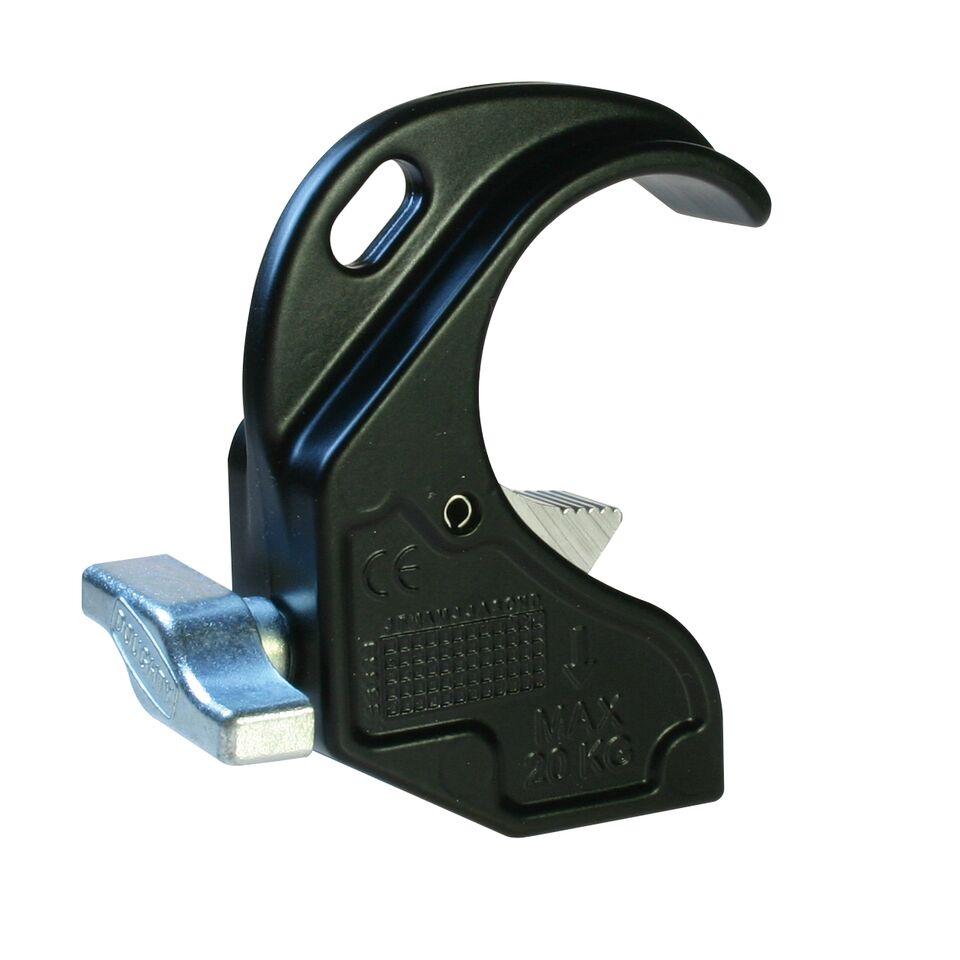

  • Doughty Twenty Clamp T58400 (TÜV Approved). Supplied by MTN Shop EU - imagen 2

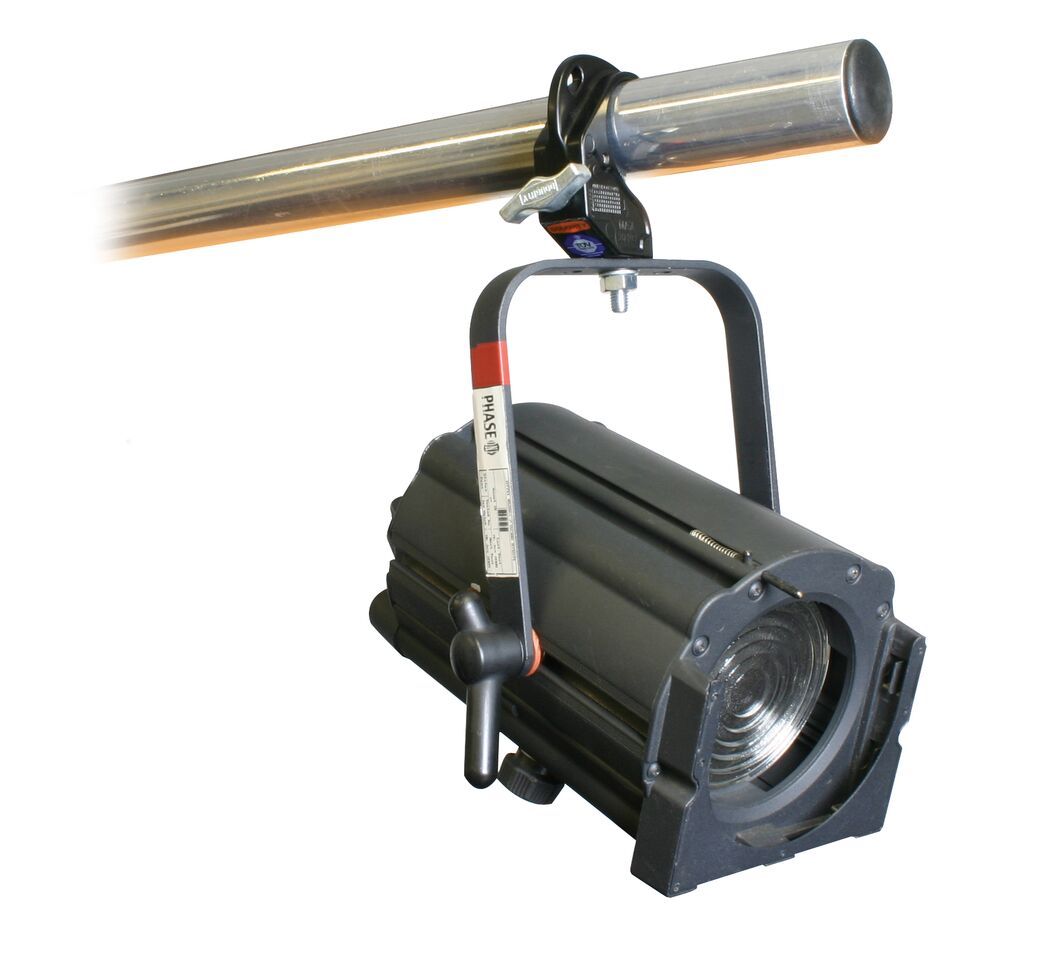

  • Doughty T58400 Twenty Clamp (TÜV Approved). Supplied by MTN Shop EU - imagen 3

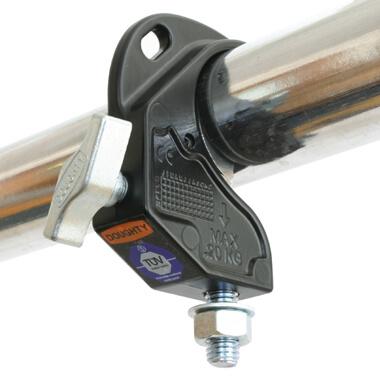

  • Doughty T58400 Twenty Clamp - imagen 4
  • Doughty Twenty Clamp (TÜV Approved). Supplied by MTN Shop EU - imagen 5

Doughty Twenty Clamp - TÜV Approved

Doughty Engineering |
SKU: T58400
£14.71incl. VAT

Incl. VAT. Shipping calculated at checkout.

In stock
Shipping 3–7 days
Minimum order value of £45 Minimum order value of £45 is required to place an order for all Doughty products. 1 Year Warranty
  • Light Damage. Protects your truss from damage - designed to eliminate issues caused by steel hook clamps.
  • Easy Securing. Fast setup with only two turns - compatible with tubes between 48mm and 51mm diameter.
  • TÜV Approved Safety. Peace of mind with verified performance - meets strict safety standards for lighting applications.
  • Compact Design. Sleek and space-efficient for professional use - ideal for touring and live events.
  • High Load Capacity. Supports up to 20kg for reliable rigging - ensures stability during demanding productions.
View full Description Technical data
american_expressapple_paydiners_clubdiscovergoogle_payklarnamaestromasterpaypalshopify_payunionpayvisa
klarna. Add an item to see installment options

You may also like

Doughty Twenty Clamp - TÜV Approved

Manufactured from pressure die-cast aluminium, this Doughty Clamp has been designed to eliminate truss damage usually associated with steel hook clamps.

This stylish compact clamp has a WLL of 20kg and can be secured to tubes between 48mm and 51mm diameter with ONLY two turns of the Doughty knob.

Since its launch, Doughty T58400 Twenty Clamp has received an overwhelming welcome from end-users and distributors alike. In 2018, Doughty Fifty Clamp with a safe working load of 50 kg was launched after Twenty clamp's success, providing the solution to more challenging lighting tasks.

As with all major Doughty products, Doughty Twenty Clamp carries full CE marking and TÜV approval. For any other inquiries, please contact us via chat.

Spec Sheet - User Manual - Press Release: ETnows & LSI

Specifications :

Tube Diameter 48mm-51mm
SWL 20 KG
Width 28mm
Overall Height 100mm
Fixing M10 / M12 Captive Bolt and Nut (M10 supplied)
Weight 0.28 KG
Material Aluminium
Finish Powder Painted


Doughty Clamp

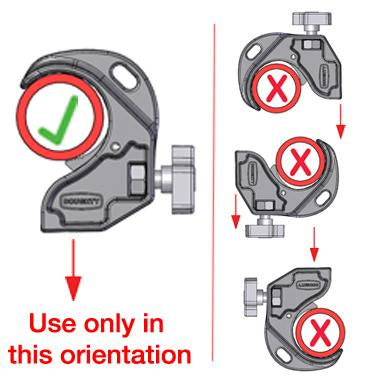

Note: This product is Design Registered. The Doughty T58400 twenty clamp requires assembly before use. Please read the user manual carefully
