Doughty Eye Clamp: 48-51mm Trigger Clamp
£28.59
Doughty Eye Clamp: 48-51mm Trigger Clamp
£34.31incl. VAT
Incl. VAT. Shipping calculated at checkout.
In stock
Shipping 3–7 days
Minimum order value of £45
Minimum order value of £45 is required to place an order for all Doughty products.
1 Year Warranty
Black:
Aluminium
- Effortless Operation. One-person hang capability for heavy luminaires - unique trigger closure adjusts under load for safety.
- Lightweight Strength. High tensile aluminium construction ensures robust performance - safe working load of 200kg for confidence in live events.
- Versatile Compatibility. Designed for 48mm to 51mm tubes, making it adaptable - perfect for various rigging applications in theatre and film.
- Easy Positioning. Large Easy-grip handle allows for secure locking after adjustments - essential for quick setups and changes in fast-paced environments.
- Durable Finish. Available in two finishes to suit your equipment aesthetic - enhances both functionality and appearance for professional use.
klarna.
Add an item to see installment options

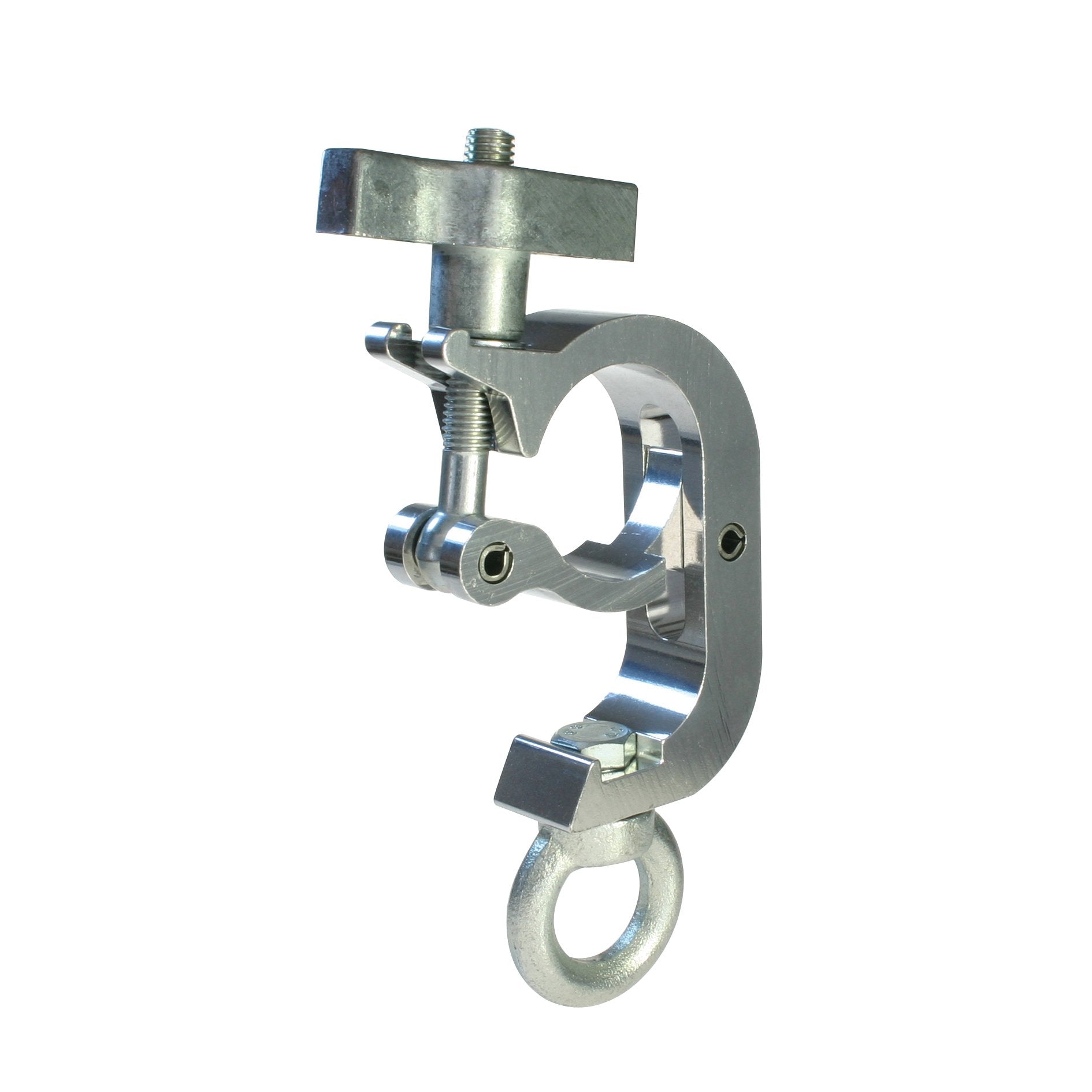

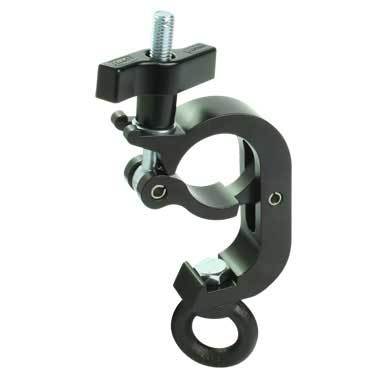

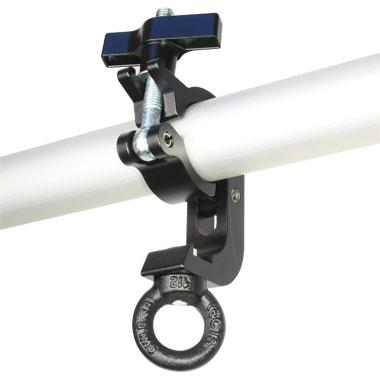

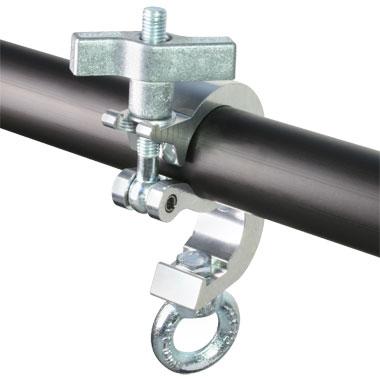

48-51mm Trigger Eye Clamp
The Trigger Eye Clamp is supplied fitted with an Eyenut with 30mm diameter, making it ideal for suspending wire hung loads while attaching to a tube.
This Doughty Clamp is also designed to allow one person to hang heavy luminaires and scanners. The weight of the object being hung becomes its own safety factor by automatically closing the trigger and the bottom half of the clamp.
This unique feature allows the luminaires to be easily positioned and securely ‘locked off’ using the large Easy-grip handle.
Constructed from high tensile aluminium extrusion, the clamp is lightweight but strong, with a safe working load of 200kg. It also comes with two finishes.
For any inquiries, please contact us via chat.

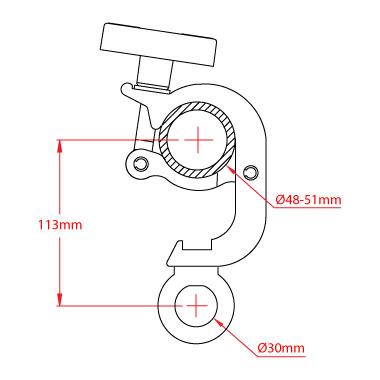

Specifications :
- SWL: 200 Kg
- Tube Diameters: 48mm to 51mm
- Width: 30mm
- Fixings: M12 Eye Nut with 30mm diameter
- Weight: 0.71 Kg
- Material: High tensile aluminium
- Finish: Polished aluminium or black powder-coated
Other Trigger Clamps :
- No fixing or with a wing nut & M12 bolt fixing
- With an eye for hanging (current product)
- With a 16mm lighting pin
- With a 19mm spigot
- With a 29mm receiver
- With a half connector
- Swivel coupler
