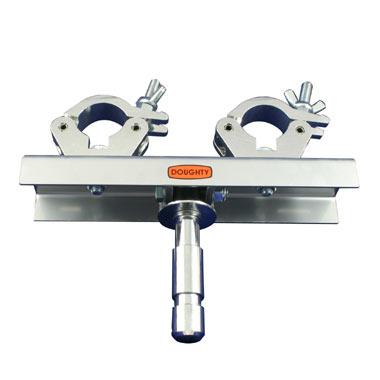

Doughty Swivel Truss Adapter

 Swivel Truss Adapter - Doughty Engineering

The Truss Adaptors enable triangular and square truss sections to be mounted to any of the Doughty winch stand range shown in the image. This system provides a safe and secure means to lift truss sections into place.

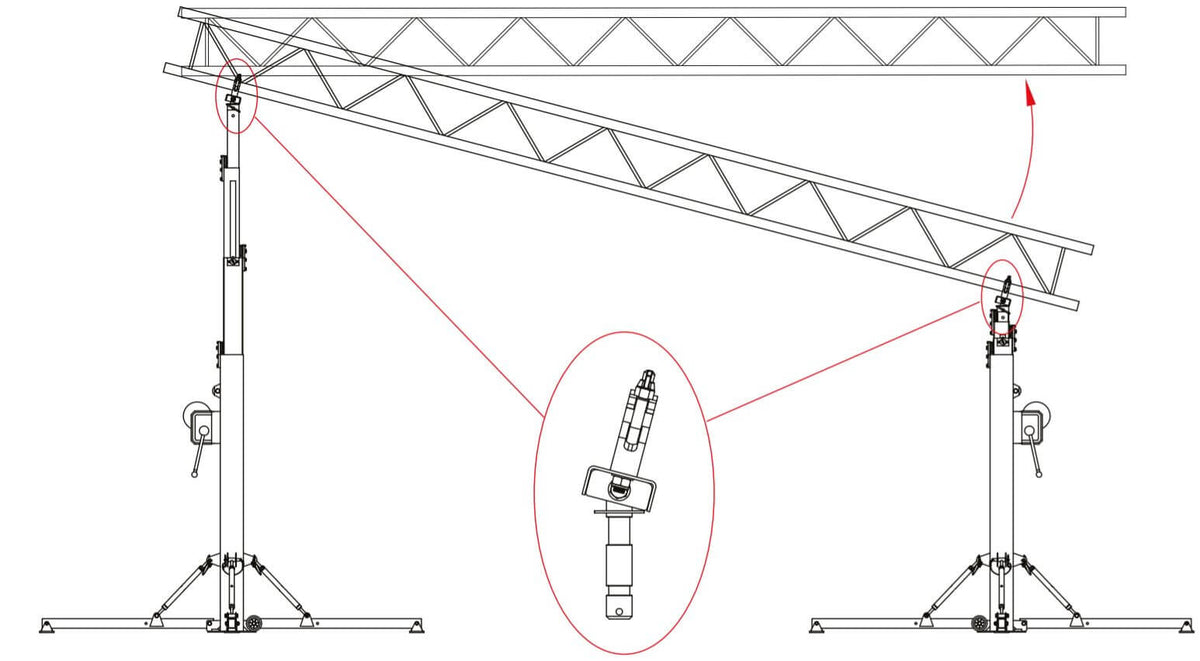

The Swivel Truss Plate allows one person to rig a truss between two winch stands. Each stand can be raised individually until the required height is achieved. Standard size and large size are available. For any inquiries, please contact us via chat.

Features :

• Suitable for all triangular & square truss sections.
• Enables one person to rig a truss between two stands.

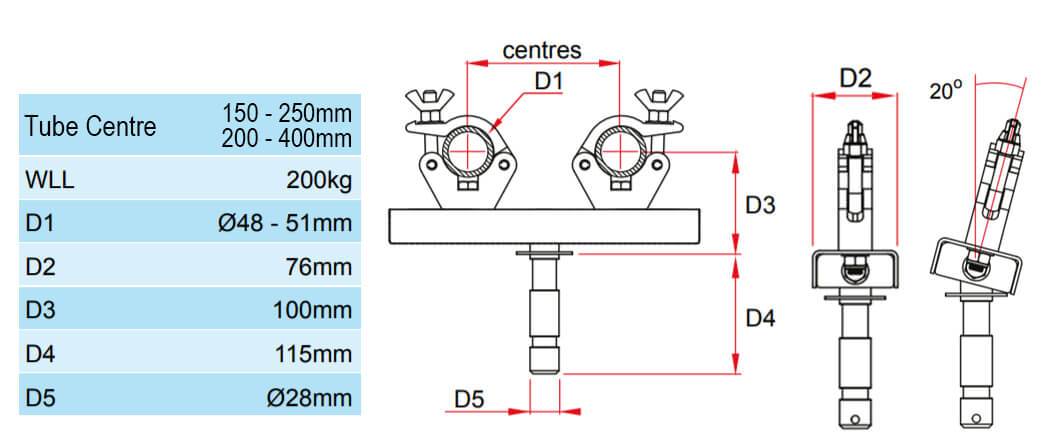

Specifications :

• SWL: 200 Kg
• Tube Diameters: 48mm to 51mm
• Tube Centres: 150 - 250mm (Standard Size) & 200 - 400mm (Large Size)
• Width: 76mm
• Weight: 2.75 Kg
• Fixing: 28mm diameter Spigot with 115mm Length
• Material: High tensile 6082-T6 aluminum couplers
• Finish: High-quality silver powder coated
