Doughty Lightweight Quick Trigger Clamp
Doughty Lightweight Quick Trigger Clamp £20.94
  • Doughty Lightweight Quick Trigger Clamp
  • Doughty Lightweight Quick Trigger Clamp - imagen 2
  • Doughty Lightweight Quick Trigger Clamp - imagen 3

Doughty Lightweight Quick Trigger Clamp

Doughty Engineering |
SKU: IP58650
£25.13incl. VAT

Incl. VAT. Shipping calculated at checkout.

In stock
Shipping 3–7 days
Minimum order value of £45 Minimum order value of £45 is required to place an order for all Doughty products. 1 Year Warranty
  • All-Weather Durability. Designed for both indoor and outdoor rigging - made with high-quality 316 stainless steel and AW6082 T6 aluminium.
  • Secure Rigging Solution. Ensures mission-critical safety for moving heads - with a robust working load limit of 50kg.
  • Quick Trigger Mechanism. Simplifies setup and adjustments in fast-paced environments - featuring a high tensile extruded aluminium design.
  • TÜV Approved Reliability. Guaranteed safety and performance standards - a trusted choice for professional truss applications.
View full Description Technical data
american_expressapple_paydiners_clubdiscovergoogle_payklarnamaestromasterpaypalshopify_payunionpayvisa
klarna. Add an item to see installment options

You may also like

Doughty Lightweight Quick Trigger Clamp

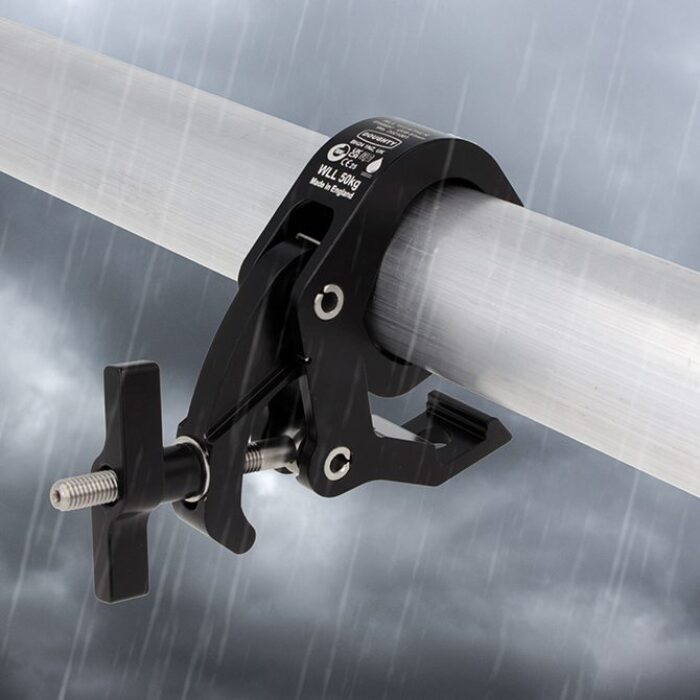

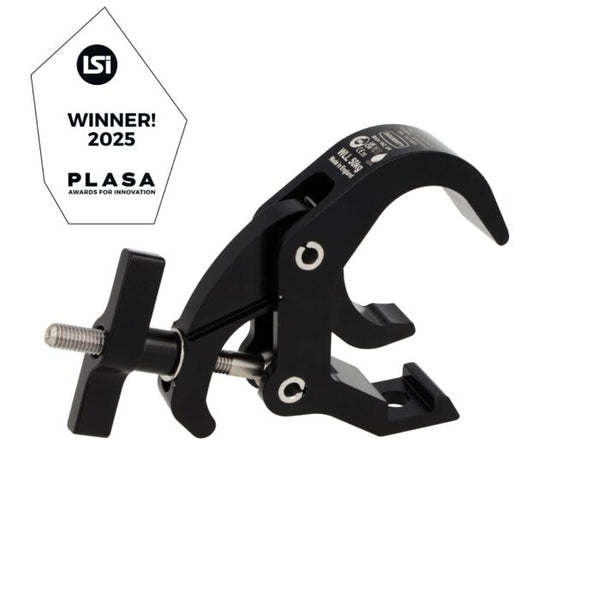

The Doughty Lightweight Quick Trigger Clamp is a durable, all-weather solution designed for secure and efficient rigging. Made from high-quality 316 stainless steel and AW6082 T6 aluminium, it offers reliable performance for outdoor events and professional truss applications.

Key Features:doughty-engineering

  • Part of the new All Weather clamp range
  • Manufactured with 316 stainless steel and AW6082 T6 grade parts
  • High tensile extruded aluminium quick trigger clamp
  • Suitable for 38mm to 51mm diameter tubes
  • Ideal for hanging moving heads on trussing without damaging cords

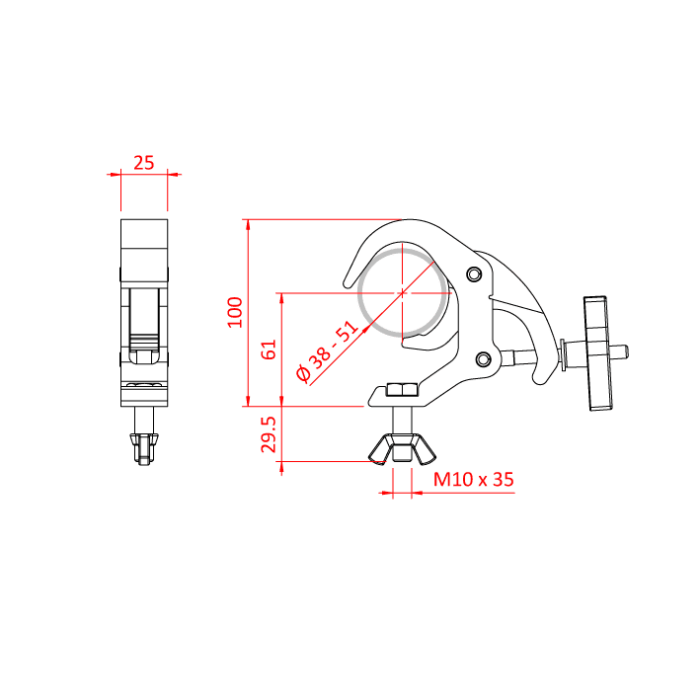

Specifications:

  • Working Load Limit (WLL): 50Kg
  • Width: 25mm
  • Slotted to hold captive an M10 nut or bolt head
  • Supplied with an A4 grade stainless steel M10 X 35 bolt and wing nut
  • Available in powder coated black

References:

  • TÜV APPROVED
  • Ideal for outdoor events
  • Compatible with 38mm to 51mm diameter tubes
