Doughty 3 Position Tank Trap (Lighting Truss Base Plate)


✦ Free shipping over £200(Exclusions may apply)
✦ No customs charges
✦ BREXIT-proof shipping: 5-7 days as standard
✦ If your order isn't right ➜Get a return label

Out of Stock until January/February 2022

Doughty 3 Position Tank Trap - Highly Versatile Lighting Truss Base Plate

Award-winning Boom Base
The 3 position Doughty Tank Trap was awarded the ABTT Engineering Product of the Year Award in 2017. Its great flexibility allows you to build the rigging everywhere, even near an obstruction, making this boom base favourable in the industry since the launch.

To Support 3 Poles for Suspending Lanterns
It is a multipurpose floor plate to suit and secure a 48mm diameter barrel, pole or truss vertically. Up to three barrels can be installed onto one boom base via the detachable receivers in the centre, at the edge or in the corner of the plate. The barrel(s) can then be used to suspend loads. These loads can be, but not limited to, lighting fixtures, video projectors, sound systems, and set pieces. This tank trap can be used as a standalone system or as a part of a larger installation.

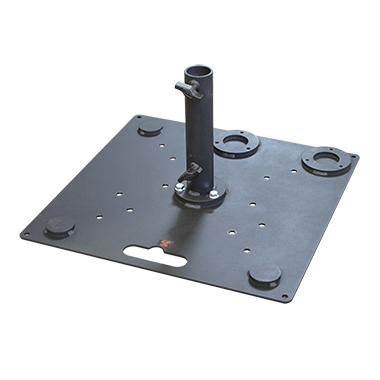

 Doughty Tank Trap 3 Position Boom Base

To Support Various Sizes of Truss for Suspending
With the receiver removed the plate may be inverted and used as a base plate to suit various sizes of the truss. It does not include truss connectors or fixings to mount truss to the plate. Broadly used in the entertainment industry in places such as theatres, event venues, museums etc. The lighting truss base plate can be easily transported and stored by Tank Trap Dolly. For any inquiries, please contact us via chat.

Spec Sheet & User Manual - Doughty Tank Trap Blog

Features & Benefits:

  • An Award-winning Boom Base recognized by industry peers
  • Highly Versatile: With 3 Position Doughty Tank Traps, you don't need to buy different boom bases to suit your setup, saving your money and time.
    - Support up to 3 barrels that are perfectly used to suspend loads, e.g. lighting fixtures, video projectors, sound systems, and set pieces
    - Support various sizes of truss for suspending
  • Used individually or as part of a larger installation suitable for almost every setup
  • Compact stacking for easy transport and storage.

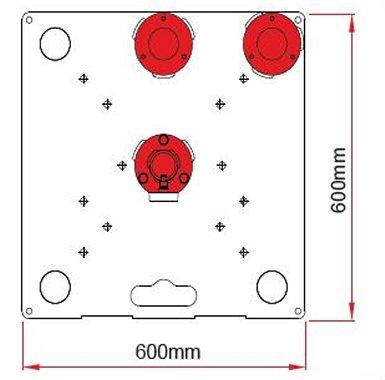

  • Boom Base Dimension: 600mm x 600mm
  • Receiver with 2 knobs:
    - Securely fits 48mm diameter aluminium barrel or galvanized scaffold pole by tightening 2 knobs [Hand-tighten Only].
    - 3 receiver positions are available, indicated as red in the product image.
    (Note: Tank traps are supplied with one barrel receiver. Extra receivers can be purchased from us)
  • Truss Fixings: 12 x 13.5mm diameter holes on the plate for truss mounting
    (Note: When used as a truss base-plate, the plate has to be inverted)

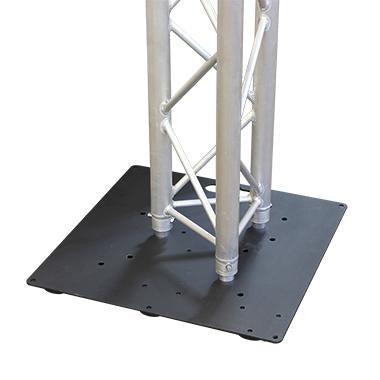

    Doughty 3 Position Tank Trap with Truss Mounting
