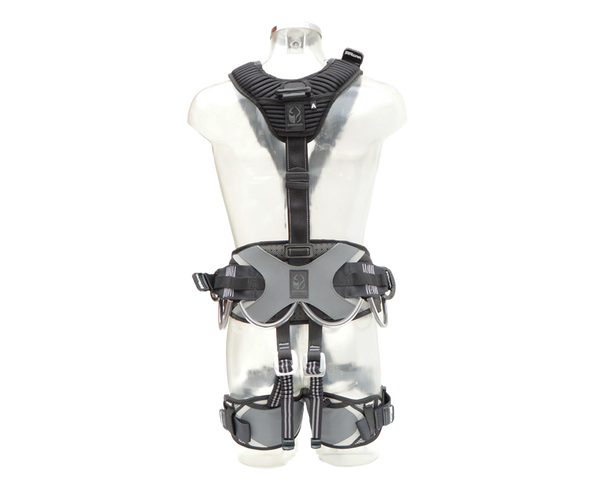

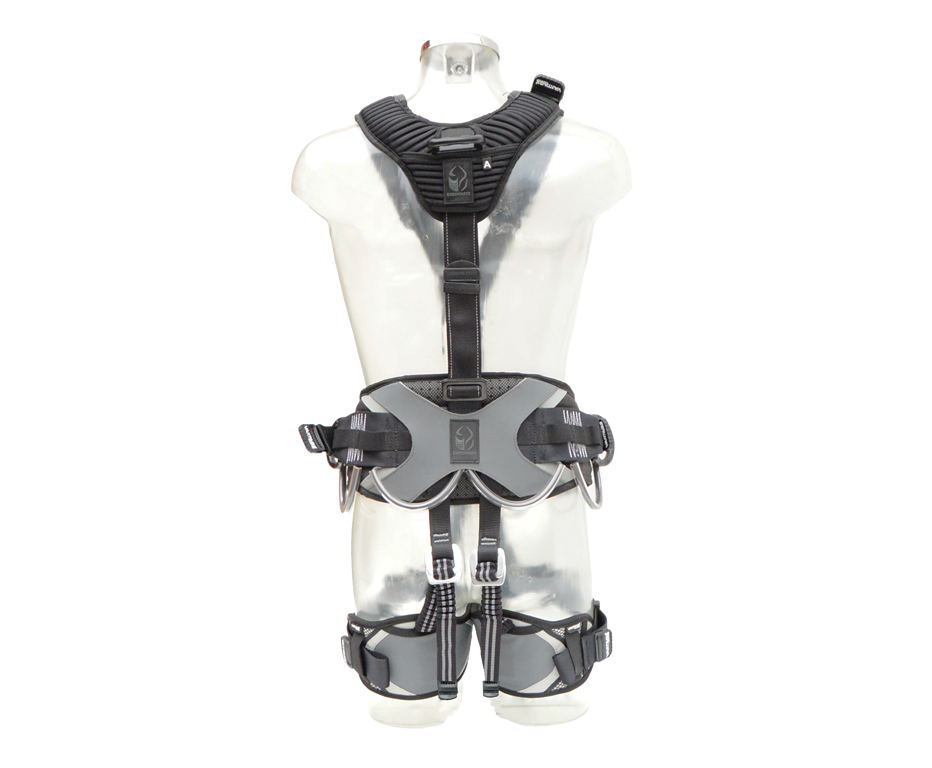

The PBH05 harness is Checkmate’s premium Rope Access harness designed for suspended work tasks.
The PBH05 is designed to support the body and distribute the forces to prevent serious injury and keep the worker in a safe position ready for rescue in the event of a fall. Certified fall arrest points are clearly marked with an A, the rear “D” should always be your primary anchorage, although front “D” connection is permitted for fall arrest but is primarily for work positioning. Side “D” are for work positioning only. The front suspension “D” is to be used for suspended work and when used as a sit harness.
For fall arrest the PBH05 must only be used in conjunction with an energy absorber or load limiting device with a maximum impact force 6kN. When used for fall arrest a predetermined rescue plan must be a part of your safe system of work.
SAFETY HARNESS PARTS:
ATTACHMENT POINT - Upper connectivity via dorsal and sternum with ventral and lateral connectivity at the waist.
RAPID DON BUCKLES - Optional click lock buckles for quick and simple donning and removal of harness.
CAM BUCKLE ADJUSTMENT - Optional cam buckles make harness adjustment very quick and simple.
NEW WAIST BELT & LEG PADS - New waist belt and leg pads provide support when suspended or work positioning, and includes multiple attachments and tool loops.

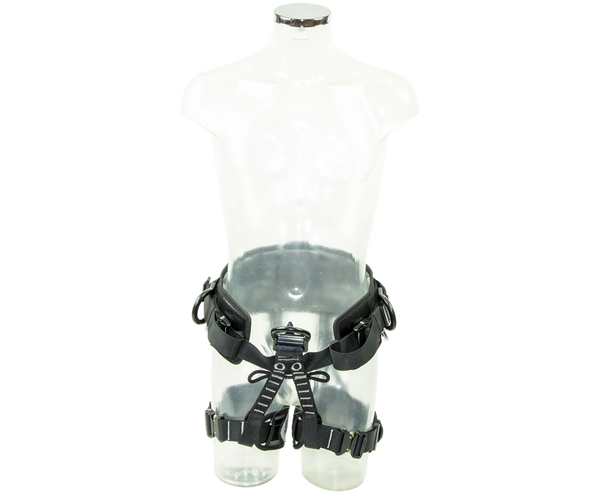

SIT HARNESS - The shoulder strap can be removed from the harness so that the lower assembly can be used as a sit harness.
NECK PROTECTOR - Leather patch sewn onto the inside edge of the shoulder yoke for added comfort.
SHOULDER YOKE - New wider Thermo Formed Airtex inner layer with Nylon spreader bar.
- Recommended minimum anchor strength – 12kN.
- Rear D attachment point (excluding ‘A’ models)
- Sternum and Ventral attachment points for abseil
- Waist Belt for work positioning
- Carbon Steel, Black Powder Coated
- Click Lock Buckles and Cam buckles on RD
- Square links on standard (Non RD)
- Polyester Webbing
- Water Repellent & UV Resistant
- Shoulder Yoke - Thermo Formed Airtex
- Belt and Leg Pads
User Weight - 150kg Maximum [Including tools and equipment]
- EN 361, EN 358, EN 813
- ANSI Z359.11:2014
