• Altair WBS-200HD Base Station back view of dials and antennas

WBS200HD Wireless Intercom Base Station

Product No. 467-8815

Regular price £1,595.09 excl. £319.02 VAT £1,914.11 incl. £319.02 VAT
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paydiners_clubdiscovergoogle_paymaestromasterpaypalshopify_payunionpayvisa
Product details

Altair  Wireless Intercom Base Station



The Altair WBS-202HD base station offers high definition audio for use with WBP200HD/210HD Beltpacks  The station features two antennas and an intercom and facilitates wireless communications. The unit can connect with up to 4 wireless single channel beltpacks, plus up to 20 wired intercom beltpacks.

The new series of wireless intercom stations offers the same features and special functions that our clients love and that turned the WB-200 Series into a huge success, while notably improving the audio quality in the intercom line.

This new base station replaces its predecessor (WBS-200), keeping the compatibility with it and with any ALTAIR wireless beltpack.



Item Code: 467-8815

Part Number: 5034






FEATURES & BENEFITS:

Dual pre-amble diversity antenna system detects and selects the higher radio signal, ensuring the best possible range and minimizing dropouts. When used along with any ALTAIR "HD" wireless beltpack the station will deliver an improved wideband audio quality.

- When more beltpacks are needed the unit can be used in "slave" mode by wiring base stations acrross the working area, expanding the number of wireless users in a cellular arrangement.

Digital encryption process ensures the privacy of the communication line.

- The base unit can be powered externally from another intercom base station or from a 12 volts battery.

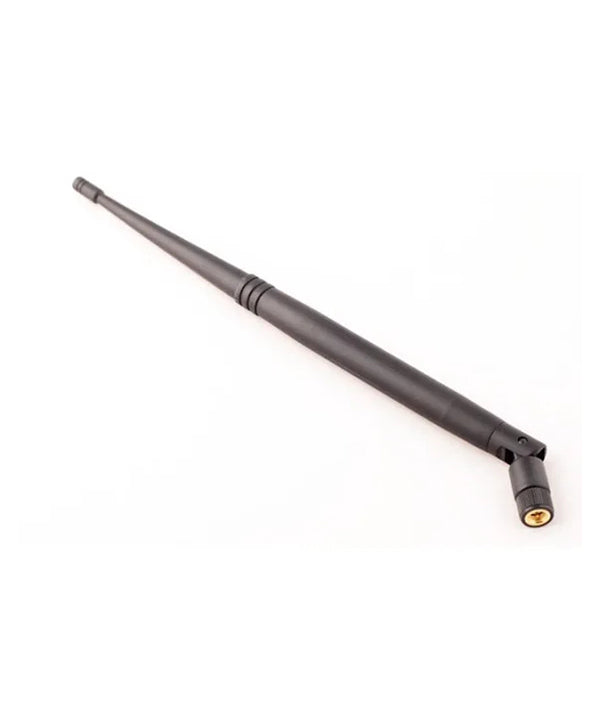

- Two detachable omni antennas are provided with the unit. External high gain directive antennas can be mounted when needed to increase the coverage area.


SPECIFICATIONS

• Channels: 1
• Brand: Altair
• Product Type: Comms Base Station
• Wired/Wireless: Wireless

RADIO

  • Frequency:1900 Mhz band
  • Modulation:GFSK/TDMA.
  • Transmit Power:22 dBm typically.
  • Receive Sensitivity:-92 dBm typically.
  • Number of beltpacks per base:1 to 4 units maximum in party, line full duplex conversation.

    AUDIO

    • Party line Channels:2 Channels: A and B selectable.
    • "Wideband" audio quality:100Hz - 7kHZ when used along with ALTAIR "HD" beltpacks.
    • Program Input:Line or Mic level selection.
    • Audio Out:Party line or Mic only selectable.
    • Stage Announce Out:Allows PA announces from mic base and from Manager beltpacks.
    • Headset type: Selectable, dynamic or electret.
    • Headset connectors:4 pin XLR male & 4 pin mini XLR.

    GENERAL

    • Power requirements:90 to 250 VAC / 50-60 Hz/ 10 Watts.
    • Dimensions/weight:482X150 mm, 1U HE / 3 Kg.
