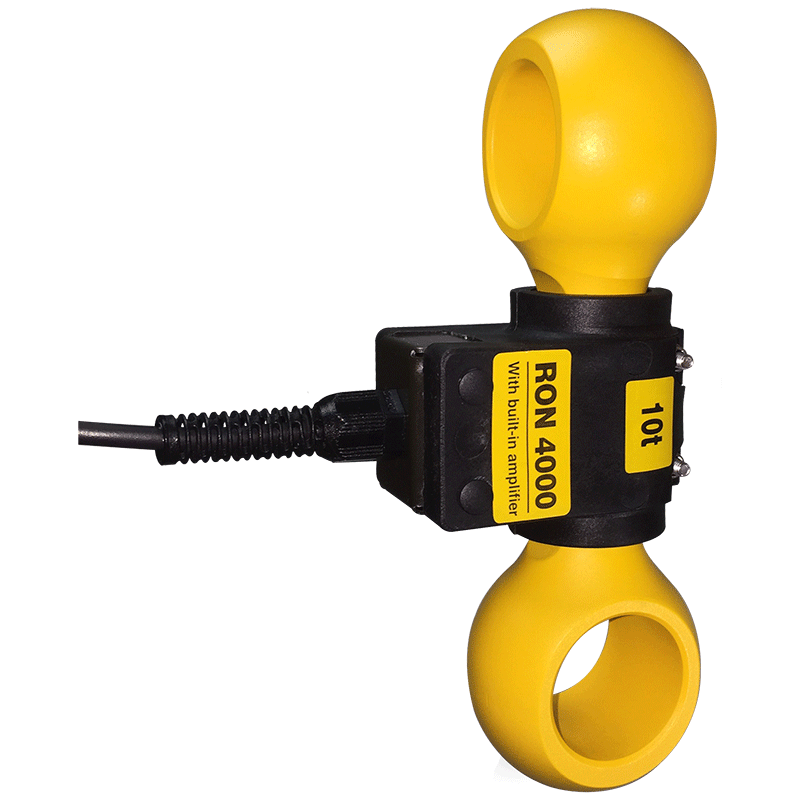

Ron Crane Scales™ Load Cell with Built-in Amplifier (4-20mA Output)
Ron Crane Scales™ Load Cell with Built-in Amplifier (4-20mA Output) £4,406.76
  • Ron Crane Scales™ Load Cell with Built-in Amplifier (4-20mA Output) – Ron Crane Scales™ Load Cell with Built-in Amplifier (4-20mA Output) – Now available at MTN Shop UK.
  • Ron Crane Scales™ Load Cell with Built-in Amplifier (4-20mA Output) – Ron Crane Scales™ Load Cell with Built-in Amplifier (4-20mA Output) – Now available at MTN Shop UK. - imagen 2

Ron Crane Scales™ Load Cell with Built-in Amplifier (4-20mA Output)

Eilon Engineering |
SKU: Ron4000CS005
£5,288.11incl. VAT

Incl. VAT. Shipping calculated at checkout.

In stock
Capacity: 0.5 Ton
american_expressapple_paydiners_clubdiscovergoogle_payklarnamaestromasterpaypalshopify_payunionpayvisa
klarna. Add an item to see installment options

You may also like

Ron Crane Scales™ Load Cell with Built-in Amplifier (4-20mA Output)

SPECIFICATIONS

  • Safety Factor: 5:1
  • Proof Load: 200% of capacity, certified (Up to a test force of 400t)
  • Cable Length: 3m/9.5'

FEATURES

  • Single Analog Output: 4-20mA
  • Designed for use with PLCs
  • Small and Lightweight
  • Minimum Headroom Loss
  • Fatigue rated for longevity and safety
  • 90° between shackle holes eliminates bending of the load cell, increasing accuracy and safety
  • Made from high quality aerospace steel
  • Linearity: 0.1% of full scale
  • IP65/NEMA4 environmental protection
  • Temperature Range: -15°F to +175°F (-25°C to +80°C)
  • Calibration: Supplied with approximate calibration (final calibration is performed by customer after connecting load cell to measuring/control system)
  • Zero Load: 4 mA ± 0.2mA
  • Full Load: 20mA ± 1mA
  • Maximum Input Voltage: 36V
  • Maximum Input Current: 100mA
